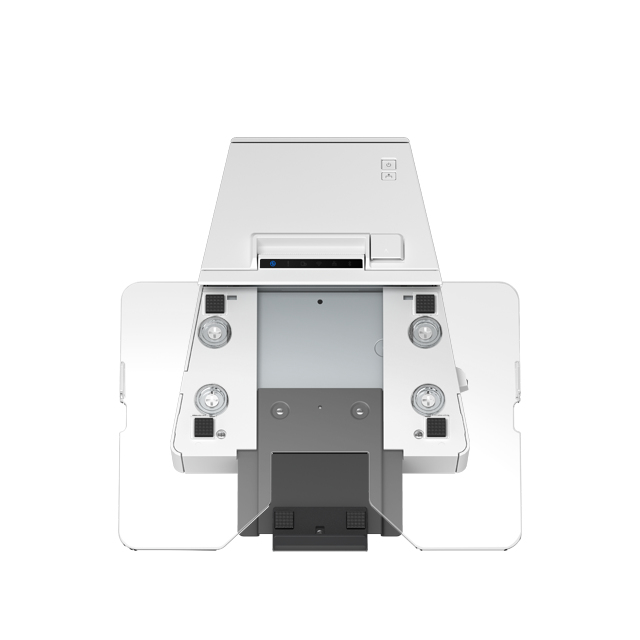

TM-M30II-SL (511)
Model TM-M30II-SL (511)Part no. C31CH63511EAN 8715946696614
54 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.9 kg
- ColourWhite
- Print technologyDirect thermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.9 kg
- Colour
- White
- Print technology
- Direct thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-M30II-SL (511)
- Part number
- C31CH63511
- EAN / UPC
- 8715946696614
- Also known as
- Epson TM-m30II-SL (511): USB + Ethernet + BT + NES + Lightning + SD, White, PS, EU
Specifications
54 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Print speed (receipt) | 250 mm/sec |
| Printing characters | Text, Graphic, Barcode |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 58 mm - 80 mm (Breite) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 4 |
| USB connector | USB Type-A / USB Type-B |
| Serial interface | No |
| Interface | Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0, USB 2.0-A (3x), Drawer kick-out, Micro SD Card Slot, Bluetooth |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 2.2 million cuts |
| Tablet charge & sync | Yes |
| Country of origin | Philippines |
| Mounting position | Vertical |
| Print head life | 150 km |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC adapter model | PS-180 |
| Power plug type | Type C |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 214 mm |
| Height | 255 mm |
| Weight | 2.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 392 mm |
| Package depth | 410 mm |
| Package height | 245 mm |
| Package weight | 5.04 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 48/57 |
Logistics data
| Specification | Value |
|---|---|
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84433210 |
| Products per pallet (UK) | 32 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Font styles | ANK |
| Box contents | AC cable, Cable fixation saddle, Main unit, PS-180, Paper spacer, Power switch cover, Quick Setup Guide, Roll paper, Setup guide, Warranty document |
| Lifetime | 17000000 lines |
Other features
| Specification | Value |
|---|---|
| Buffer size | 12 KB |
| Mean cycles between failures (MCBF) | 65000000 |
| Print head life | 150.000.000 Impulse |
