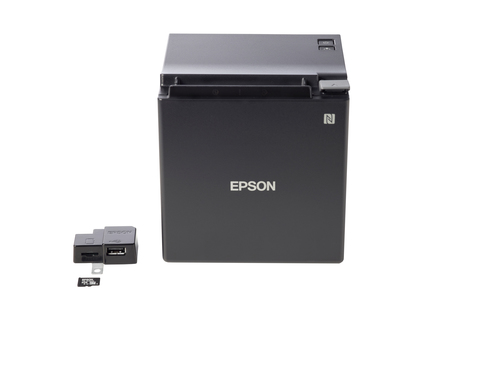

TM-M30F (121F0)
Model TM-M30F (121F0)Part no. C31CE95121F0EAN 8715946679921
47 specifications
- TypePOS printer
- Weight1.3 kg
- ColourWhite
- Print technologyDirect thermal
- Maximum roll diameter8.3 cm
- USB portYes
Overview
- Type
- POS printer
- Weight
- 1.3 kg
- Colour
- White
- Print technology
- Direct thermal
- Maximum roll diameter
- 8.3 cm
- USB port
- Yes
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-M30F (121F0)
- Part number
- C31CE95121F0
- EAN / UPC
- 8715946679921
- Also known as
- Epson TM-M30F (121F0) 203 x 203 DPI Direct thermal POS printer
Specifications
47 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 200 mm/sec |
| Print speed (receipt) | 200 mm/sec |
| Printing characters | Text, Graphic, Barcode |
| Character sets | ANK |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 58 mm - 80 mm (Breite) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Near Field Communication (NFC) | Yes |
| Standard interfaces | Ethernet, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Half-cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Country of origin | China |
| Mounting position | Horizontal/Vertical |
| Print head life | 100 km |
| Wall mountable | Yes |
| Built-in sensors details | Paper End Sensor, Papier-Sensor |
| Certification | BSI TR-03153 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power plug type | Type C |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 127 mm |
| Height | 127 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 235 mm |
| Package height | 230 mm |
| Package weight | 2.04 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 48/57 |
Technical details
| Specification | Value |
|---|---|
| Font styles | ANK |
| Lifetime | 15000000 lines |
Other features
| Specification | Value |
|---|---|
| Buffer size | 12 KB |
| Mean cycles between failures (MCBF) | 60000000 |
| Print head life | 100.000.000 Impulse |
