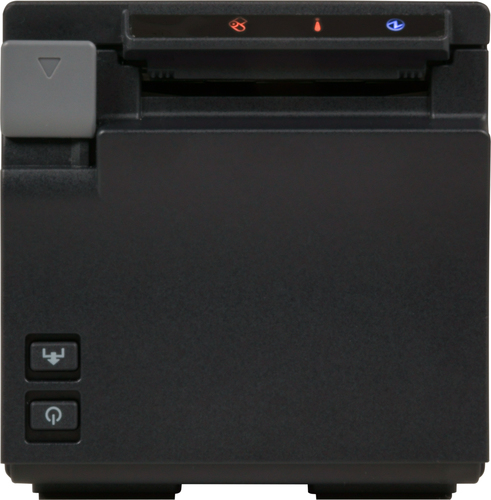

TM-m10 (122A0)
Model TM-m10 (122A0)Part no. C31CE74122A0EAN 8715946669960
41 specifications
- ConnectivityWired & Wireless
- TypePOS printer
- ColourBlack
- Print technologyThermal
- Maximum roll diameter6 cm
- Ethernet LANYes
Overview
- Connectivity
- Wired & Wireless
- Type
- POS printer
- Colour
- Black
- Print technology
- Thermal
- Maximum roll diameter
- 6 cm
- Ethernet LAN
- Yes
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-m10 (122A0)
- Part number
- C31CE74122A0
- EAN / UPC
- 8715946669960
- Also known as
- Epson TM-m10 (122A0) Ethernet, Black, PS, UK
Specifications
41 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 150 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 6 cm |
| Supported paper width | 58 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Near Field Communication (NFC) | Yes |
| Standard interfaces | Ethernet, NFC, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 1 million cuts |
| Country of origin | China |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 102 mm |
| Height | 102 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 197 mm |
| Package depth | 235 mm |
| Package height | 180 mm |
| Package weight | 1.57 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 160 pc(s) |
| Products per pallet layer | 32 pc(s) |
| Pallet gross weight | 0 g |
| Products per pallet (UK) | 240 pc(s) |
| Products per pallet layer (UK) | 48 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC cable, Roll paper, AC adapter, C1, Cable fixation saddle, Main unit, Power switch cover, Setup guide, Warranty document |
Other features
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
| Mean cycles between failures (MCBF) | 60000000 |
