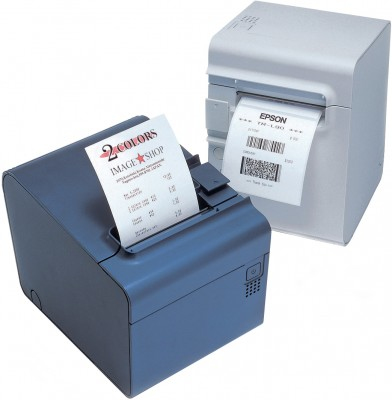

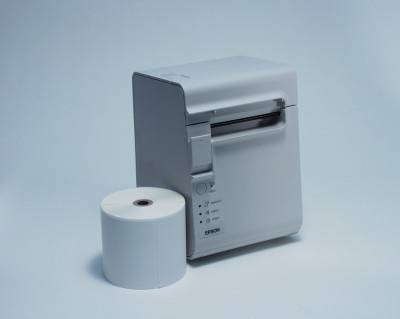

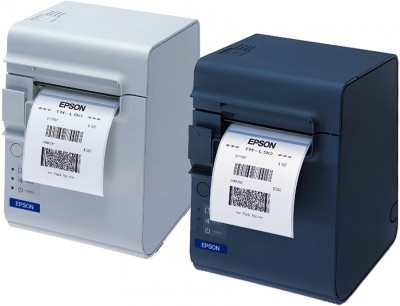

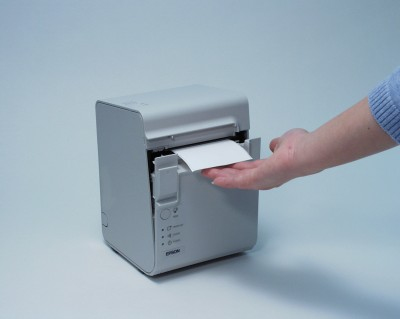

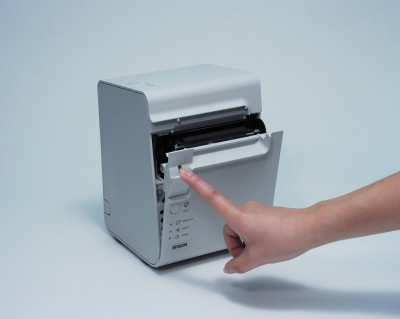

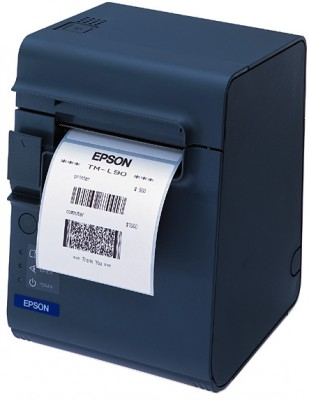

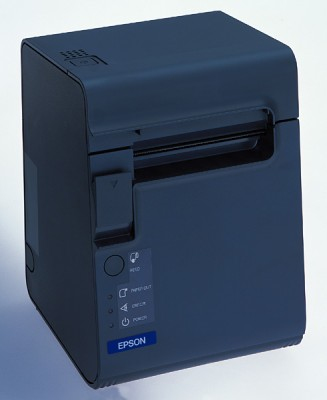

TM-L90 (022BB): USB, PS, EDG
Model TM-L90Part no. C31C412A8831EAN 5711045730740
44 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.9 kg
- ColourDark Grey
- Print technologyThermal
- Maximum printing width8 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.9 kg
- Colour
- Dark Grey
- Print technology
- Thermal
- Maximum printing width
- 8 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-L90
- Part numbers
- C31C412A8831, C31C412A8521, C31C412A8531, C31C412A8641, C31C412A8811, C31C412A8821 +18 more
- EAN / UPC
- 5711045730740, 8715946278438, 8715946099699, 8715946278421 +7 more
- Also known as
- Epson TM-L90 (022BB): USB, PS, EDG
Specifications
44 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 150 mm/sec |
| Character density | 22.6 cpi |
| Character size | 1.5 x 3 mm |

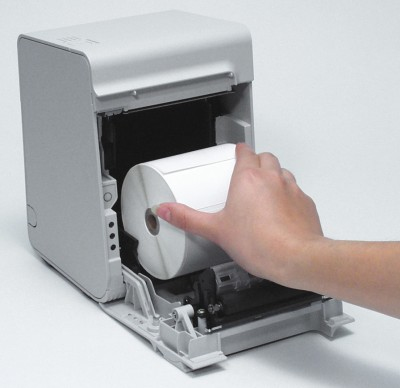

Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 8 cm |
| Maximum roll diameter | 9 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB connector | USB Type-B |
| Interface | Drawer kick-out, USB 2.0, Customer Display |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 53 dB |
| Mean time between failures (MTBF) | 360000 h |
| Country of origin | Japan |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 148 mm |
| Height | 203 mm |
| Weight | 1.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 257 mm |
| Package height | 241 mm |
| Package weight | 2.93 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 48 / 64 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 112 pc(s) |
| Products per pallet layer | 16 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.6 m |
| Products per pallet (UK) | 168 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.6 m |
Technical details
| Specification | Value |
|---|---|

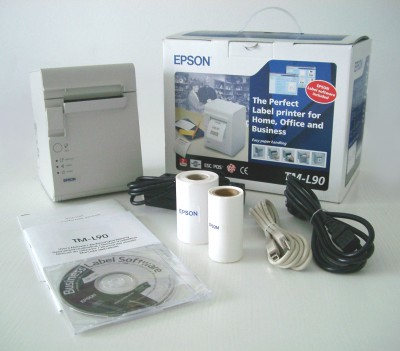

| Box contents | Label paper roll, Main unit, PS-180, Paper exit guide, Paper roll spacer, Power switch cover, User manual |
