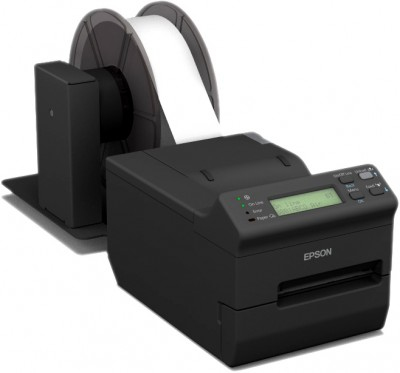

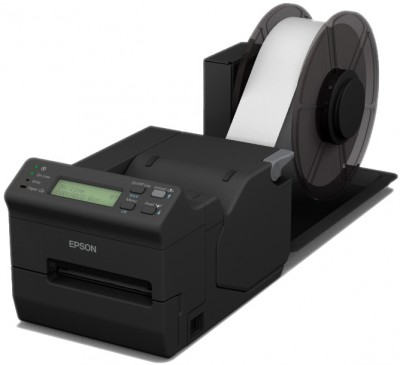

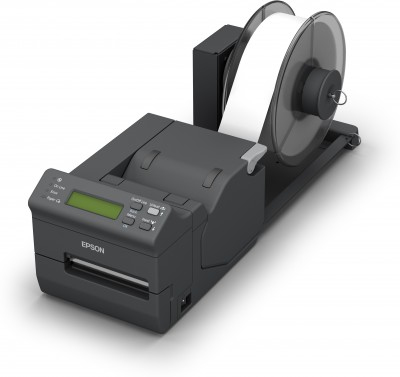

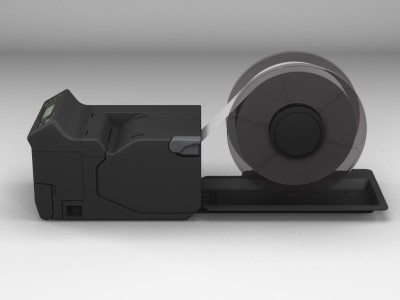

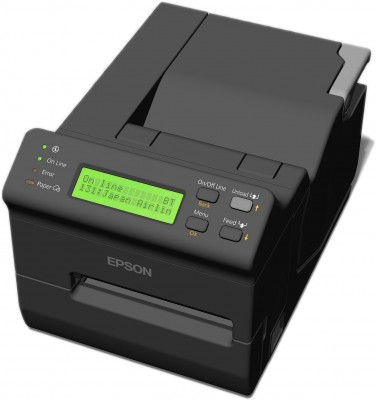

Epson TM-L500A (710): RFID, Combo, PS short, EDG, LCD
Model Epson TM-L500A (710): RFID, Combo, PS short, EDG, LCDPart no. C31CB49710EAN 8715946527444
41 specifications
- ConnectivityUSB 2.0, RS-232
- Weight2.8 kg
- ColourNo
- Print technologyThermal
- Sound pressure level (printing)57 dB
- Product colourDark Grey
Overview
- Connectivity
- USB 2.0, RS-232
- Weight
- 2.8 kg
- Colour
- No
- Print technology
- Thermal
- Sound pressure level (printing)
- 57 dB
- Product colour
- Dark Grey
- Brand
- Epson
- Category
- POS Printer
- Model
- Epson TM-L500A (710): RFID, Combo, PS short, EDG, LCD
- Part number
- C31CB49710
- EAN / UPC
- 8715946527444
Specifications
41 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0, RS-232 |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 57 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 0.1 million cuts |
| Country of origin | China |
| Mounting position | Horizontal |
| Print head life | 100 km |
| Built-in sensors details | Black Mark Sensor, Cover Open Sensor |
| Safety | TÜV, GOST-R |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Relative humidity | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 236 mm |
| Height | 147 mm |
| Weight | 2.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 244 mm |
| Package depth | 338 mm |
| Package height | 238 mm |
| Package weight | 3.98 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 72 pc(s) |
| Pallet gross width | 120 cm |
| Pallet gross height | 100 cm |
| Products per pallet (UK) | 96 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.68 m |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Technology | Thermal Line |
| Voltage | 24 V |
| Box contents | Main unit, PS-180, User manual |
| Paper size roll paper | 54.00 ± 0.50 (W) mm x dia 184.10 mm,<br>79.50 ± 0.50 (W) mm x dia 184.10 mm,<br>82.50 ± 0.50 (W) mm x dia 184.10 mm |
