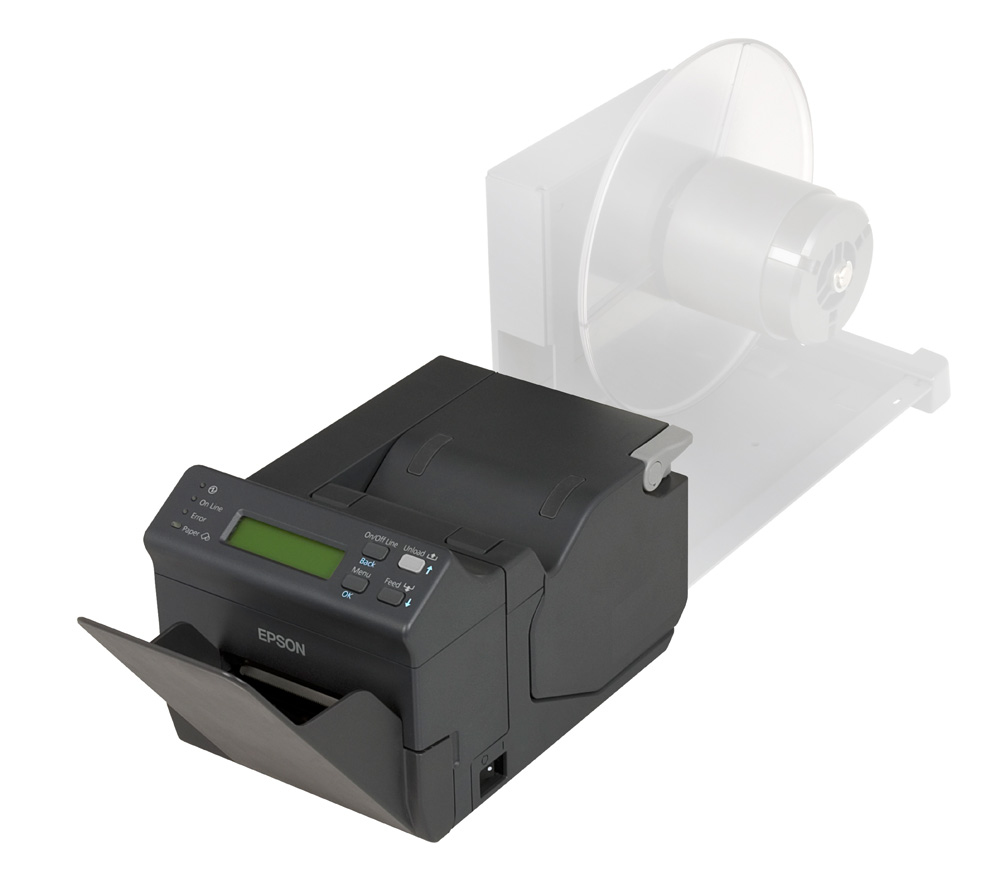

TM-L500A (107A2)
Model TM-L500A (107A2)Part no. C31CB49107A2EAN 8715946543215
50 specifications
- ConnectivityWired
- TypePOS printer
- Weight2.8 kg
- ColourNo
- Print technologyThermal
- Maximum roll diameter18.4 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 2.8 kg
- Colour
- No
- Print technology
- Thermal
- Maximum roll diameter
- 18.4 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-L500A (107A2)
- Part number
- C31CB49107A2
- EAN / UPC
- 8715946543215
- Also known as
- Epson TM-L500A (107A2): Combo, PS short, EDG, LCD, Tray - ARINC F/W
Specifications
50 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 18.4 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | USB 2.0, RS-232 |
| Standard interfaces | RS-232, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 57 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 0.1 million cuts |
| Mounting position | Horizontal |
| Print head life | 100 km |
| Built-in sensors details | Black Mark Sensor, Cover Open Sensor |
| Safety | TÜV, GOST-R |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 495 mm |
| Package height | 240 mm |
| Package weight | 4.02 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 36 pc(s) |
| Products per pallet layer | 6 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 153 cm |
| Products per pallet (UK) | 48 pc(s) |
| Products per pallet layer (UK) | 8 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 153 cm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Technology | Thermal Line |
| Voltage | 24 V |
| Box contents | Main unit, PS-180, User manual |
| Paper size roll paper | 54.00 ± 0.50 (W) mm x dia 184.10 mm,<br>79.50 ± 0.50 (W) mm x dia 184.10 mm,<br>82.50 ± 0.50 (W) mm x dia 184.10 mm |
Other features
| Specification | Value |
|---|---|
| Mean cycles between failures (MCBF) | 100000 |
