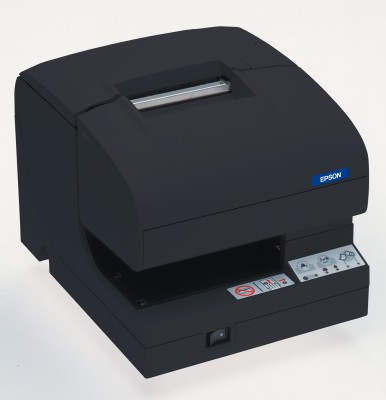

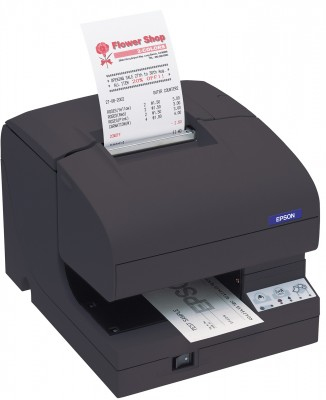

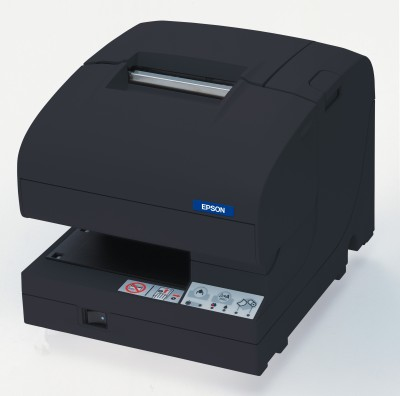

TM-J7000 (081): Serial, w/o PS, EDG, SJIC8(K), MICR
Model TM-J7000Part no. C31C487361EAN 8715946545509
67 specifications
- ConnectivityWired
- TypePOS printer
- Weight4.4 kg
- ColourDark Grey
- Print technologyDot matrix
- Supported paper width76, 40 / 53 mm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 4.4 kg
- Colour
- Dark Grey
- Print technology
- Dot matrix
- Supported paper width
- 76, 40 / 53 mm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-J7000
- Part numbers
- C31C487361, C31C487081, C31C487061, C31C489011, C31C487011, C31C489061
- EAN / UPC
- 8715946545509, 3540260028866, 8715946153865, 8715946153858 +3 more
- Also known as
- Epson TM-J7000 (081): Serial, w/o PS, EDG, SJIC8(K), MICR
Specifications
67 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 14.7 lps |
| Print speed | 43 mm/sec |
| Character density | 15 cpi |
| Character size | 1.41 x 3.38 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum paper size (slip) | 68 - 230 (W) x 68 - 297 (H), Min 68 - 152 |
| Supported paper width | 76, 40 / 53 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | RS-232, Drawer kick-out, Customer Display |
| Serial ports quantity | 1 |
| Standard interfaces | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, PDF417, UPC-A, UPC-E |
| Sound pressure level (printing) | 50 dB |
| Mean time between failures (MTBF) | 180000 h |
| Cutter | Yes |
| Autocutter durability | 1.5 million cuts |
| Built-in MICR | Yes |
| Country of origin | China |
| Mounting position | Horizontal |
| Built-in sensors details | Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Top of Form sensor, Bottom of Form sensor, Ink cartridge sensor, Ink near end sensor |
| Safety | TÜV |
| Certification | VCCI, FCC, CE, EMI, AS/NAS 3548 |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
| Power supply type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 4 - 40 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 237 mm |
| Height | 188 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 285 mm |
| Package depth | 382 mm |
| Package height | 305 mm |
| Package weight | 5.97 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 82.5mm (3.25"): 42/56, 76mm (3.00"): 40/53, 70mm (2.75"): 36/48, 58mm (2.25"): 30/40 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 40 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 169 cm |
| Products per pallet (UK) | 50 pc(s) |
| Products per pallet layer (UK) | 12 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 169 cm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Connector(s) | D.K.D. function (2 drivers), Customer display port |
| Technology | Inkjet |
| Voltage | 24 V |
| Box contents | Individual Ink Cartridges, Main unit, Power switch cover, Roll paper, User manual |
| Changeable interface | Yes |
| Ink life | 15000000 characters |
| Paper size roll paper | 82.50 ± 0.50 (W) mm x dia 83.00 mm,<br>76.00 ± 0.50 (W) mm x dia 863.00 mm,<br>69.50 ± 0.50 (W) mm x dia 83.00 mm,<br>57.50 ± 0.50 (W) mm x dia 83.00 mm |
| Power consumption | Standby:0.07 A, Mean:0.5 A |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 195 x 237 x 188 mm |
| Column capacity (slip) | 48 cps / 64 cps |
