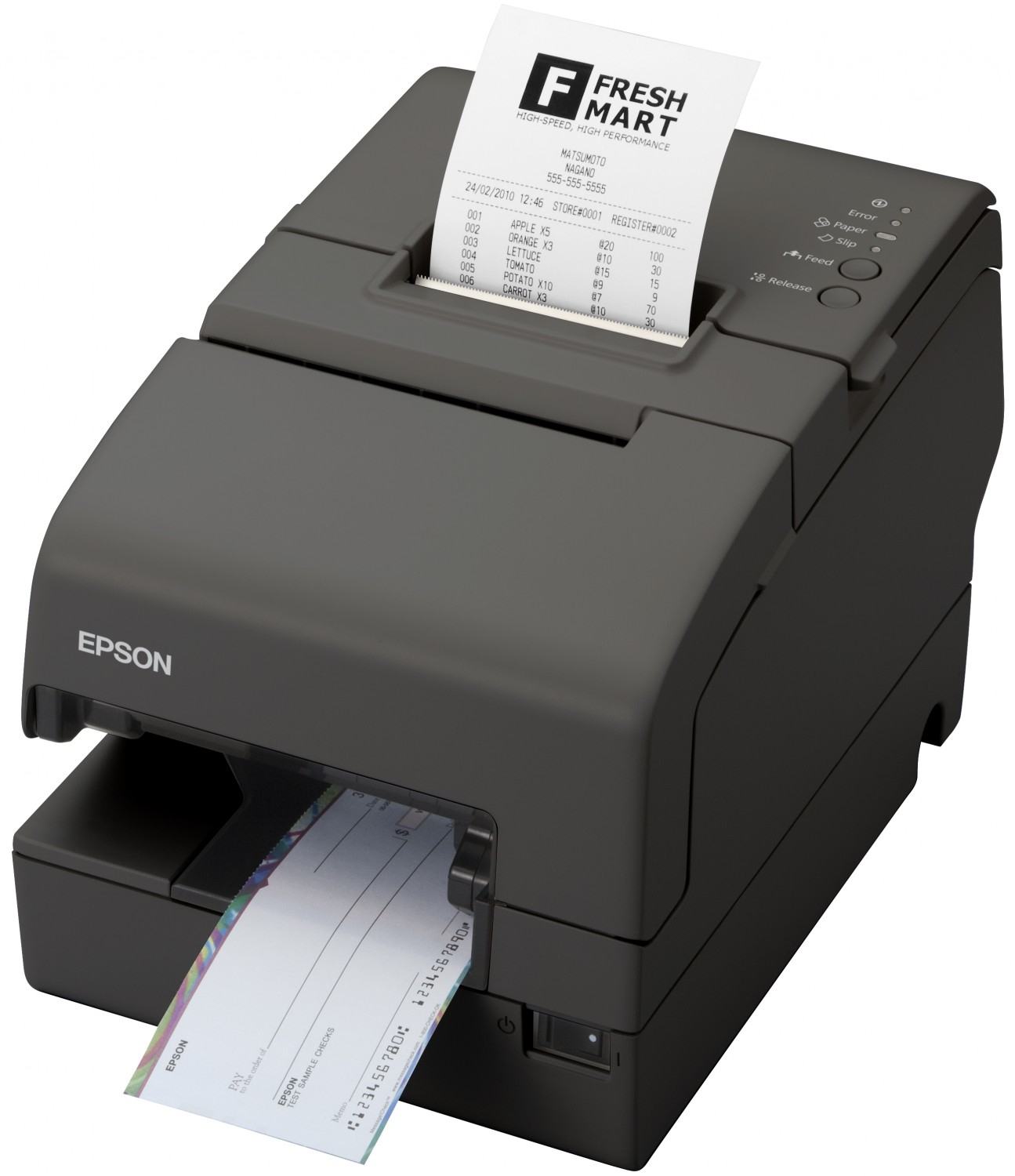

TM-H6000IV (036): Powered USB, w/o PS, EDG, MICR
Model TM-H6000IV-036Part no. C31CB25036EAN 4054318721238
52 specifications
- ConnectivityWired
- TypePOS printer
- Weight4.4 kg
- ColourNo
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 4.4 kg
- Colour
- No
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-H6000IV-036
- Part number
- C31CB25036
- EAN / UPC
- 4054318721238, 5054629580158, 8715946521909
- Also known as
- Epson TM-H6000IV (036): Powered USB, w/o PS, EDG, MICR
Specifications
52 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 300 mm/sec |
| Print speed | 5.7 lps |
| Character density | 17.8 cpi |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Interface | USB 2.0, Drawer kick-out, Powered USB |
| Standard interfaces | USB 1.1, USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Cutter | Yes |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Ribbon life | 4 million characters |
Design
| Specification | Value |
|---|---|
| Product colour | Dark Grey |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Relative humidity | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 278 mm |
| Height | 181 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB |
| Quantity per pack | 1 pc(s) |
| Package width | 296 mm |
| Package depth | 391 mm |
| Package height | 292 mm |
| Package weight | 5.53 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 56 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 15 cm |
| Products per pallet (UK) | 63 pc(s) |
| Products per pallet layer (UK) | 9 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 15 cm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Box contents | Connector Cover, Main unit, Power switch cover, Ribbon cartridge (slip), Thermal roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Mean cycles between failures (MCBF) | 96000000 |
