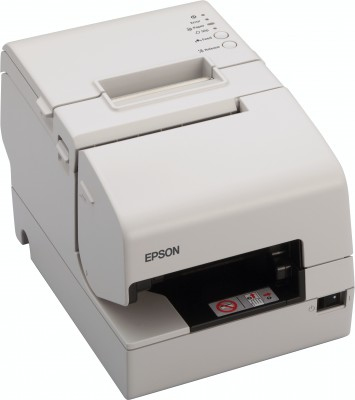

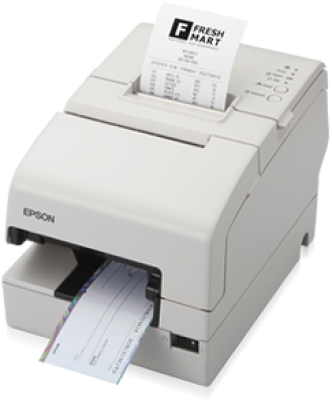

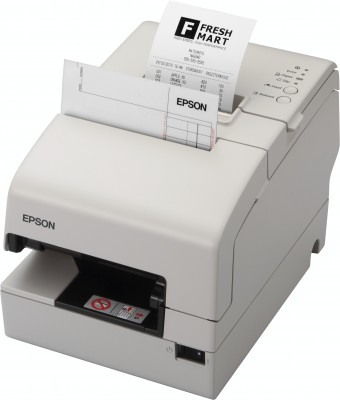

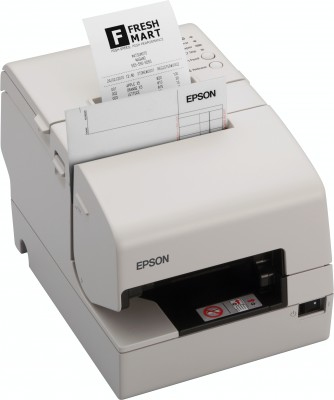

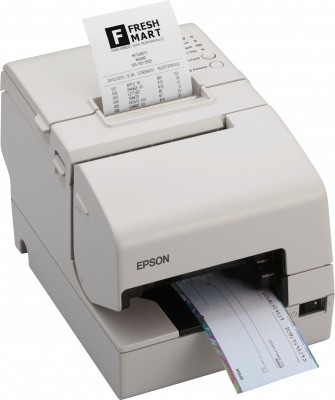

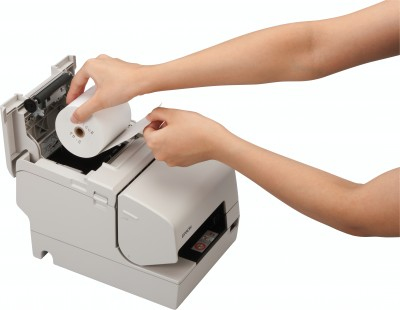

TM-H6000IV (033): Serial, w/o PS, ECW, MICR
Model TM-H6000IVPart no. C31CB25A8771EAN 682017494449
57 specifications
- ConnectivityWired
- TypePOS printer
- Weight4.4 kg
- ColourWhite
- Print technologyThermal
- Maximum roll diameter8.3 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 4.4 kg
- Colour
- White
- Print technology
- Thermal
- Maximum roll diameter
- 8.3 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-H6000IV
- Part numbers
- C31CB25A8771, C31CB25033, C31CB25513, C31CB25034, C31CB25024, C31CB25034A0 +6 more
- EAN / UPC
- 682017494449, 814556012932, 3609740031779, 4054318721221 +23 more
- Also known as
- Epson TM-H6000IV (033): Serial, w/o PS, ECW, MICR
Specifications
57 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal |
| Type | POS printer |
| Maximum resolution | 180 x 180 DPI |
| Print speed | 300 mm/sec |
| Print speed | 94 lps |
| Character density | 21.2 cpi |
| Character size | 0.99 x 2.4 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8.3 cm |
| Supported paper width | 80, 58 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Interface | RS-232, USB 2.0, Drawer kick-out, Customer Display |
| Serial ports quantity | 1 |
| Standard interfaces | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Autocutter durability | 2 million cuts |
| Country of origin | China |
| Ribbon life | 4 million characters |
| Safety | UL60950-1; CAN/CSA C22.2 No.60950-1 |
| Certification | WEEE, RoHS, FCC; CAN/CSA-CEI/IEC CISPR 22 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Input current | 1.7 A |
| Power supply type | DC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2008/2000/XP/Vista, WEPOS, POSReady |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 278 mm |
| Height | 181 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 300 mm |
| Package depth | 380 mm |
| Package height | 290 mm |
| Package weight | 5.6 kg |
Print technology
| Specification | Value |
|---|---|
| Column capacity | 56/42 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 56 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 2.25 m |
| Products per pallet (UK) | 63 pc(s) |
| Products per pallet layer (UK) | 9 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 2.25 m |
Technical details
| Specification | Value |
|---|---|

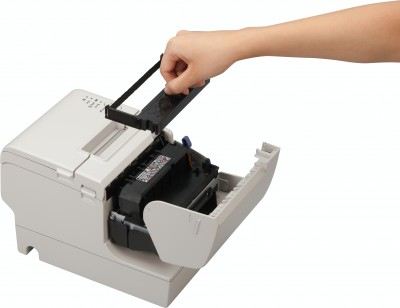

| Box contents | Connector Cover, Main unit, Power switch cover, Ribbon cartridge (slip), Thermal roll paper, User manual |
Other features
| Specification | Value |
|---|---|
| Buffer size | 4 KB |
| Dimensions (WxDxH) | 186 x 278 x 181 mm |
