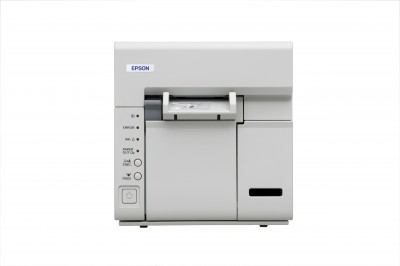

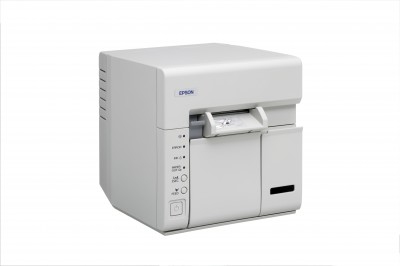

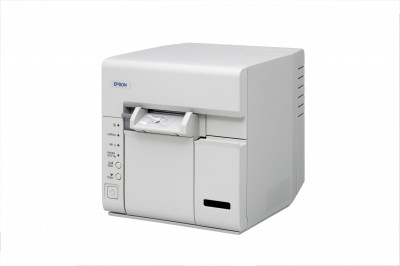

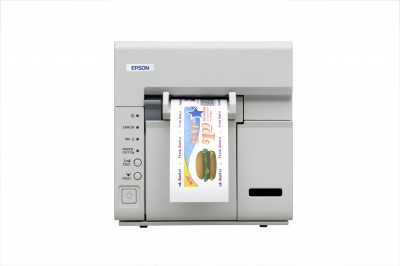

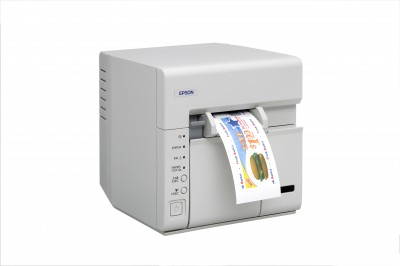

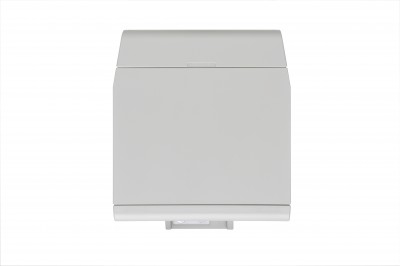

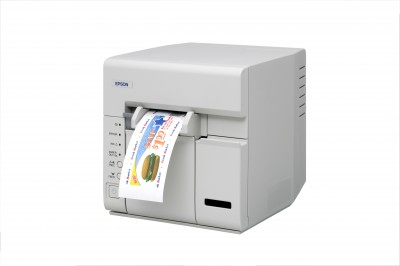

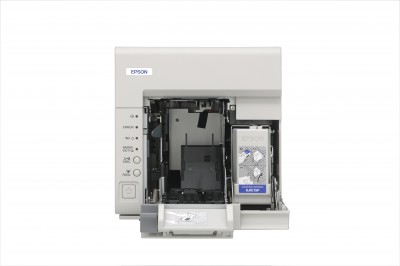

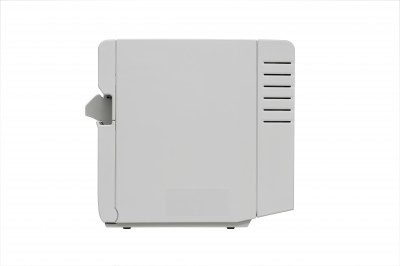

TM-C610 (021): USB, PS, ECW
Model TM-C610Part no. C31CA84021EAN 8715946481807
56 specifications
- ConnectivityWired
- TypePOS printer
- Weight4 kg
- ColourWhite
- Print technologyDot matrix
- Maximum roll diameter9 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 4 kg
- Colour
- White
- Print technology
- Dot matrix
- Maximum roll diameter
- 9 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-C610
- Part number
- C31CA84021
- EAN / UPC
- 8715946481807
- Also known as
- Epson TM-C610 (021): USB, PS, ECW
Specifications
56 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dot matrix |
| Type | POS printer |
| Maximum resolution | 360 x 360 DPI |
| Print speed | 96 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 9 cm |
| Printing media thickness | 75 - 85 µm |
| Supported paper width | 58 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Interface | USB 2.0 |
| Standard interfaces | USB 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Sound pressure level (printing) | 53 dB |
| Mean time between failures (MTBF) | 180000 h |
| Cutter | Yes |
| Autocutter durability | 0.5 million cuts |
| Country of origin | China |
| Mounting position | Horizontal |
| Built-in sensors details | Paper End Sensor, Paper Near End Sensor |
| Safety | TÜV, GOST-R |
| Certification | VCCI, FCC, CE, AS / NZS 3548 / CISPR22 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 13 W |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 200 mm |
| Height | 195 mm |
| Weight | 4 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 285 mm |
| Package depth | 382 mm |
| Package height | 305 mm |
| Package weight | 5.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 48 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 3.3 m |
| Products per pallet (UK) | 48 pc(s) |
| Products per pallet layer (UK) | 8 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 3.3 m |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Media weight (tray 1) | 64 g/m2 |
| Technology | Inkjet |
| Box contents | Ink Cartridge, Main unit, Roll paper, User manual |
| Paper size roll paper | 57.50 ± 0.50 (W) mm x dia 90.00 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 185 x 200 x 195 mm |
