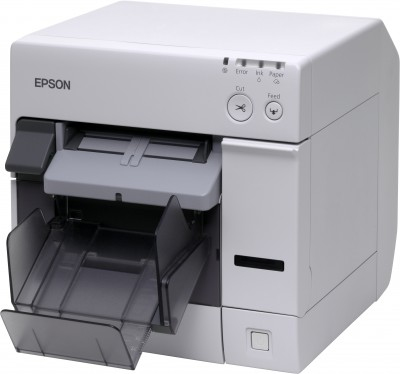

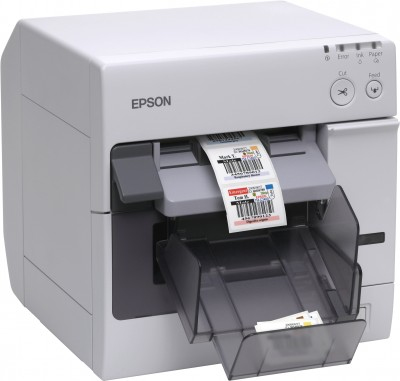

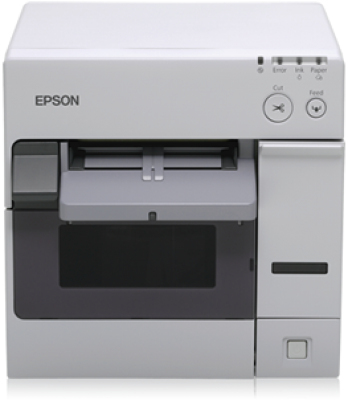

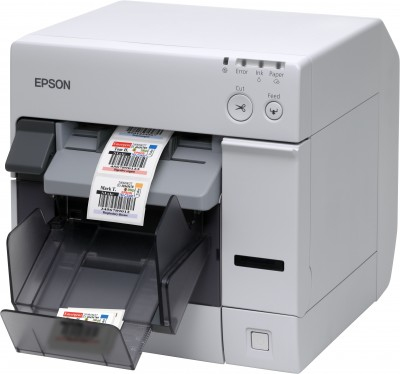

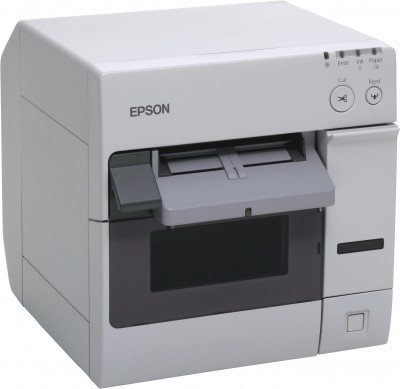

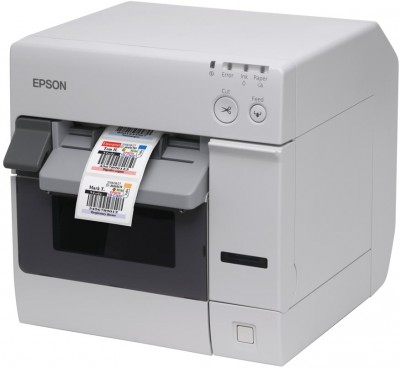

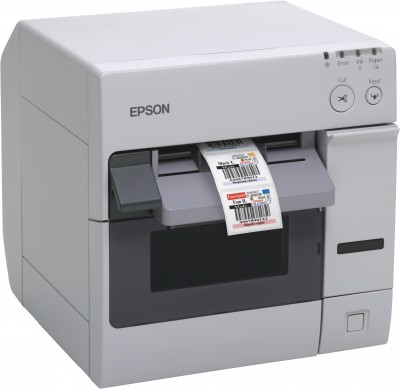

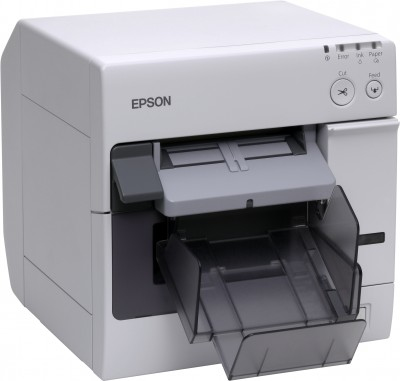

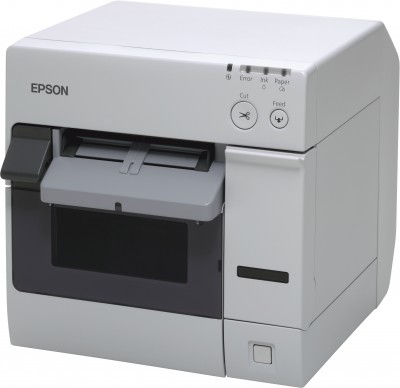

ColorWorks C3400 - LAN
Model TM-C3400-032Part no. C31CA26032EAN 3540260125343
47 specifications
- ConnectivityWired
- TypePOS printer
- Weight10 kg
- ColourYes
- Print technologyInkjet
- Maximum printing width10.4 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 10 kg
- Colour
- Yes
- Print technology
- Inkjet
- Maximum printing width
- 10.4 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- TM-C3400-032
- Part number
- C31CA26032
- EAN / UPC
- 3540260125343, 4058154303221, 5711045284052, 8715946435824
- Also known as
- Epson ColorWorks C3400 - LAN
Specifications
47 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Type | POS printer |
| Colour | Yes |
| Maximum resolution | 720 x 360 DPI |
| Print speed | 92 mm/sec |
Paper handling
| Specification | Value |
|---|---|
| Maximum printing width | 10.4 cm |
| Printing media thickness | 85 - 151 µm |
| Supported paper width | 25 - 112 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Mean time between failures (MTBF) | 75000 h |
| Country of origin | China |
| Safety | UL / CSA / TÜV |
| Certification | VCCI, FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 2000 SP4, Microsoft Windows XP SP3, Microsoft Windows 2003 R2 SP2, Microsoft Windows Vista SP1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 275 mm |
| Height | 261 mm |
| Weight | 10 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 380 mm |
| Package depth | 500 mm |
| Package height | 410 mm |
| Package weight | 12 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 16 pc(s) |
| Products per pallet layer | 4 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 177 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet layer (UK) | 6 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 177 cm |
Technical details
| Specification | Value |
|---|---|
| Box contents | Ink Cartridge, Label paper roll, Main unit, PS-180, Paper tray, Power switch cover, Setup guide, USB cable, User manual |
| Power consumption | Printing: Appx.30 W, Standby: Appx.5 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 255 x 275 x 261 mm |
