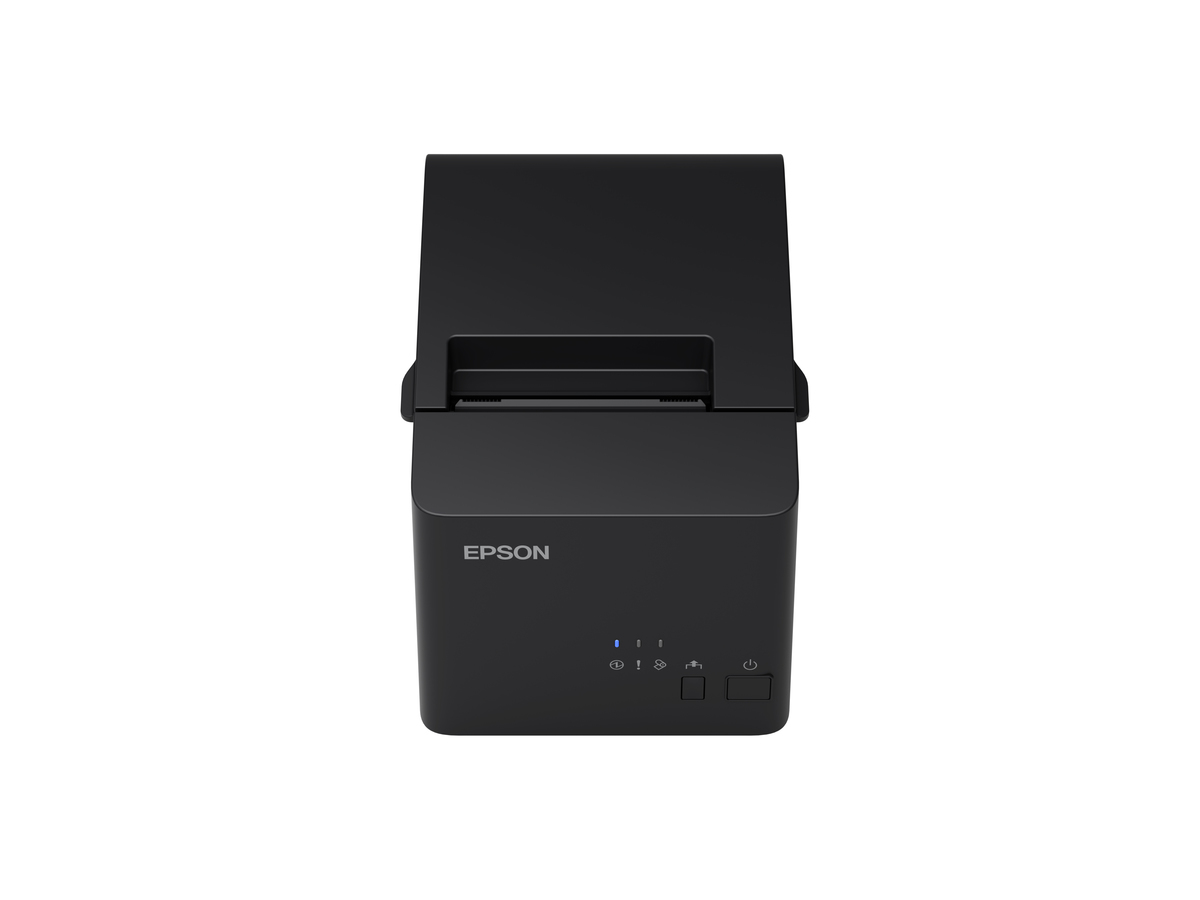

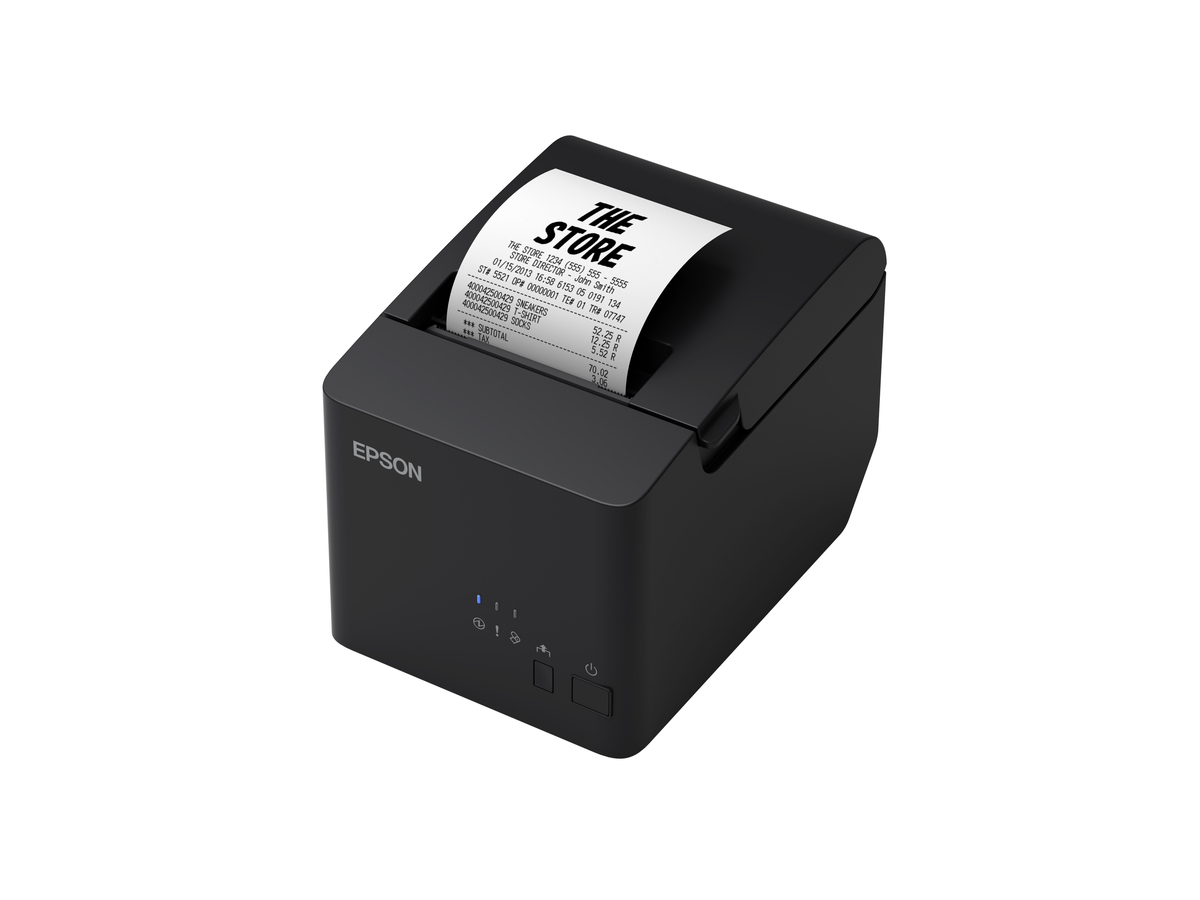

T20IV-L 203 x 203 DPI Wired Direct thermal POS printer
Model T20IV-LPart no. C31CL45001
29 specifications
- ConnectivityWired
- TypePOS printer
- Weight1.5 kg
- ColourBlack
- Print technologyDirect thermal
- Maximum roll diameter8 cm
Overview
- Connectivity
- Wired
- Type
- POS printer
- Weight
- 1.5 kg
- Colour
- Black
- Print technology
- Direct thermal
- Maximum roll diameter
- 8 cm
- Brand
- Epson
- Category
- POS Printer
- Model
- T20IV-L
- Part numbers
- C31CL45001, C31CL45002
- Also known as
- Epson T20IV-L 203 x 203 DPI Wired Direct thermal POS printer
Specifications
29 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Direct thermal |
| Type | POS printer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 250 mm/sec |
| Character size | 1.25 x 3 mm |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll diameter | 8 cm |
| Printing media thickness | 53 - 75 µm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| USB port | Yes |
| USB connector | USB Type-B |
| Serial interface | Yes |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Built-in barcodes | CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Yes |
| Autocutter durability | 1.5 million cuts |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (printing) | 31.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS 12.4, Mac OS 13.1, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 192 mm |
| Height | 137 mm |
| Weight | 1.5 kg |
