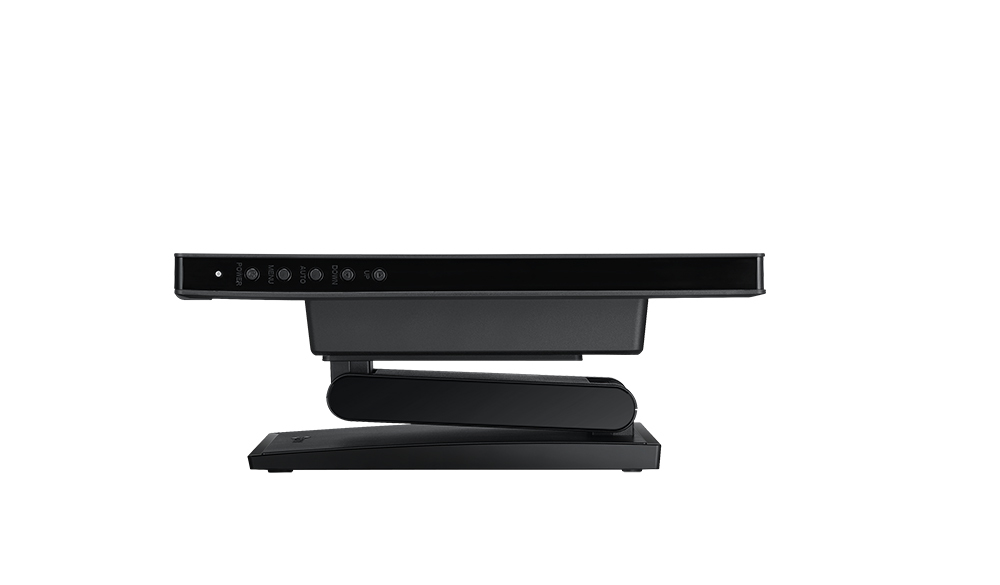

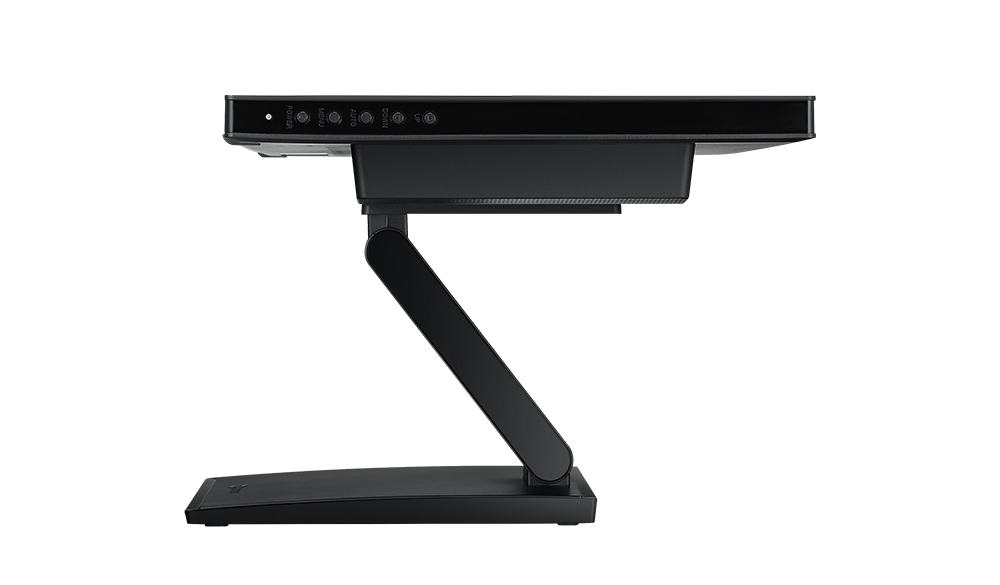

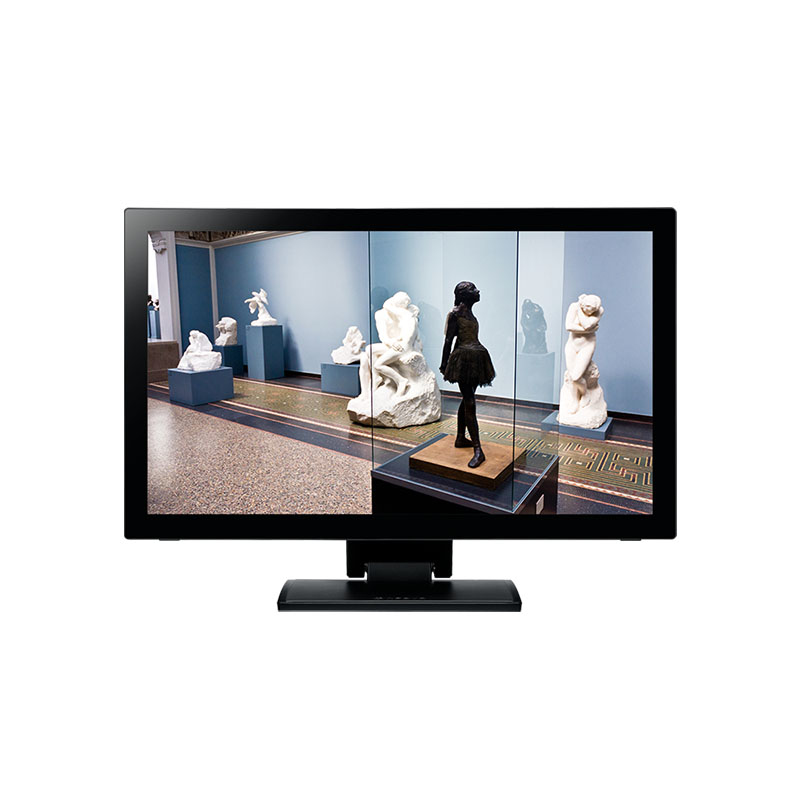

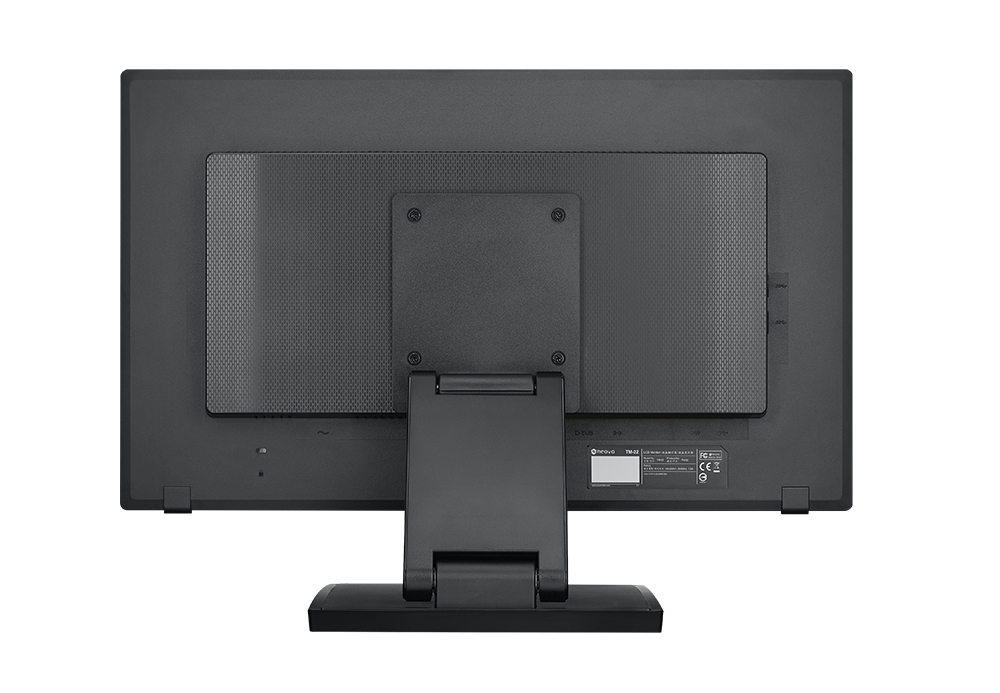

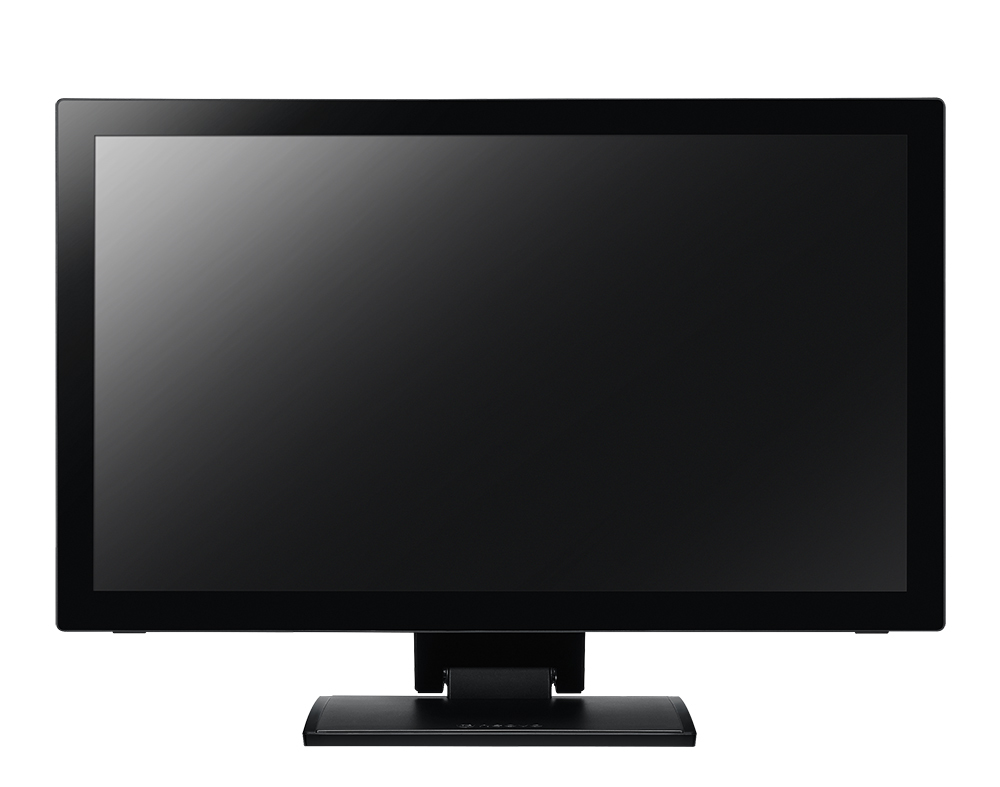

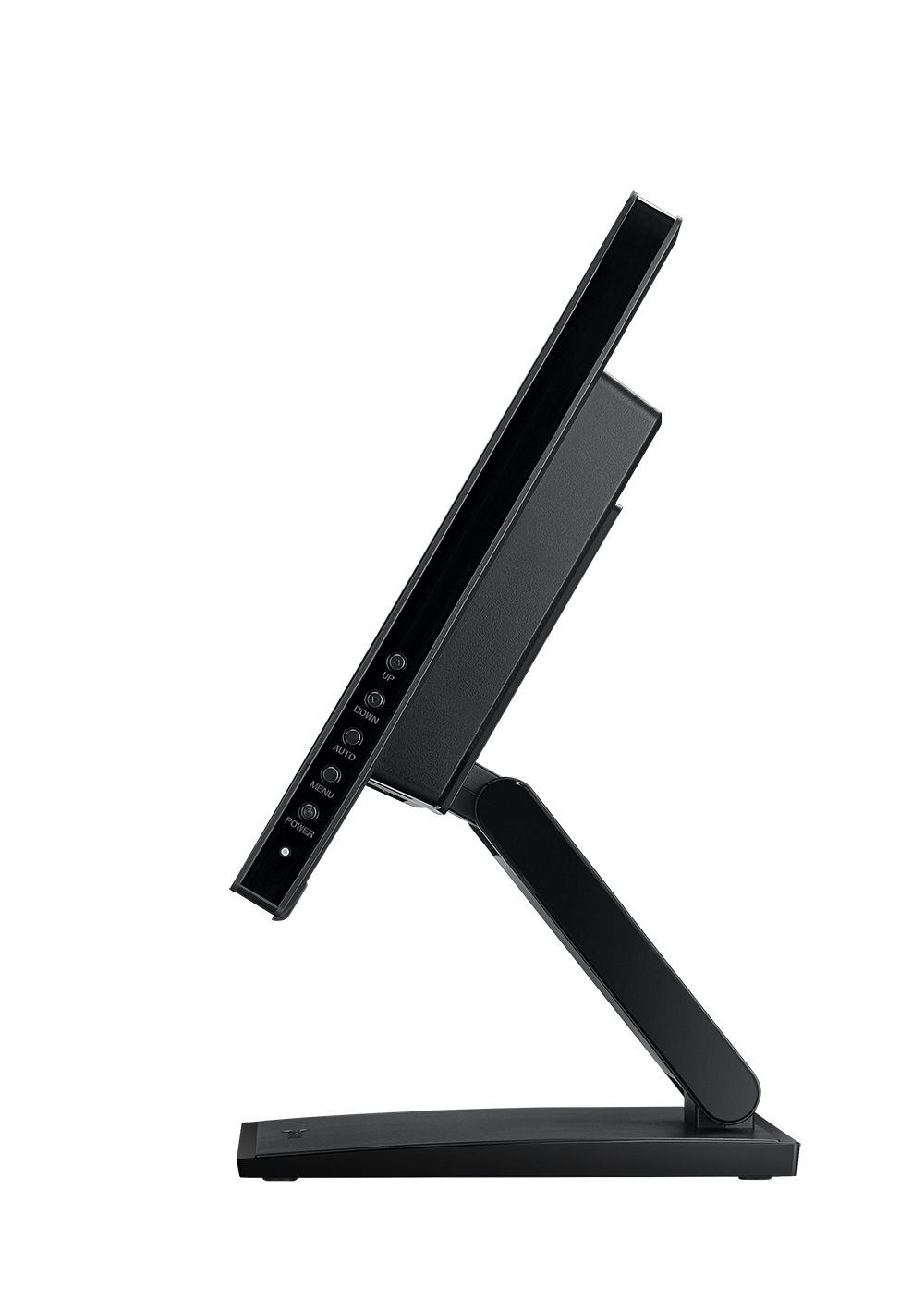

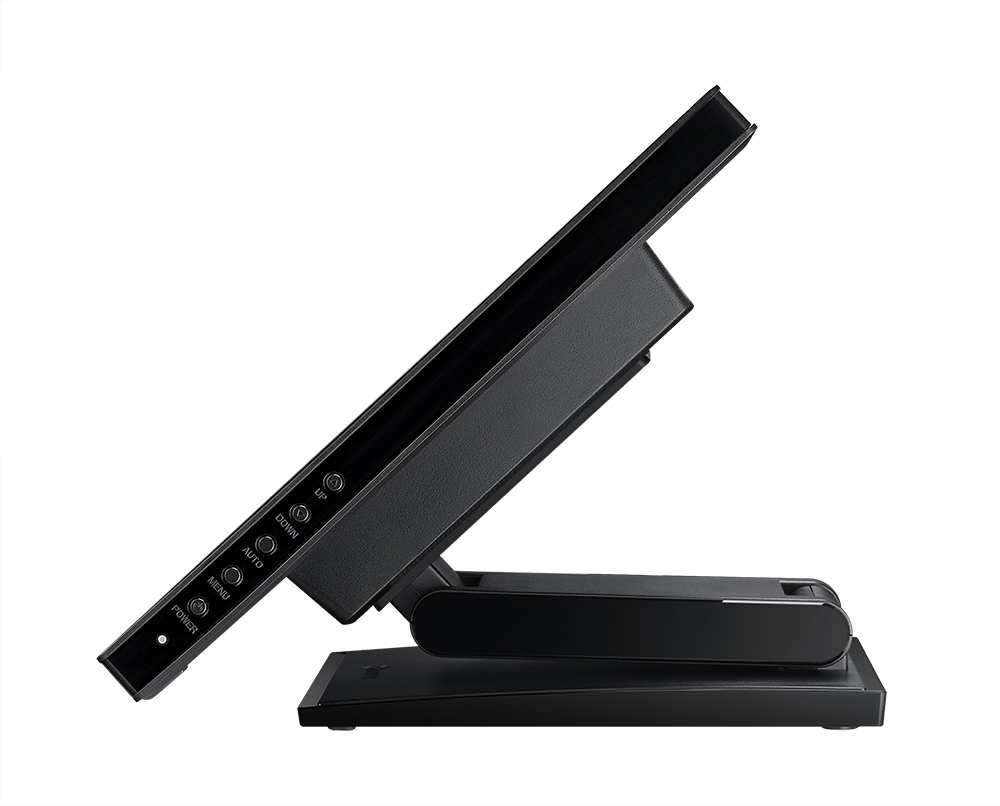

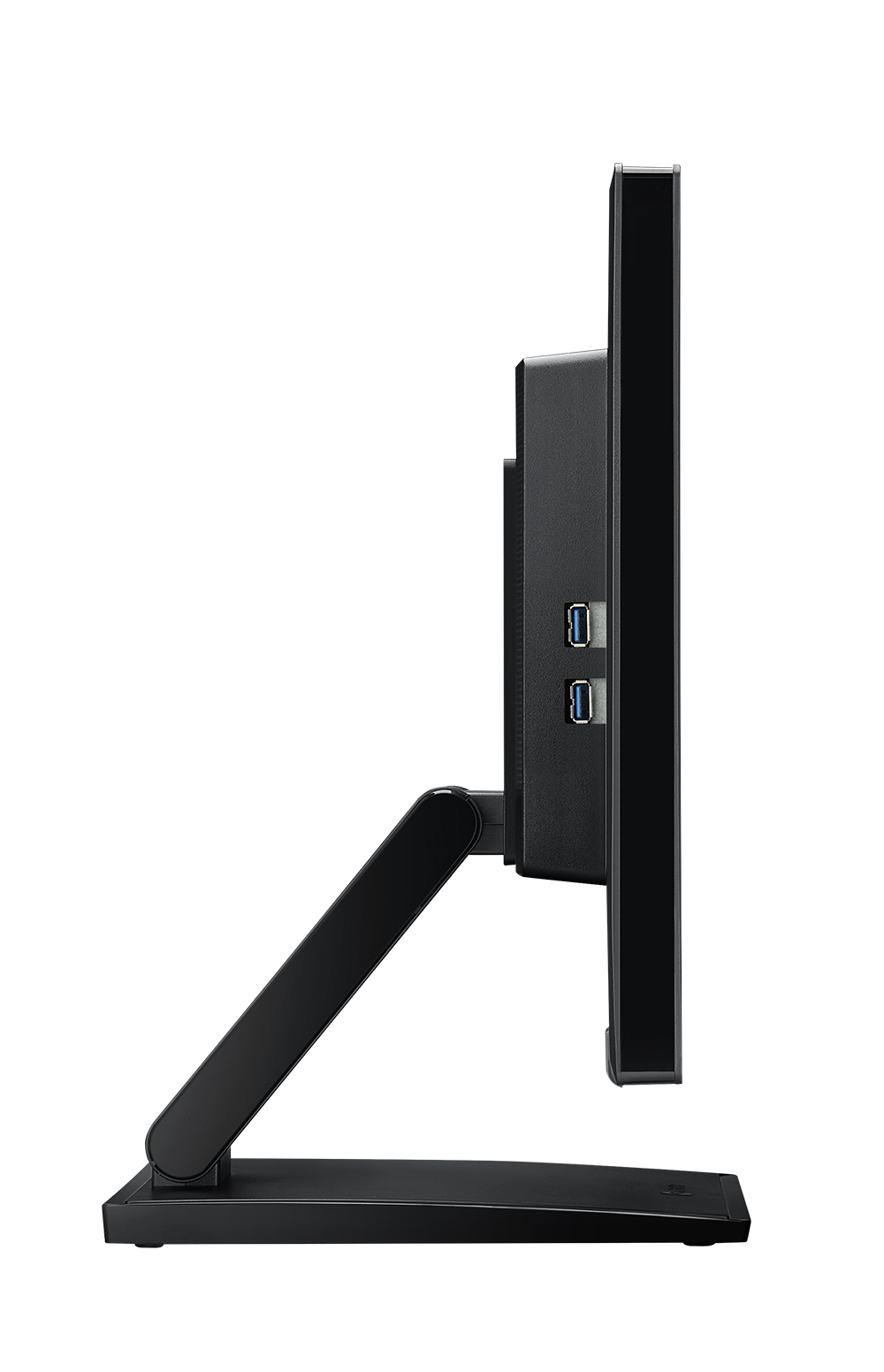

TM22E011E0100 POS monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen
Model TM22E011E0100
35 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Weight6.3 kg
- ColourBlack
- Power source typeAC
- Depth238.5 mm
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Weight
- 6.3 kg
- Colour
- Black
- Power source type
- AC
- Depth
- 238.5 mm
- Brand
- AG Neovo
- Category
- POS Monitor
- Model
- TM22E011E0100
- Part number
- TM22E011E0100
- Also known as
- AG Neovo TM22E011E0100 POS monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen
Specifications
35 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Display type | LCD |
| Display brightness | 250 cd/m² |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Contrast ratio (typical) | 20000000:1 |
| LED backlight | Yes |
| Number of colours | 16.78 million colours |
| Panel type | TN |
| Pixel pitch | 0.248 x 0.248 mm |
| Response time | 3 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Windows operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

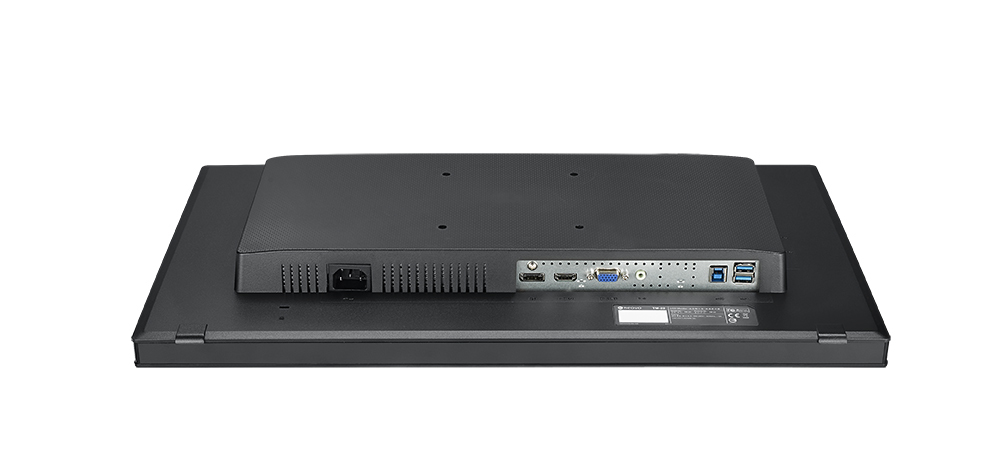

| Interface | VGA (D-Sub) + HDMI + DisplayPort + USB 3.2 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 238.5 mm |
| Height | 387.4 mm |
| Weight | 6.3 kg |
| Width | 522.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 186 mm |
| Package height | 422 mm |
| Package weight | 8.1 kg |
| Package width | 586 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| Storage temperature (T-T) | -25 - 55 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
Certificates
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
