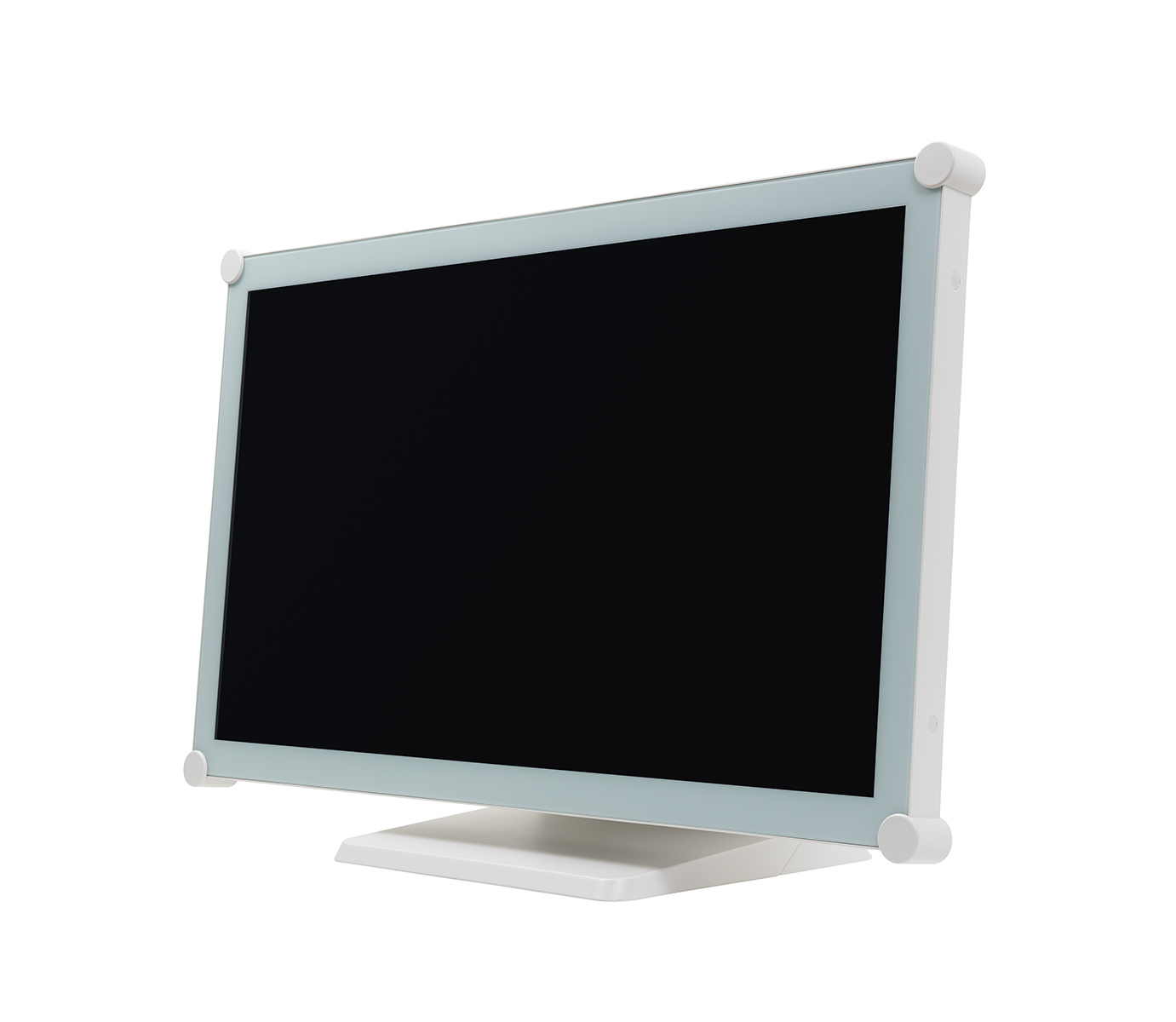

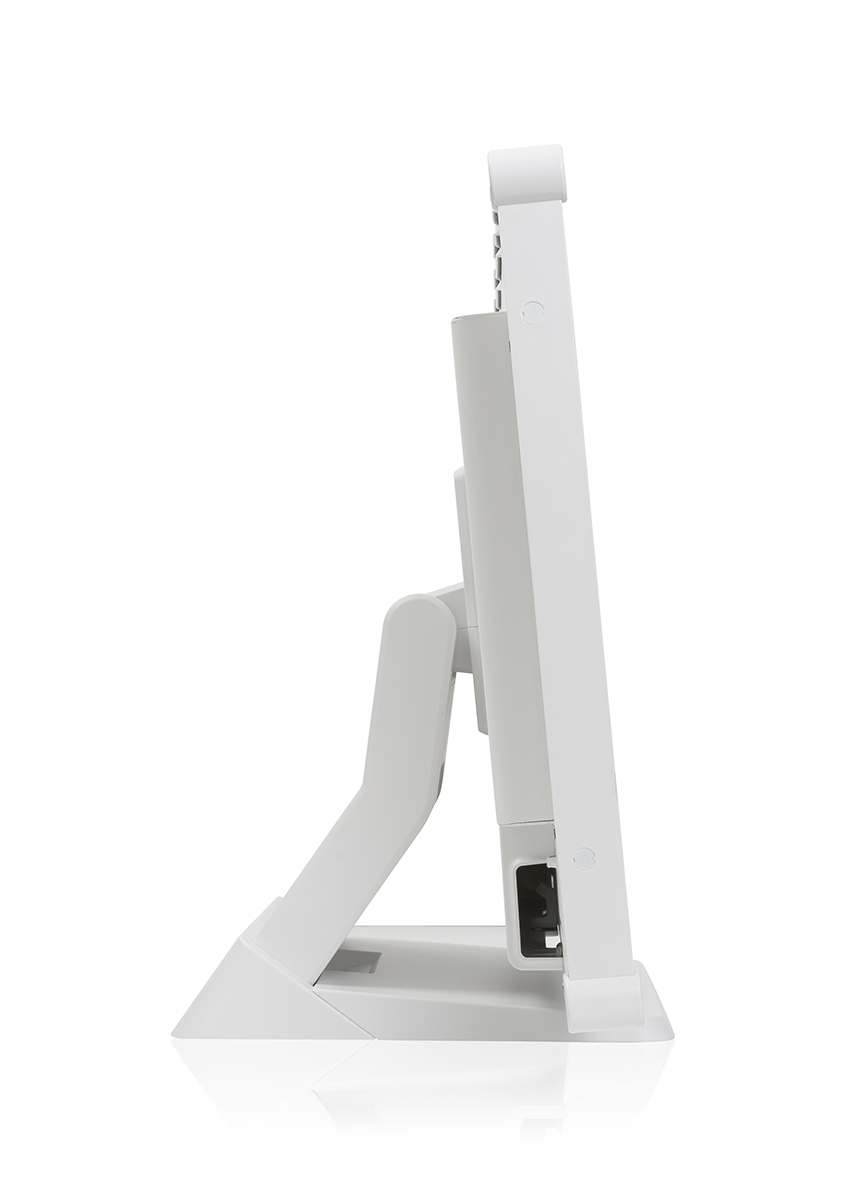

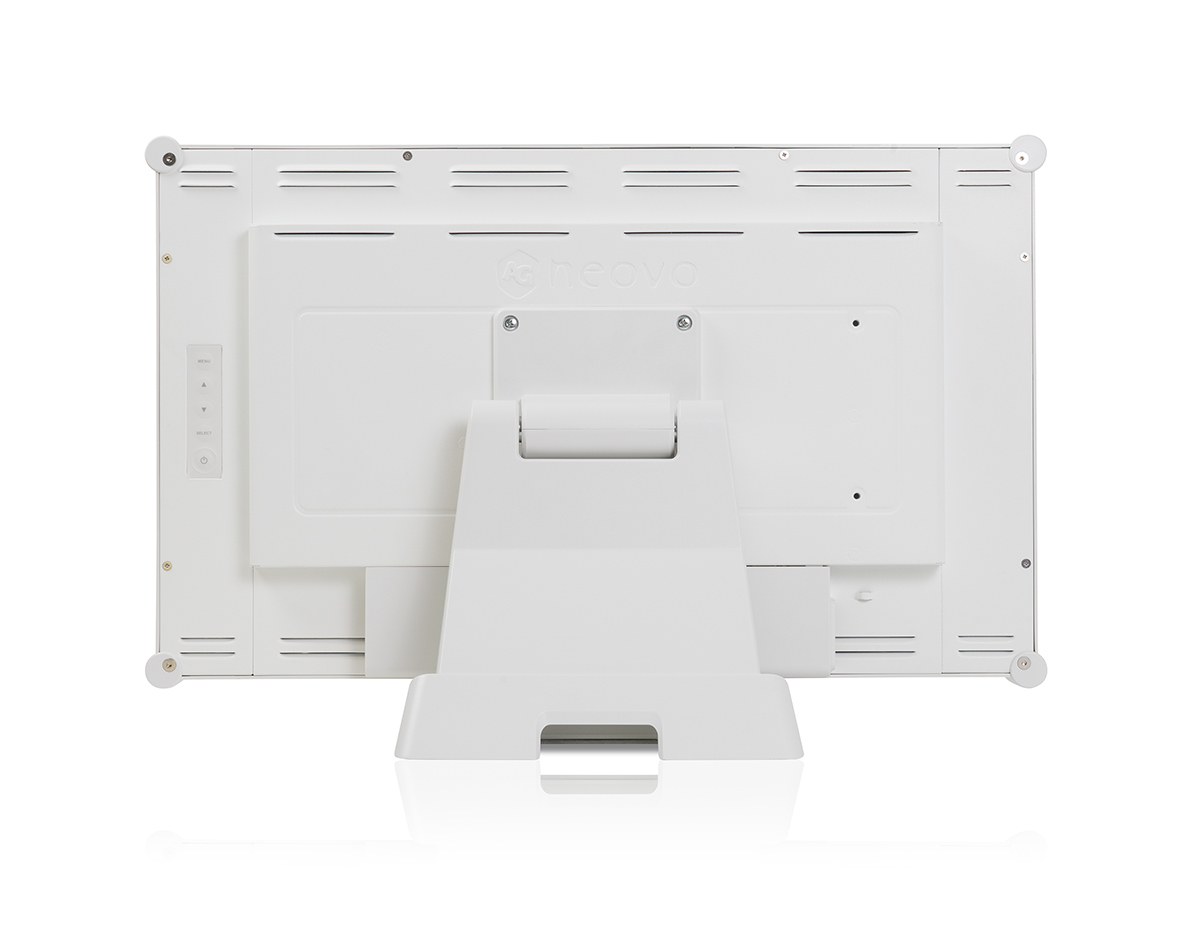

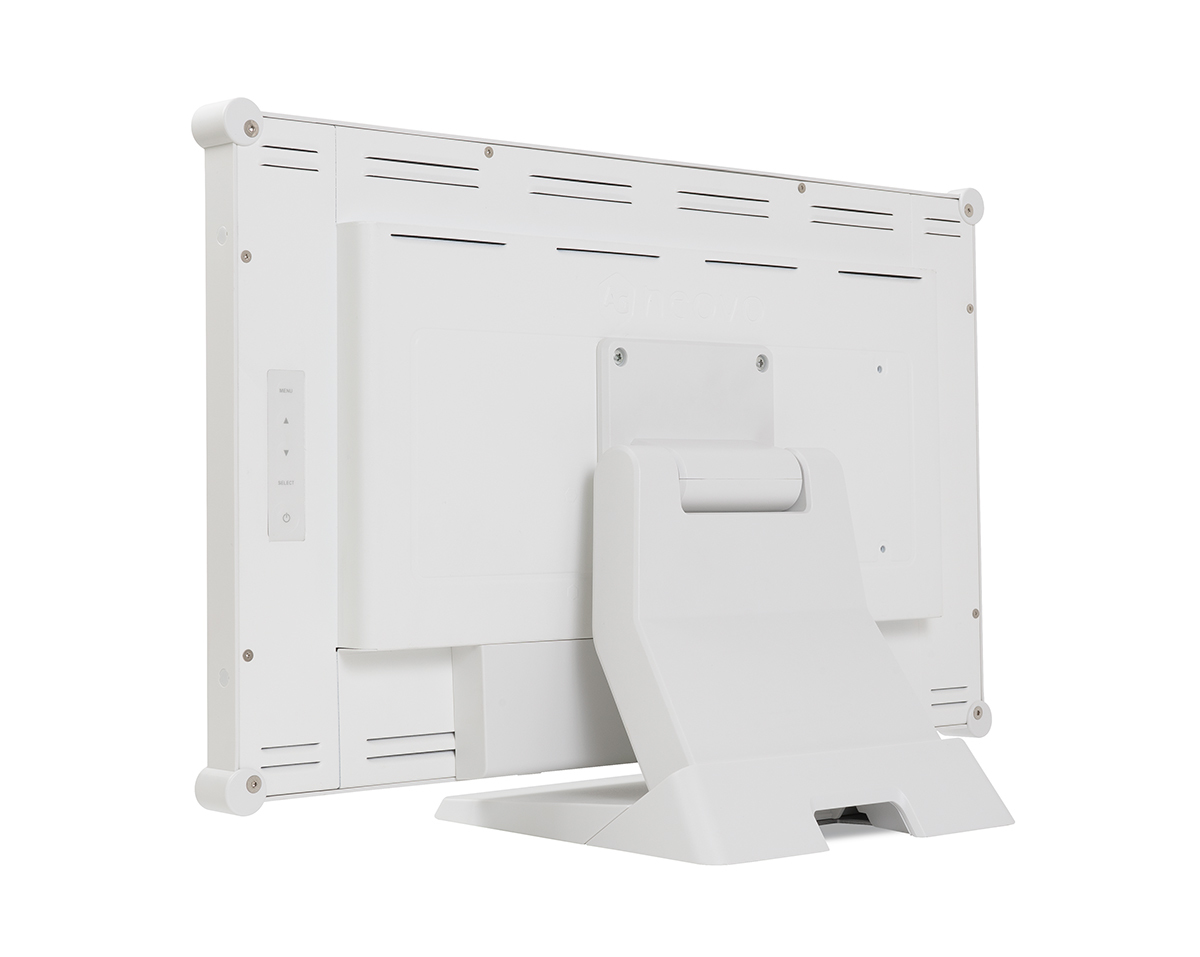

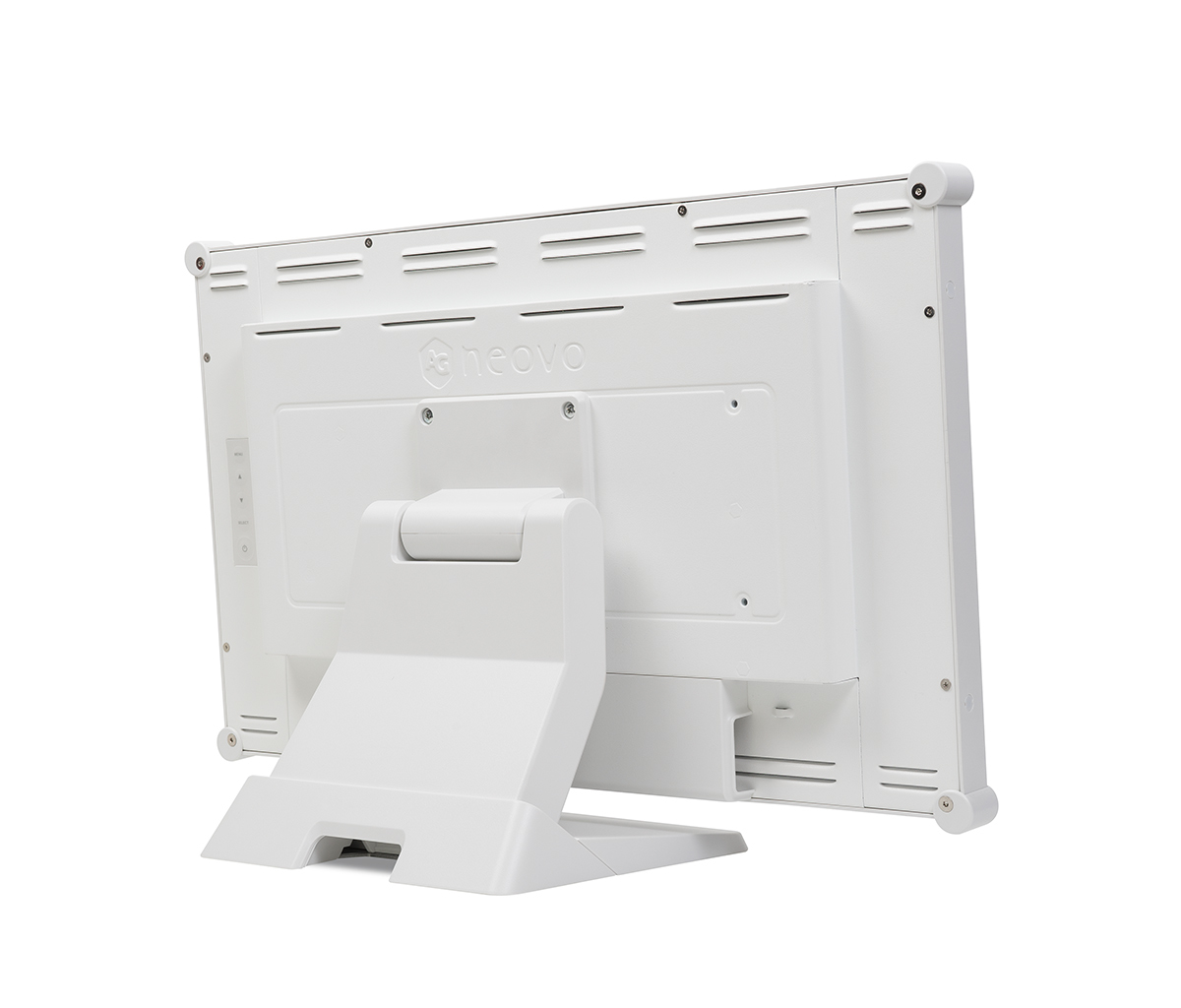

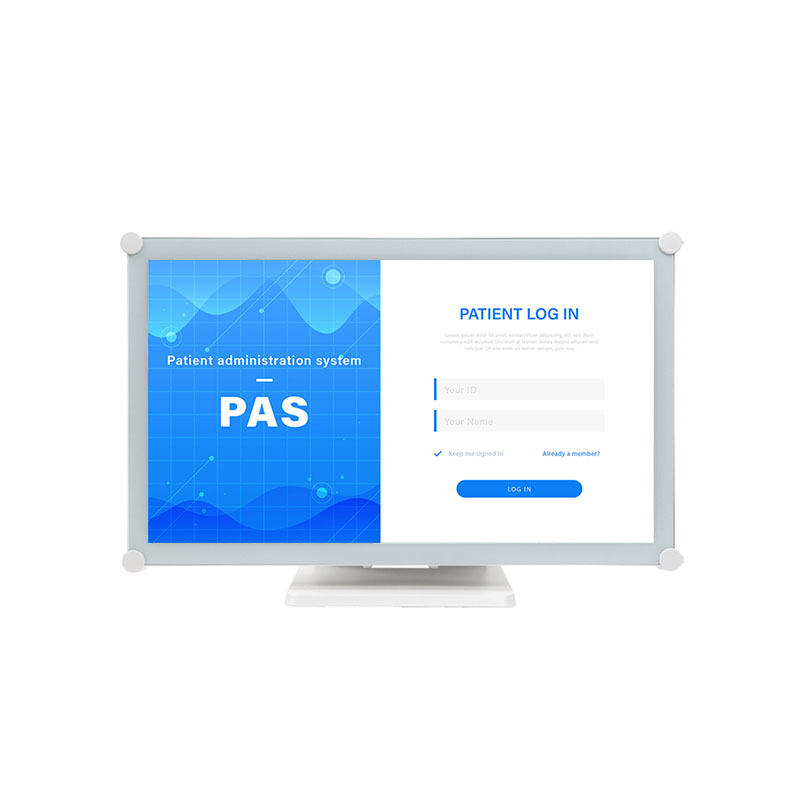

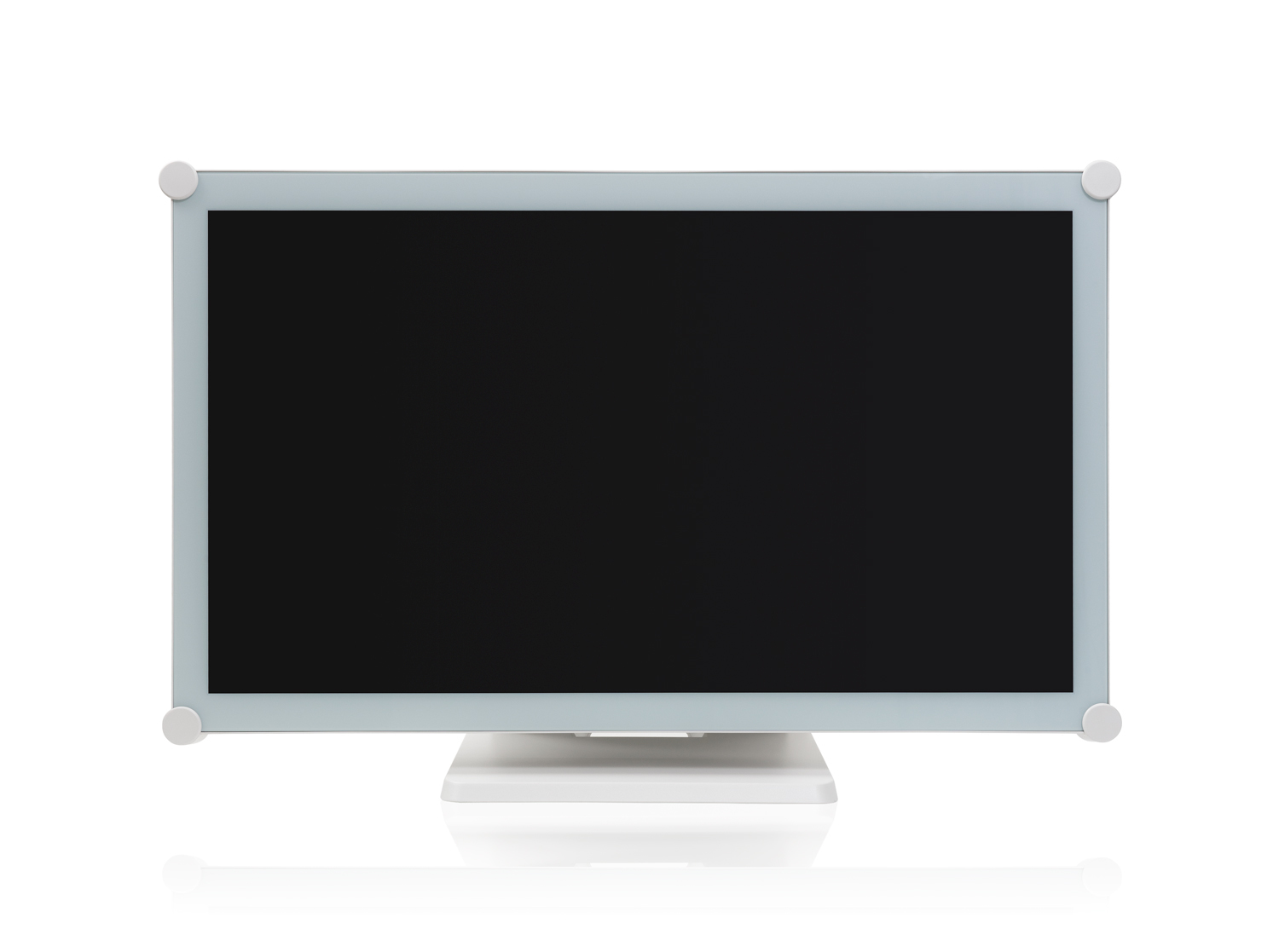

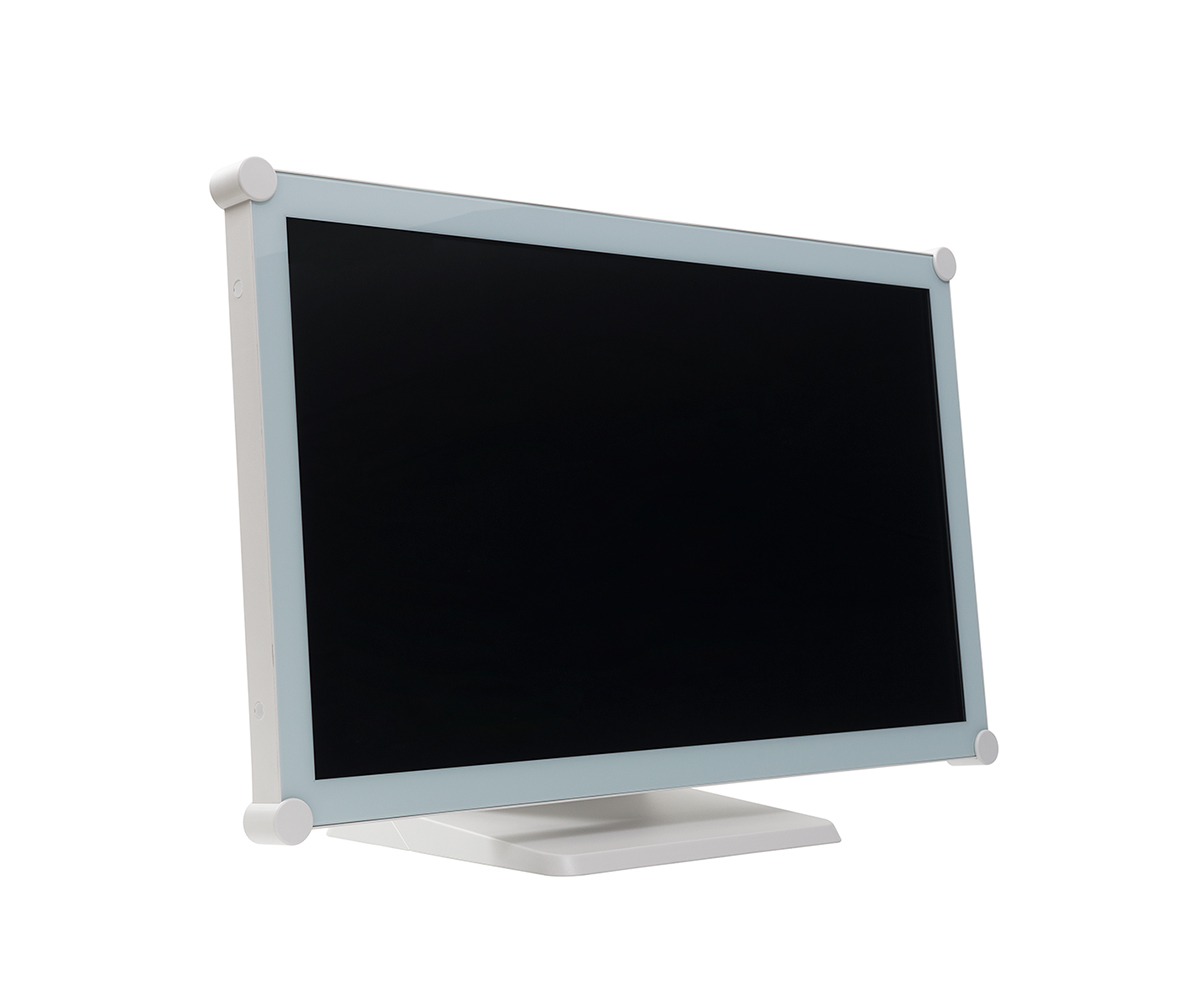

TX22C0A1E3100 POS monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD IPS Touchscreen
Model TX22C0A1E3100
38 specifications
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Power48 W
- ConnectivityDVI + VGA + USB Type-B + RJ-11
- Weight6.7 kg
- ColourWhite
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Power
- 48 W
- Connectivity
- DVI + VGA + USB Type-B + RJ-11
- Weight
- 6.7 kg
- Colour
- White
- Brand
- AG Neovo
- Category
- POS Monitor
- Model
- TX22C0A1E3100
- Part number
- TX22C0A1E3100
- Also known as
- AG Neovo TX22C0A1E3100 POS monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD IPS Touchscreen
Specifications
38 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Display type | IPS |
| Display brightness | 250 cd/m² |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Contrast ratio (typical) | 1000:1 |
| LED backlight | Yes |
| Number of colours | 16.78 million colours |
| Panel type | IPS |
| Pixel pitch | 0.248 x 0.248 mm |
| Response time | 5 ms |
| Surface hardness | 7H |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

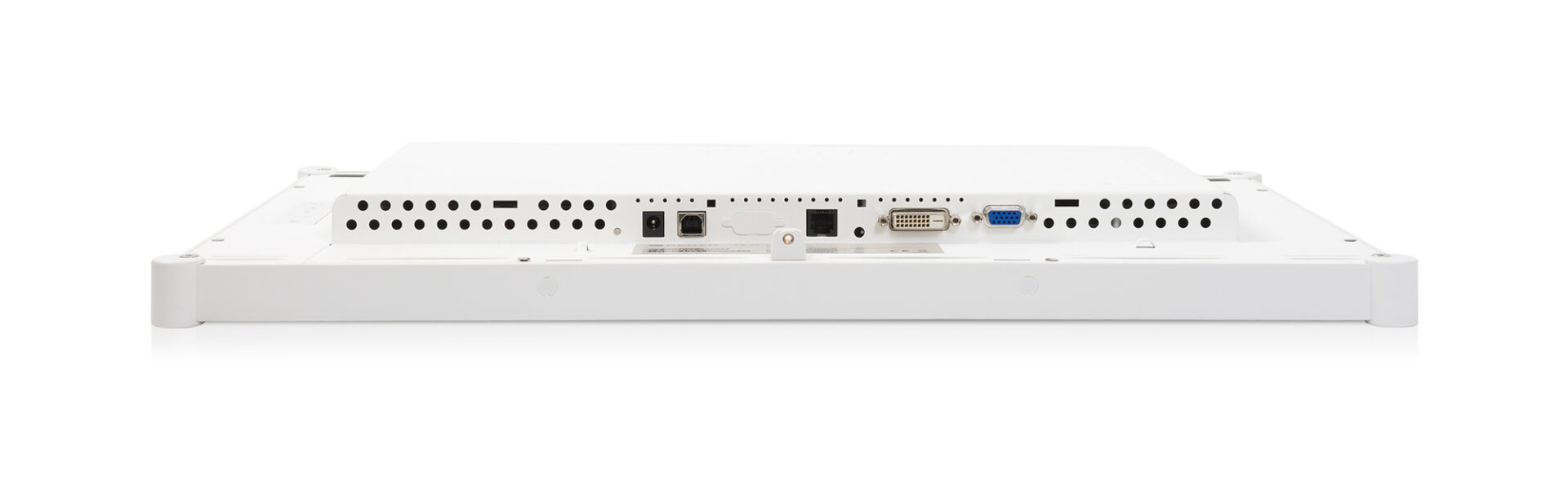

| Interface | DVI + VGA + USB Type-B + RJ-11 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power | 48 W |
| AC adapter output current | 4 A |
| AC adapter output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 214.2 mm |
| Height | 346.7 mm |
| Weight | 6.7 kg |
| Width | 528.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 320 mm |
| Package height | 460 mm |
| Package weight | 9.8 kg |
| Package width | 640 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, EAC, REACH, RoHS, WEEE |
Certificates
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
