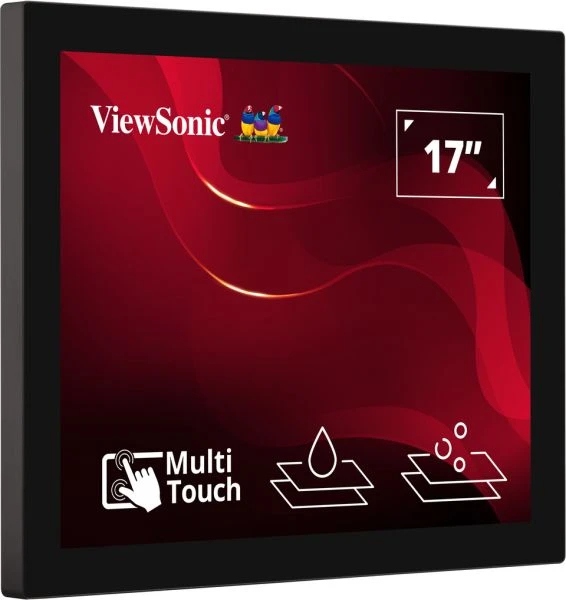

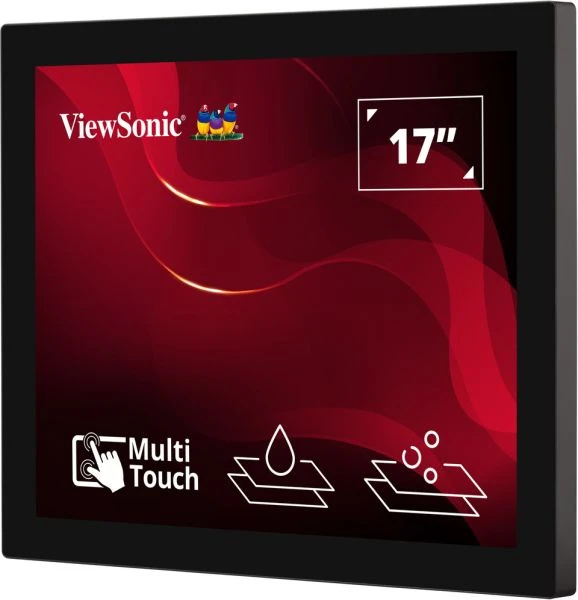

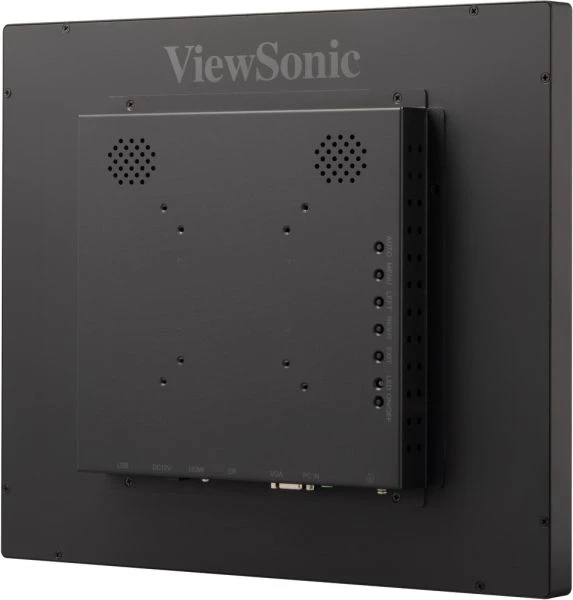

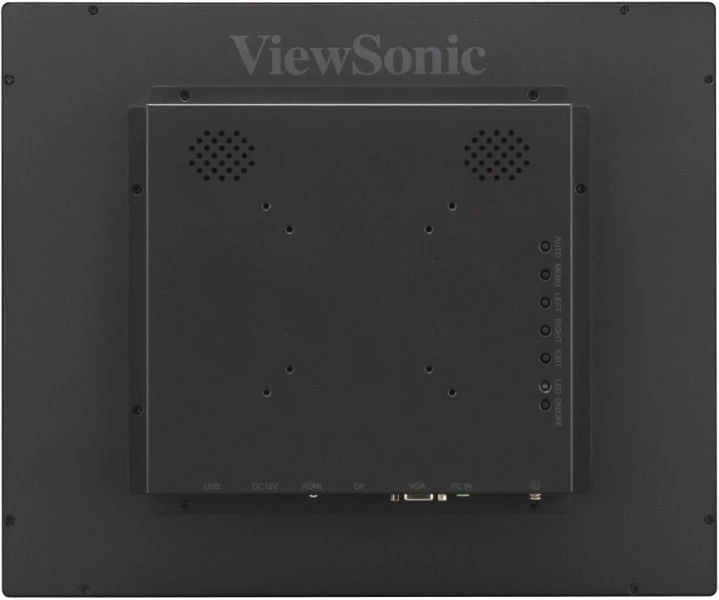

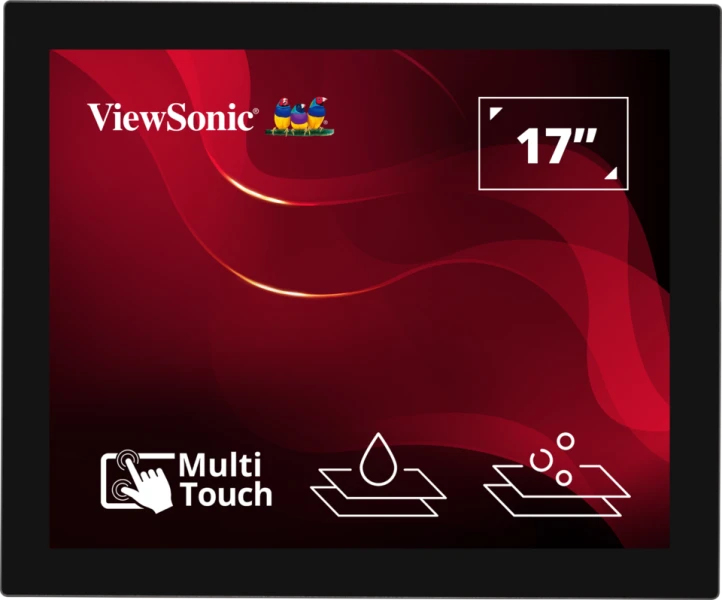

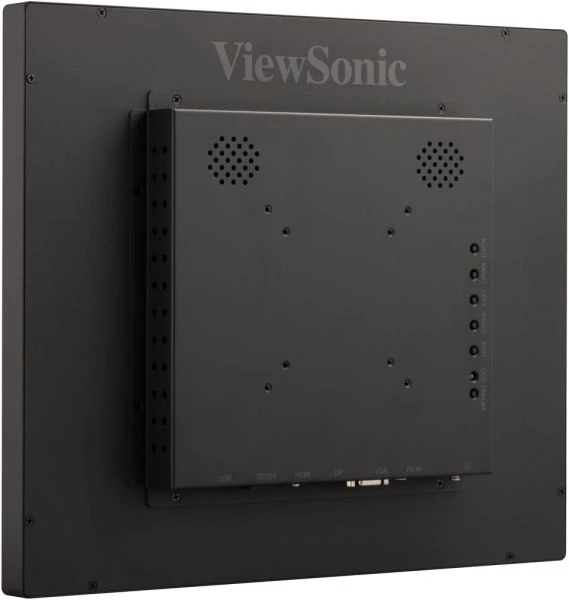

XF1740 17” Open Frame Touch Monitor for 24/7 Continuous Operation
Model XF1740EAN 766907029949
41 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight4.3 kg
- ColourBlack
- USB 2.0 ports quantity1
- Power source typeDC
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 4.3 kg
- Colour
- Black
- USB 2.0 ports quantity
- 1
- Power source type
- DC
- Brand
- Viewsonic
- Category
- POS Monitor
- Model
- XF1740
- Part number
- XF1740
- EAN / UPC
- 766907029949
- Also known as
- Viewsonic XF1740 17” Open Frame Touch Monitor for 24/7 Continuous Operation
Specifications
41 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Display brightness | 210 cd/m² |
| Touchscreen | Yes |
| Touchscreen type | Projected Capacitive (PCAP) |
| Contrast ratio (typical) | 1000:1 |
| Effective viewing area | 337.92 x 270.34 mm |
| Native aspect ratio | 5:4 |
| Pixel pitch | 0.26 x 0.26 mm |
| Response time | 5 ms |
| Surface hardness | 7H |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Mac operating systems supported | MacOS |
| Mean time between failures (MTBF) | 30000 h |
| Windows operating systems supported | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

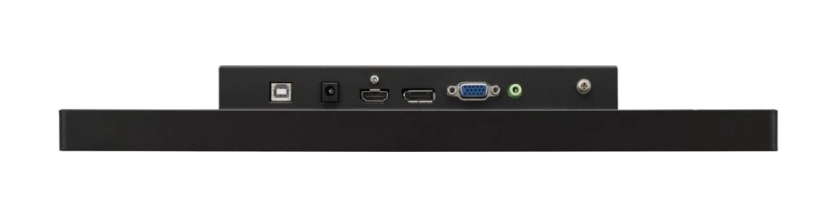

| Interface | DisplayPort + HDMI + VGA + USB Type-B |
| USB 2.0 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 4 A |
| AC adapter output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 48 mm |
| Height | 324 mm |
| Weight | 4.3 kg |
| Width | 390.4 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 140 mm |
| Package height | 420 mm |
| Package weight | 5.72 kg |
| Package width | 470 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 180 cm |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Products per master (outer) case | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS |
