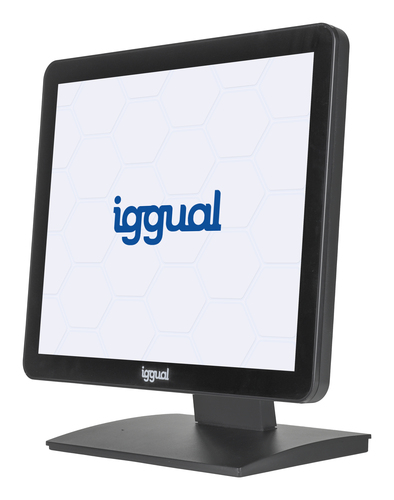

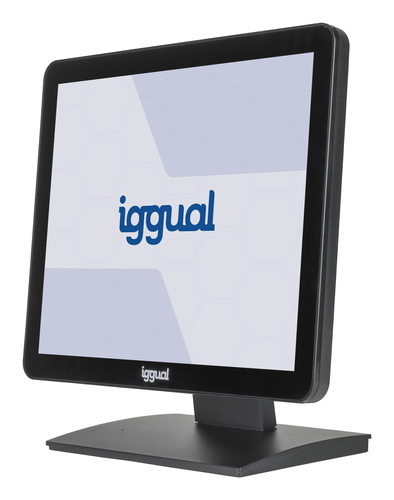

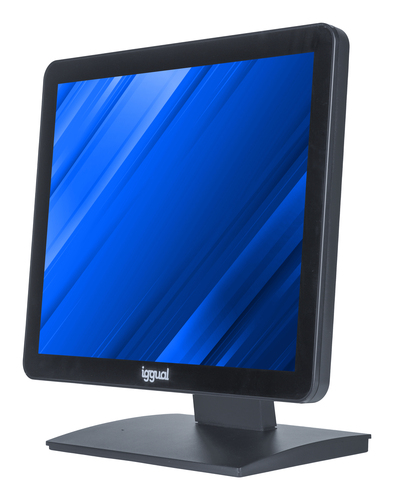

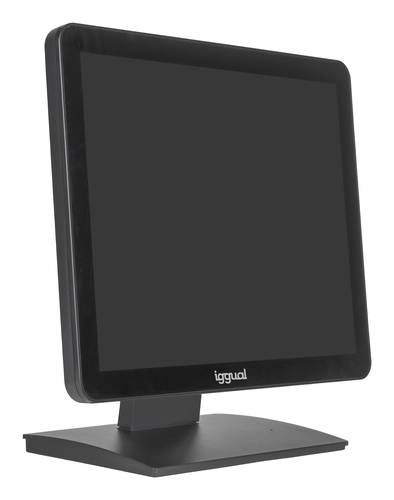

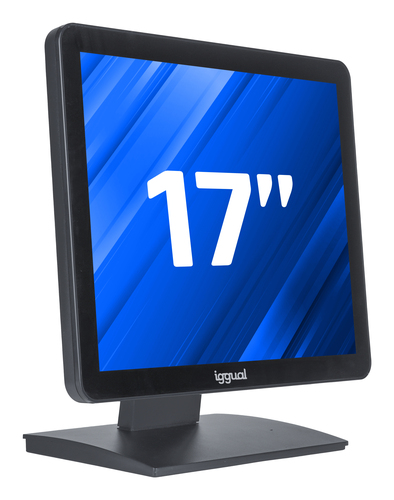

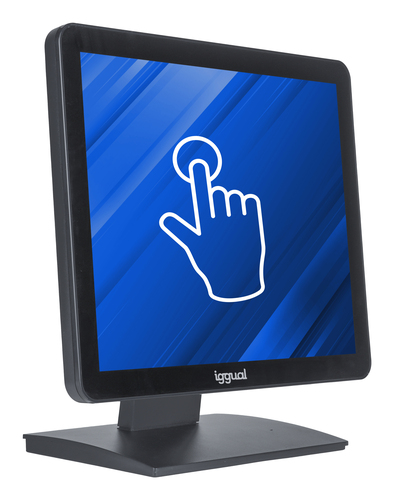

MTL17X POS monitor
43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen
Model MTL17XPart no. IGG319659EAN 8435364319659
35 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classF
- Power35 W
- ConnectivityVGA (D-Sub) + HDMI + USB 2.0
- Weight5 kg
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- F
- Power
- 35 W
- Connectivity
- VGA (D-Sub) + HDMI + USB 2.0
- Weight
- 5 kg
- Brand
- iggual
- Category
- POS Monitor
- Model
- MTL17X
- Part number
- IGG319659
- EAN / UPC
- 8435364319659
- Also known as
- iggual MTL17X POS monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen
Specifications
35 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| HD type | SXGA |
| Display type | LCD |
| Display brightness | 300 cd/m² |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Contrast ratio (typical) | 1000:1 |
| Native aspect ratio | 5:4 |
| Native refresh rate | 60 Hz |
| Number of colours | 16.78 million colours |
| Panel type | TFT-LCD |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 11, Windows XP |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | VGA (D-Sub) + HDMI + USB 2.0 |
| USB 2.0 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power | 35 W |
| Power consumption (standby) | 0.3 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 3.6 A |
| AC adapter output voltage | 12 V |
| Energy consumption per 1000 hours | 12 kWh |
| Energy efficiency class (HDR) | F |
| Energy efficiency class (SDR) | E |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 53 mm |
| Height | 320 mm |
| Weight | 5 kg |
| Width | 380 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
