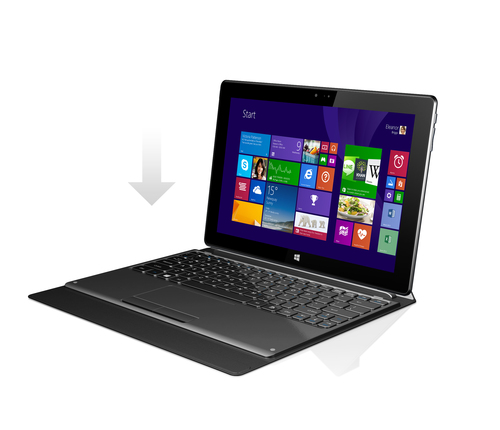

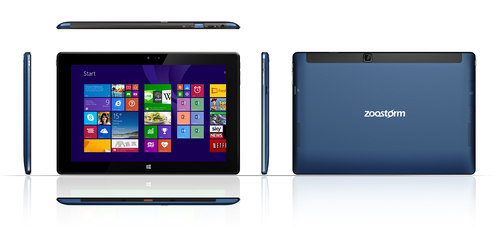

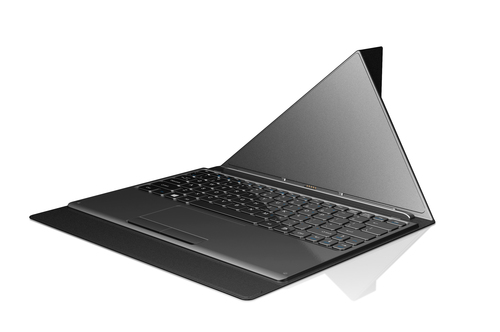

Plex 10.1" / N2807 / Intel Baytrail-M
Model Plex 10.1" / N2807 / Intel Baytrail-MPart no. 3310-9757S
88 specifications
- ProcessorIntel® Celeron®
- Memory2 GB
- Storage64 GB
- OSWindows 8.1
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel® Celeron®
- Memory
- 2 GB
- Storage
- 64 GB
- OS
- Windows 8.1
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- Zoostorm
- Category
- PCs/Workstations
- Model
- Plex 10.1" / N2807 / Intel Baytrail-M
- Part numbers
- 3310-9757S, 3310-9756B
- Also known as
- Zoostorm Plex 10.1" / N2807 / Intel Baytrail-M Intel® Celeron® 2 GB DDR3-SDRAM 64 GB SSD Windows 8.1
Specifications
88 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N2807 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.16 GHz |
| Processor frequency | 1.58 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Celeron Processor N2000 Series for Mobile |
| Processor codename | Bay Trail |
| Thermal Design Power (TDP) | 4.3 W |
| Scenario Design Power (SDP) | 2.5 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | C0 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | SSD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 313 MHz |
| On-board graphics card burst frequency | 750 MHz |
| On-board graphics card dynamic frequency (max) | 750 MHz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Headphone outputs | 1 |
| Mini HDMI ports quantity | 1 |
| Total number of SATA connectors | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8.1 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Connect Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Secure Key | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 81072 |
| Processor code | SR1W5 |
| Processor package size | 25 x 27 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
