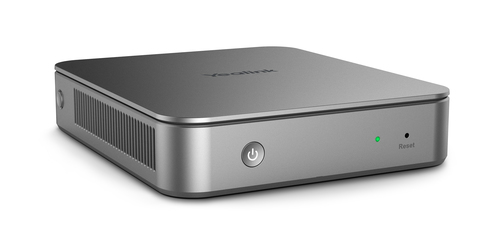

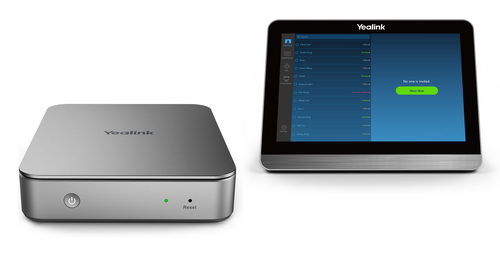

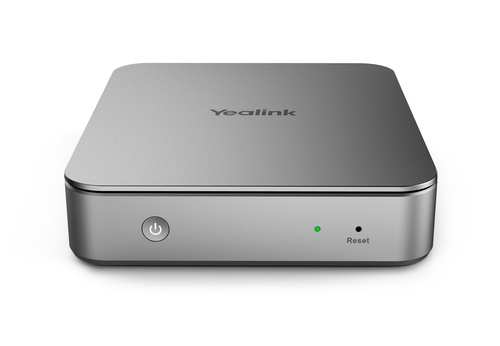

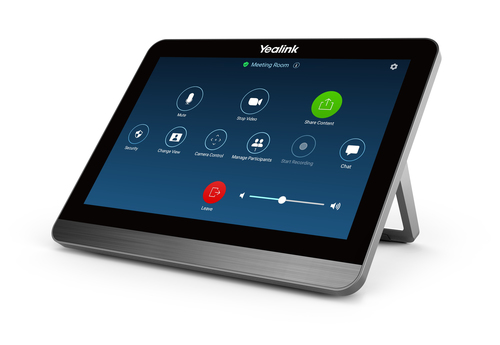

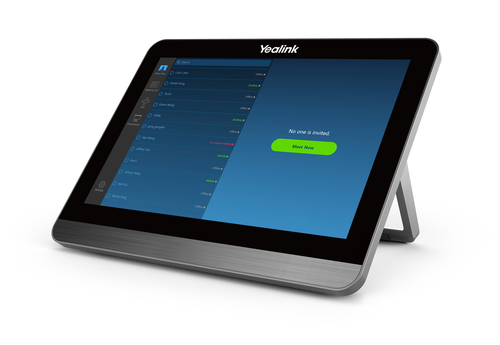

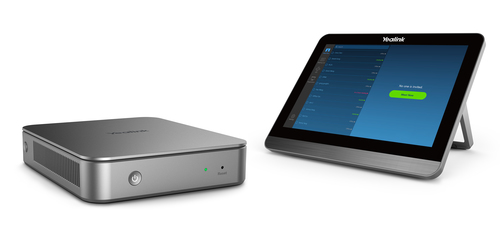

MCore + MTouch-II
Model MCore + MTouch-IIPart no. 1206606EAN 841885110657
31 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage128 GB
- TypeMini PC
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 128 GB
- Type
- Mini PC
- Brand
- Yealink
- Category
- PCs/Workstations
- Model
- MCore + MTouch-II
- Part number
- 1206606
- EAN / UPC
- 841885110657, 6938818305458
- Also known as
- Yealink MCore + MTouch-II Intel® Core™ i5 8 GB 128 GB SSD Windows 10 IoT Enterprise Mini PC Grey
Specifications
31 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory layout (slots x size) | 2 x 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | VIA UniChrome |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Bluetooth | Yes |

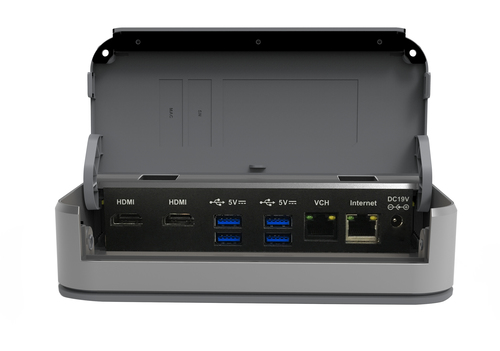

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
