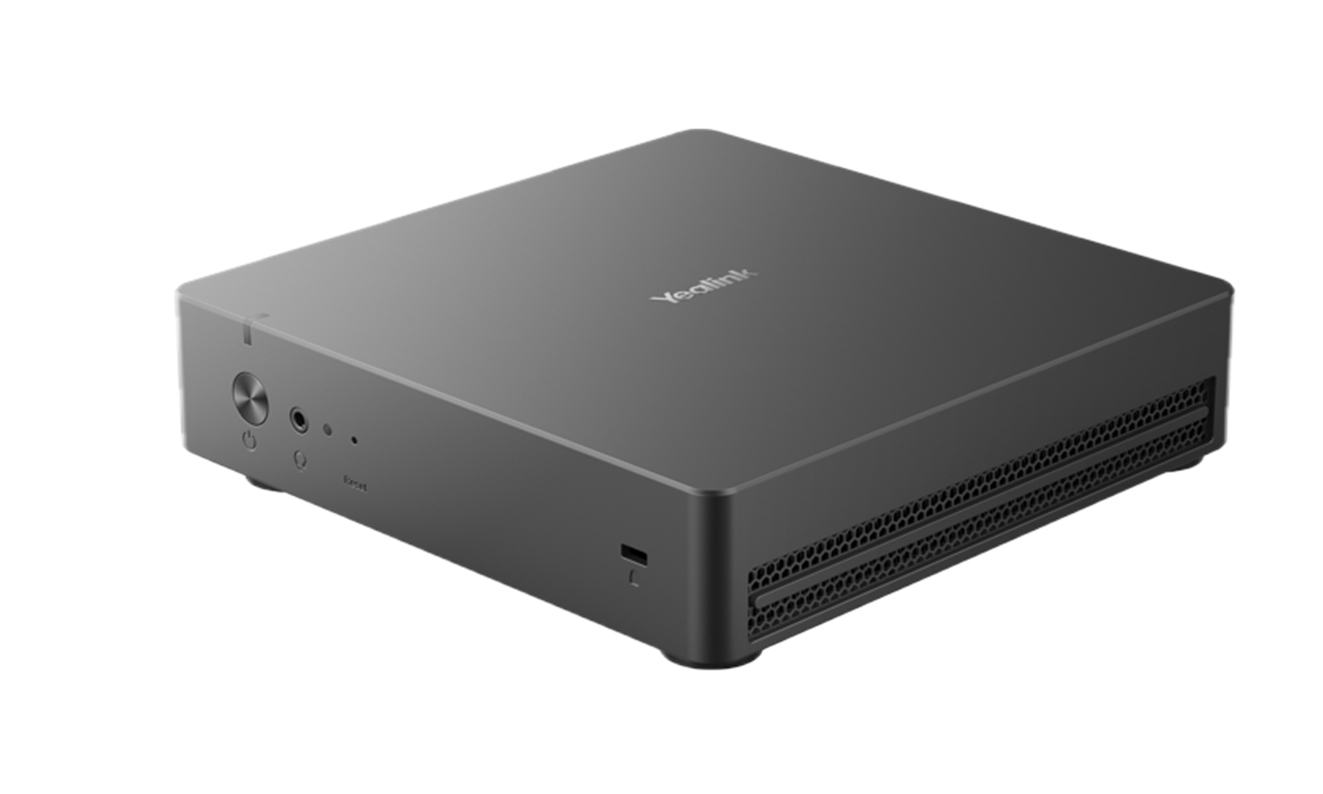

Yealink MCore 4
Model Yealink MCore 4Part no. 1306067EAN 6938818322714
49 specifications
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Yealink
- Category
- PCs/Workstations
- Model
- Yealink MCore 4
- Part number
- 1306067
- EAN / UPC
- 6938818322714
Specifications
49 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.7 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 IoT Enterprise |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 188 mm |
| Depth | 188 mm |
| Height | 47.5 mm |
