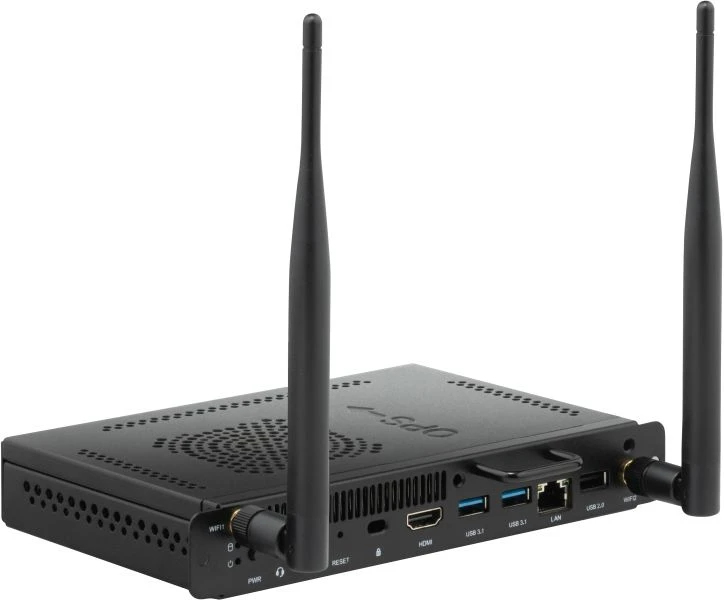

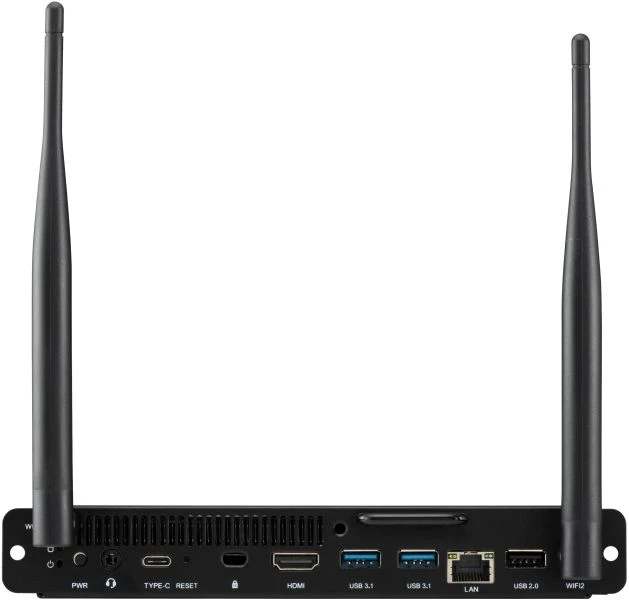

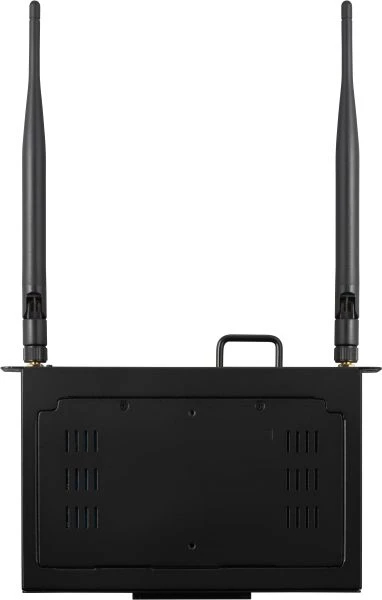

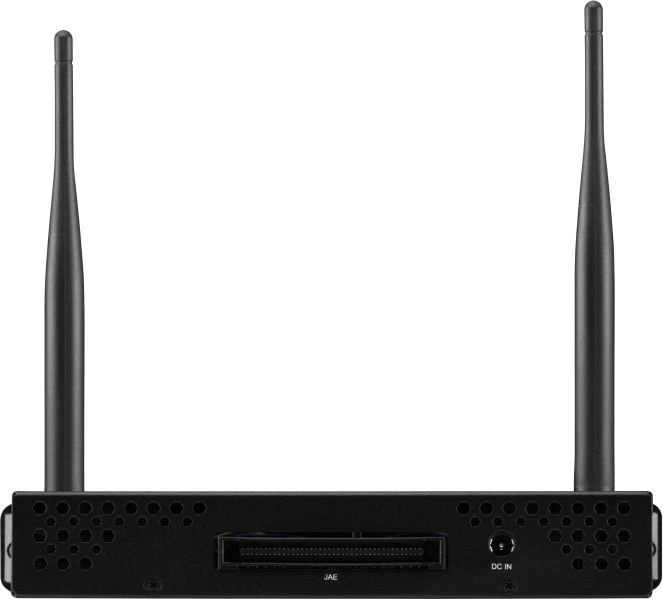

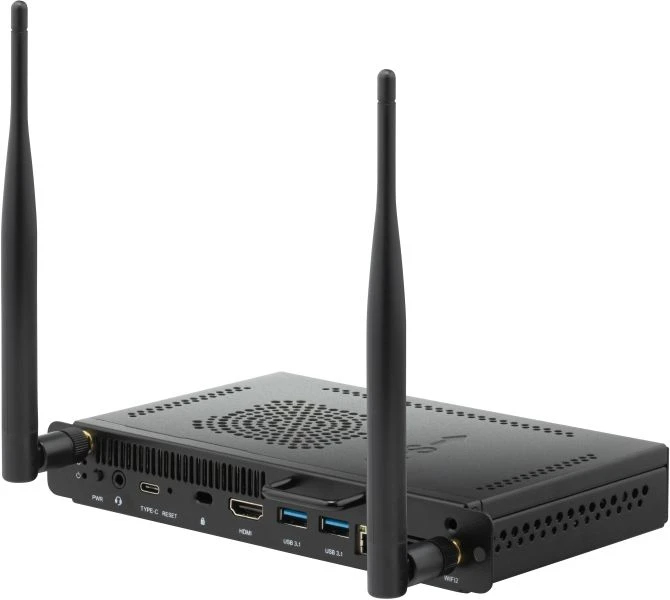

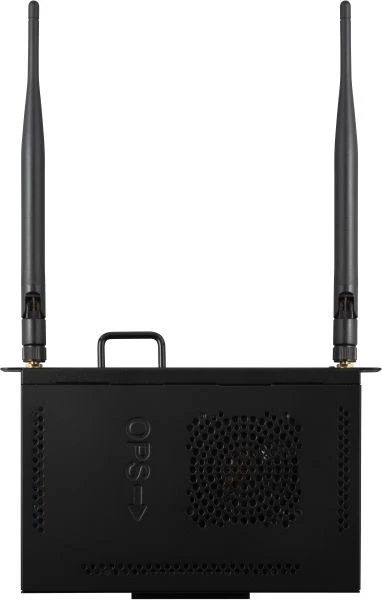

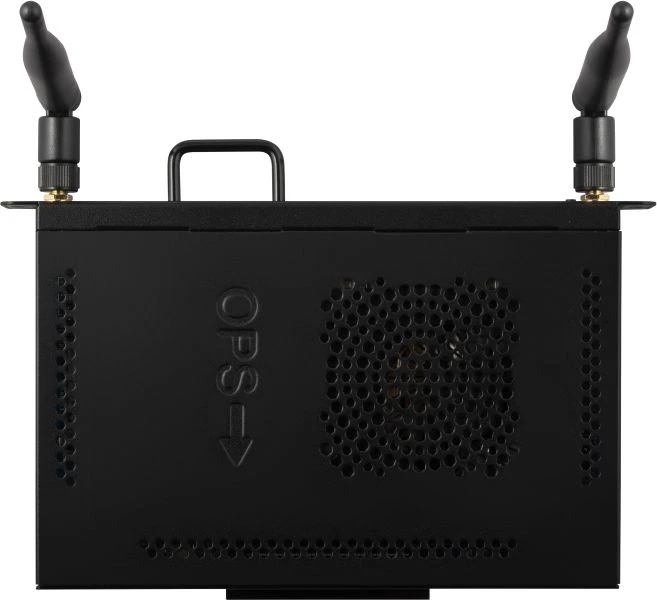

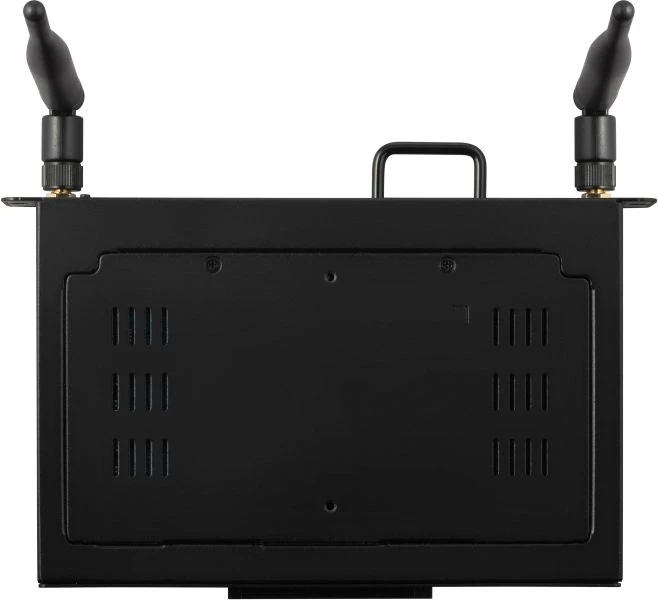

VPCF5-S33-G1 PC/workstation Intel® Core™ i5 i5-10400T
8 GB DDR4-SDRAM 256 GB SSD Slot-in PC Mini PC Black
Model VPCF5-S33-G1EAN 766907024944
84 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Viewsonic
- Category
- PCs/Workstations
- Model
- VPCF5-S33-G1
- Part number
- VPCF5-S33-G1
- EAN / UPC
- 766907024944
- Also known as
- Viewsonic VPCF5-S33-G1 PC/workstation Intel® Core™ i5 i5-10400T 8 GB DDR4-SDRAM 256 GB SSD Slot-in PC Mini PC Black
Specifications
84 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10400T |
| Processor cores | 6 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 12 MB |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.3 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express, SATA III |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel H410 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 110 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Slot-in PC |
| Colour name | Black |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Bundled software | myViewBoard for Window /Adobe reader /Winflash /Watch Dog |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 246.2 mm |
| Depth | 32.2 mm |
| Height | 263.4 mm |
| Weight | 750 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 254 mm |
| Package depth | 196 mm |
| Package height | 70 mm |
| Package weight | 1 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Certification | cTUVus, FCC, FCC ID, IC ID, CE, RED, CB, BSMI, NCC, RoHS, ErP, REACH, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 110 cm |
| Pallet gross length | 76 cm |
| Pallet gross height | 180.3 cm |
| Harmonized System (HS) code | 8471410000 |
| Products per master (outer) case | 20 pc(s) |
