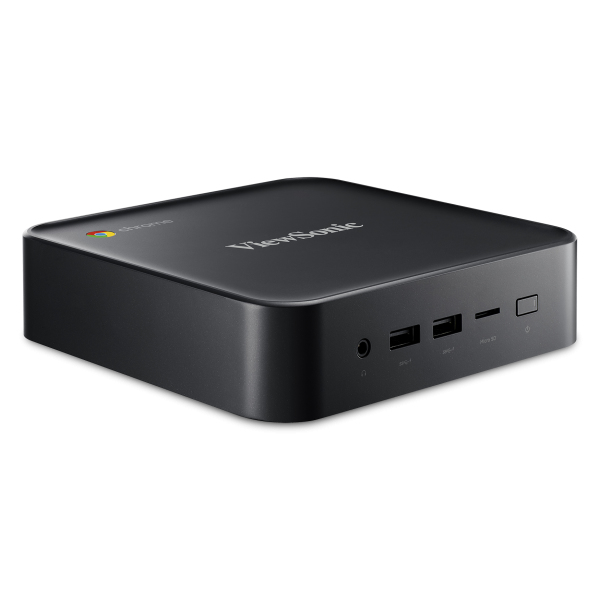

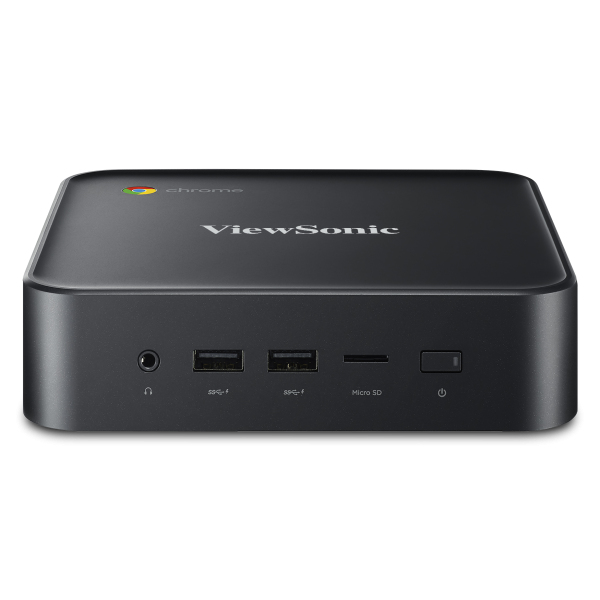

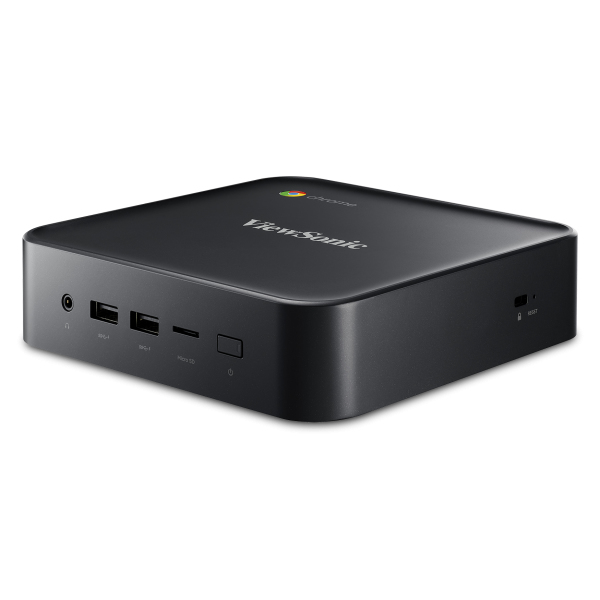

NMP760 PC/workstation Intel® Celeron® 5205U
8 GB DDR4-SDRAM 64 GB eMMC ChromeOS Mini PC Black
Model NMP760EAN 000237260383
85 specifications
- ProcessorIntel® Celeron®
- Memory8 GB
- Storage64 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 8 GB
- Storage
- 64 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Viewsonic
- Category
- PCs/Workstations
- Model
- NMP760
- Part number
- NMP760
- EAN / UPC
- 000237260383, 766907011975
- Also known as
- Viewsonic NMP760 PC/workstation Intel® Celeron® 5205U 8 GB DDR4-SDRAM 64 GB eMMC ChromeOS Mini PC Black
Specifications
85 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 5205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.9 GHz |
| Processor cache | 2 MB |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Optical drive type | No |
| Storage media | eMMC |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

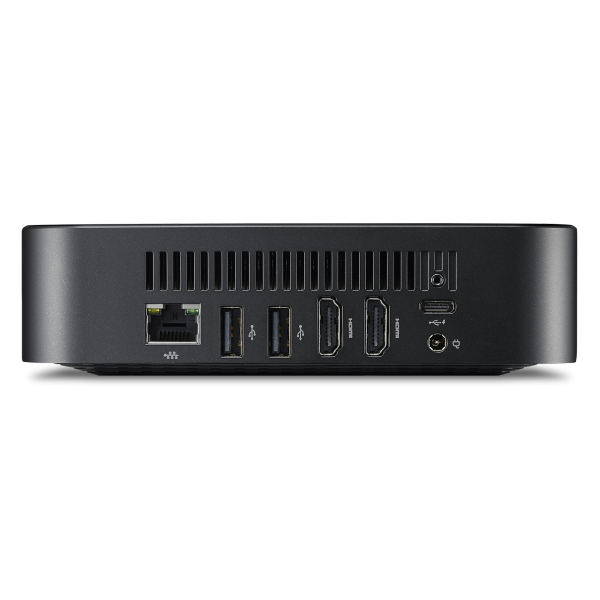

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 148.5 mm |
| Depth | 148 mm |
| Height | 41.7 mm |
| Weight | 620 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 232 mm |
| Package depth | 108 mm |
| Package height | 187 mm |
| Package weight | 1.27 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | FCC, FCC ID, IC ID, CB, BSMI, NCC, PSB, iDA, RCM, SDPPI, EAC, CCC |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 115 cm |
| Harmonized System (HS) code | 8471410000 |
| Products per master (outer) case | 5 pc(s) |
