Y PC MICRO 6100V1 B-Ware
Model Y PC MICRO 6100V1 B-WarePart no. 1008413EAN 4039407091133
62 specifications
- ProcessorIntel Core Ultra 5
- Memory16 GB
- Storage500 GB
- SpeedWi-Fi 6E (802.11ax)
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- Intel Core Ultra 5
- Memory
- 16 GB
- Storage
- 500 GB
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- Y PC MICRO 6100V1 B-Ware
- Part number
- 1008413
- EAN / UPC
- 4039407091133
- Also known as
- TERRA Y PC MICRO 6100V1 B-Ware Intel Core Ultra 5 125H 16 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Micro PC
Specifications
62 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 18 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives supported | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| RAID support | No |
| Storage options | 1x M.2 2280 PCIe Gen4 x5 ¦ 1x M.2 2242 PCIe Gen4 x4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® Graphics |
| Resolution description | HDMI™ max 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) ¦ HDMI™ max 7680 x 4320 @ 60Hz (HDMI2.1 FRL) ¦ USB 4.0 Gen3x2 Type-C DP supports DP 1.4a max. 7680 x 4320 @ 60Hz / 3840x2400 @ 120Hz |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel I226-V, Intel I219V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

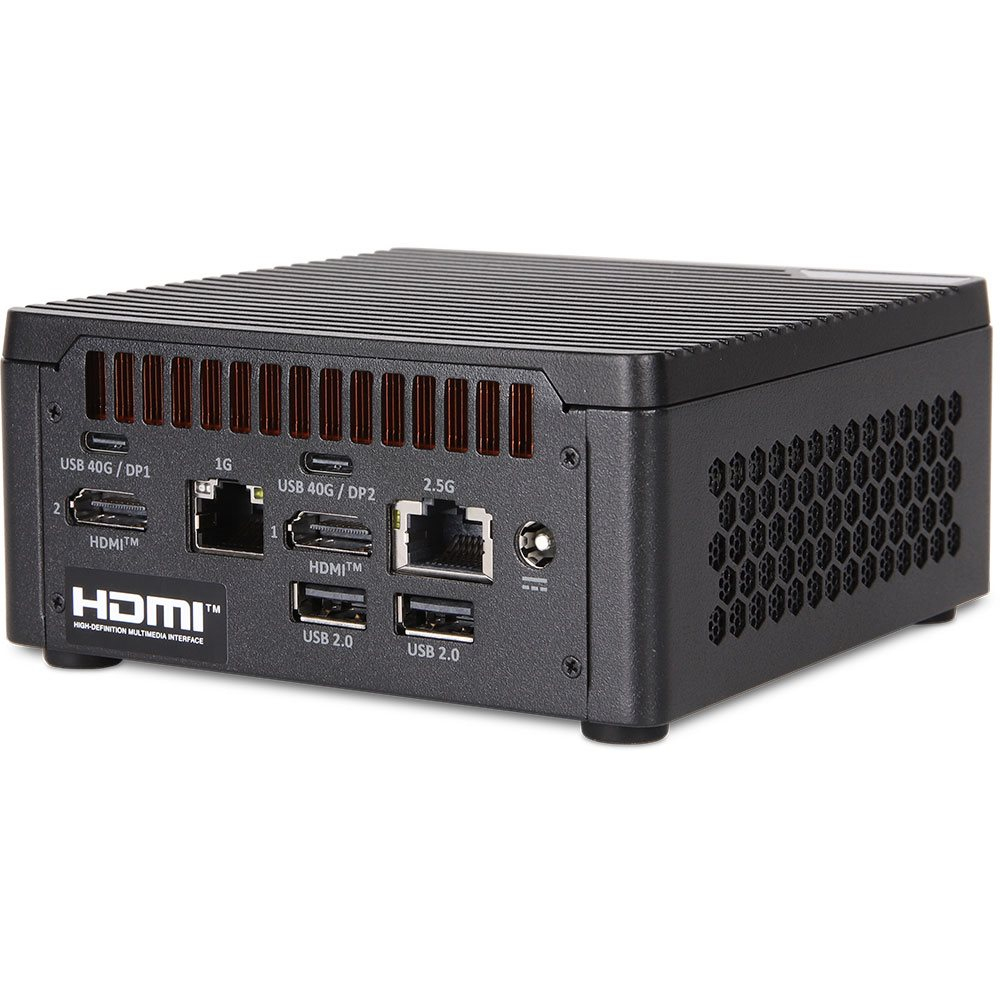

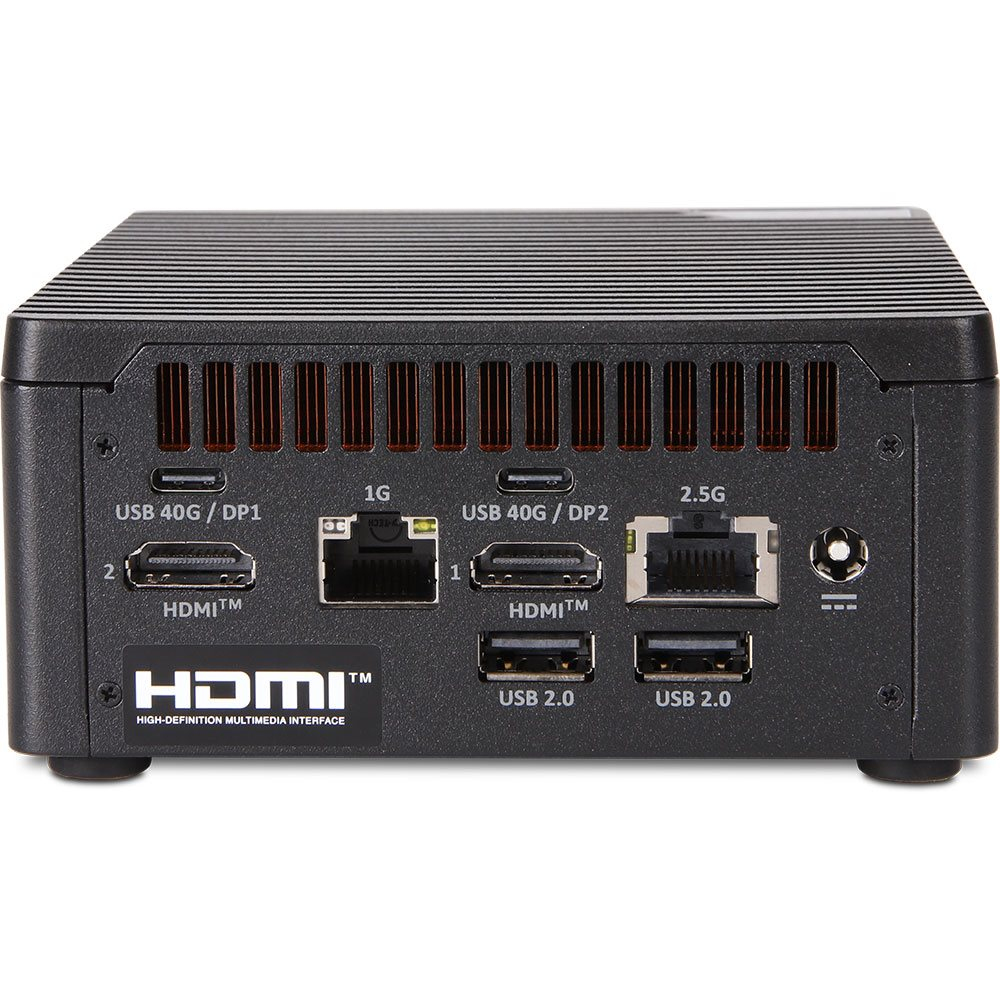

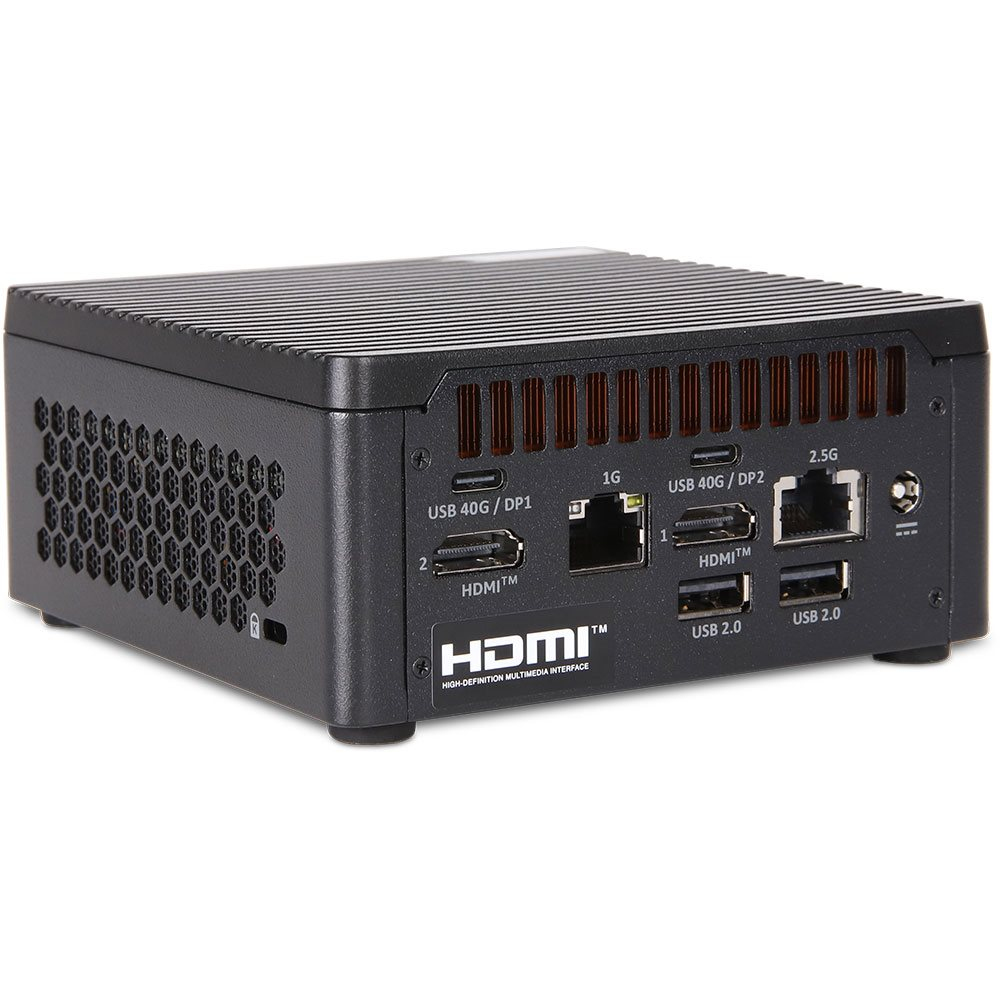

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (off) | 0.4 W |
| Power consumption (standby) | 2.6 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro PC |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 10, Windows 11 |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 18 - 28 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 115 mm |
| Height | 50.6 mm |
| Weight | 600 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| VESA mount included | Yes |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
