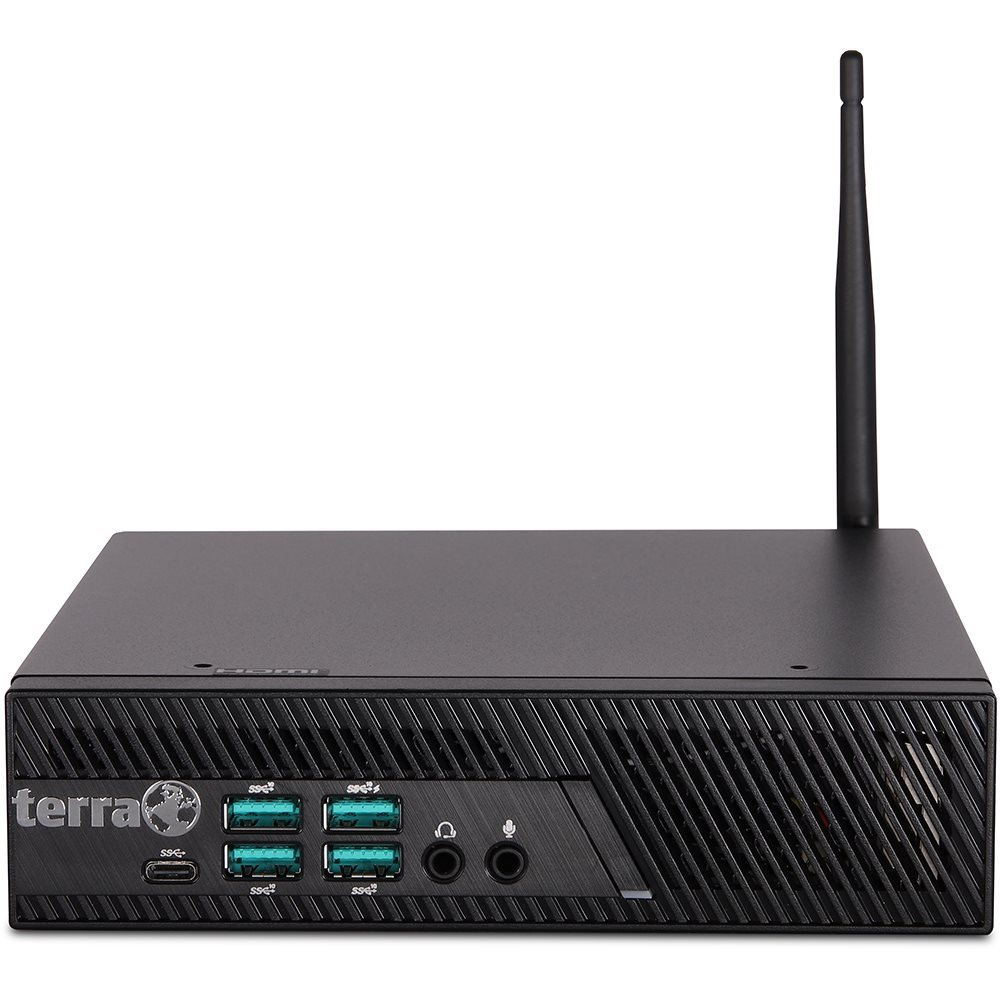

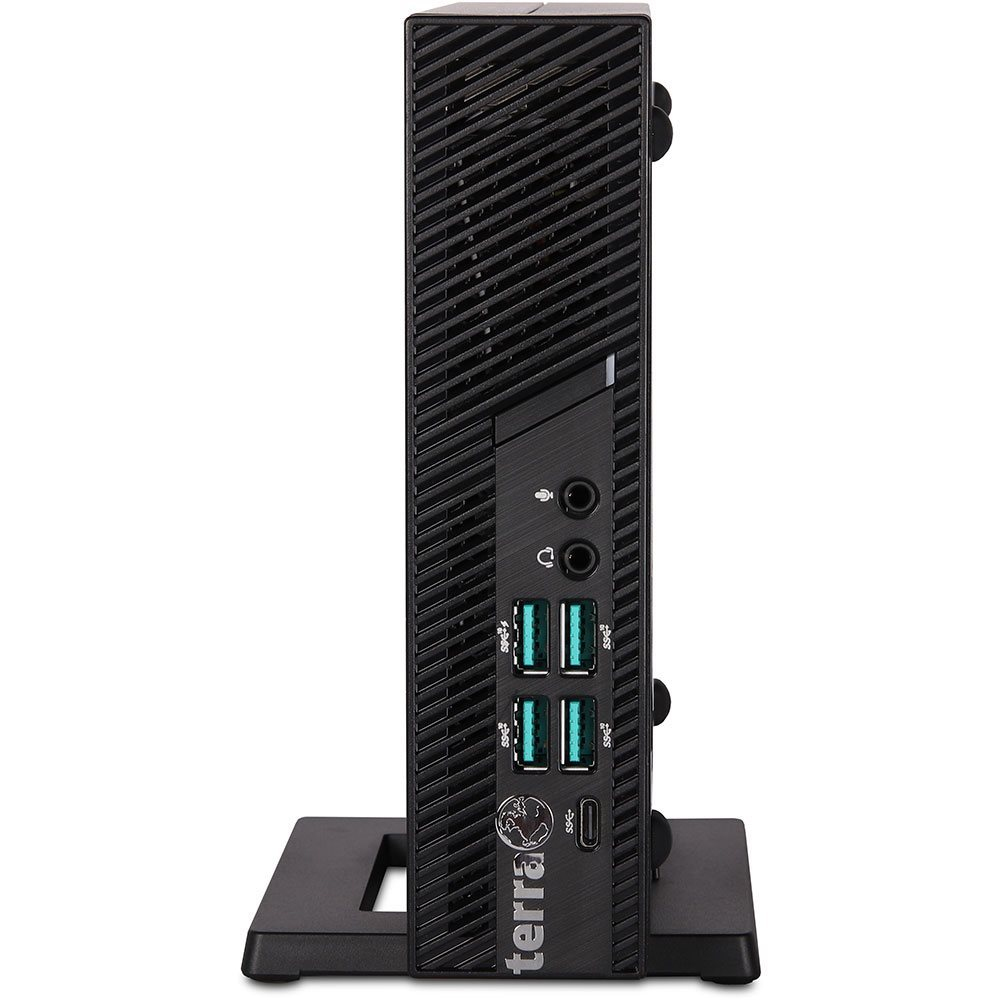

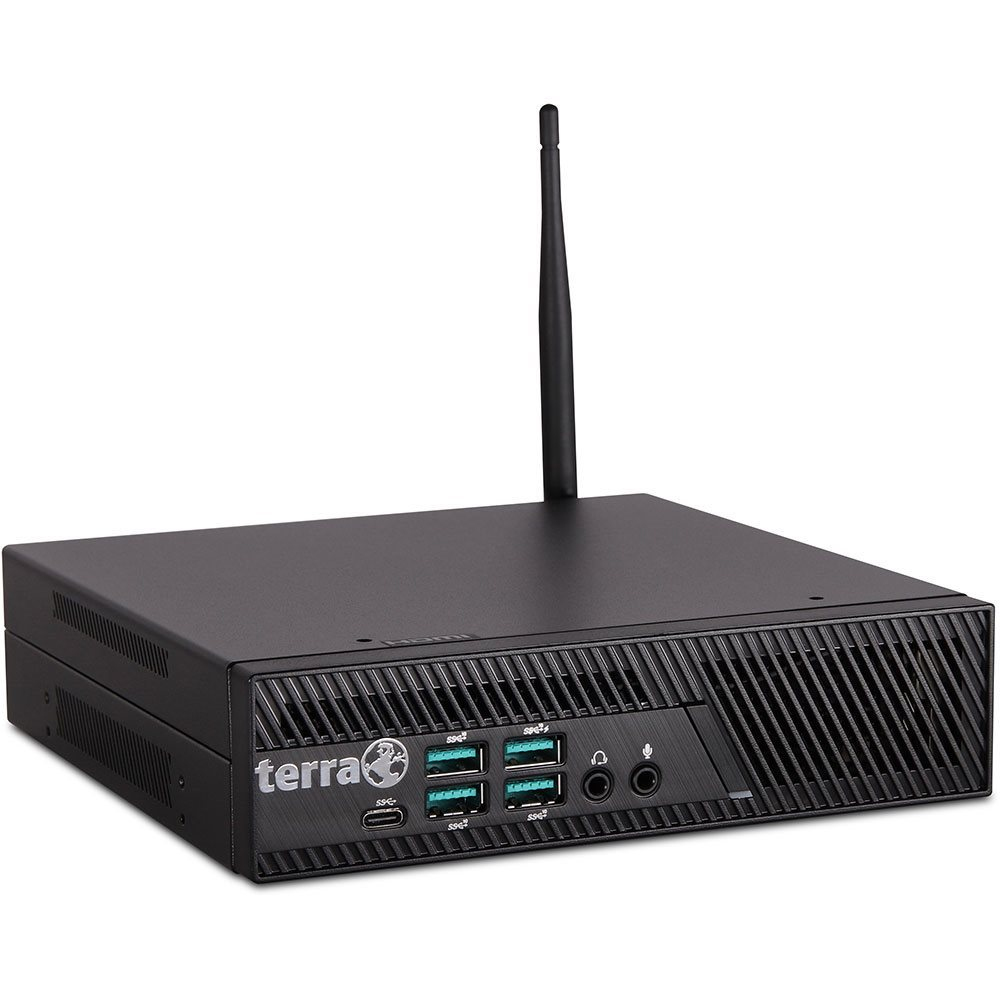

WW100102 PC/workstation Intel® Core™ i5 i5-10400
16 GB DDR4-SDRAM 480 GB SSD Windows 10 Pro Mini PC Black
Model WW100102EAN 4039407081028
84 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage480 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 480 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- WW100102
- Part number
- WW100102
- EAN / UPC
- 4039407081028
- Also known as
- TERRA WW100102 PC/workstation Intel® Core™ i5 i5-10400 16 GB DDR4-SDRAM 480 GB SSD Windows 10 Pro Mini PC Black
Specifications
84 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10400 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives supported | 2 |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| NVMe | Yes |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
| Card reader integrated | No |
| RAID support | No |
| Storage options | 1x M.2 (2280) PCIe/NVMe Gen3/ Gen4 SSD (Gen4 Support nur mit Verwendung einer 11th Gen CPU, sonst Gen3.0 speed) ¦ 1x 2.5" SATA-SSD oder HDD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Resolution description | Display Port 1.2 bis 3840x2160 @ 60Hz |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel B560 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Sound pressure level | 21.7 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel I219V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Number of antenna connectors | 1 |

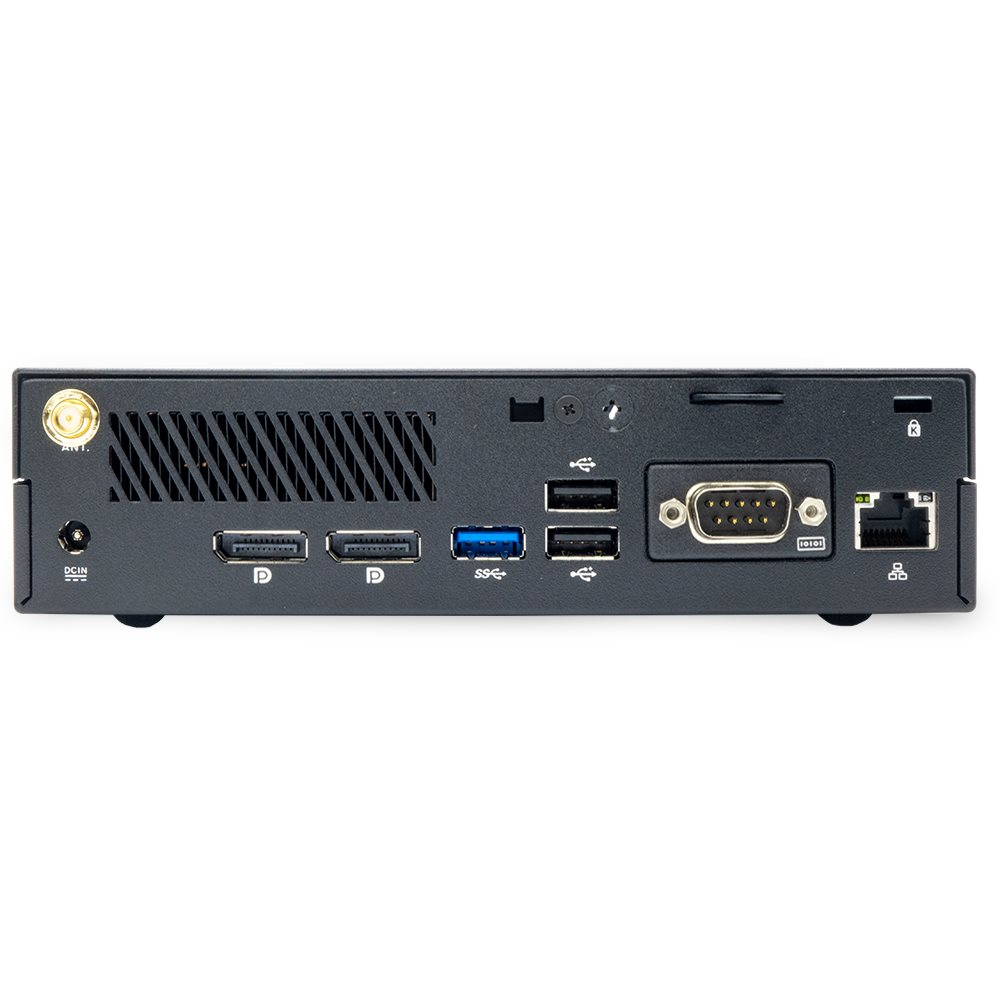

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 150 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (off) | 0.4 W |
| Power consumption (standby) | 1.7 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Windows 11 free upgrade | Yes |
| Compatible operating systems | Windows 10, Windows 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1750 mm |
| Depth | 1750 mm |
| Height | 420 mm |
| Weight | 1185 kg |

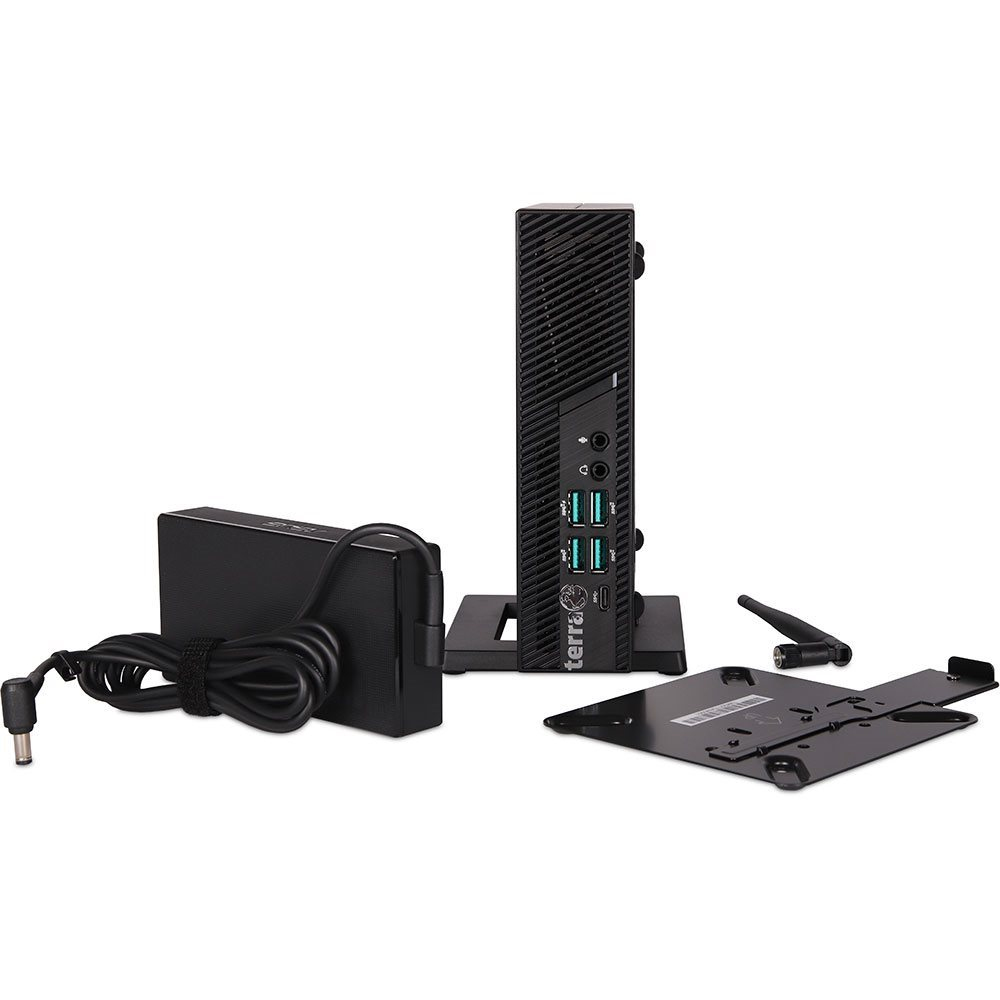

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
