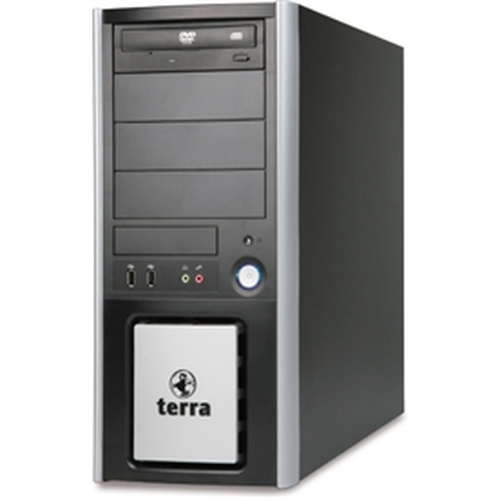

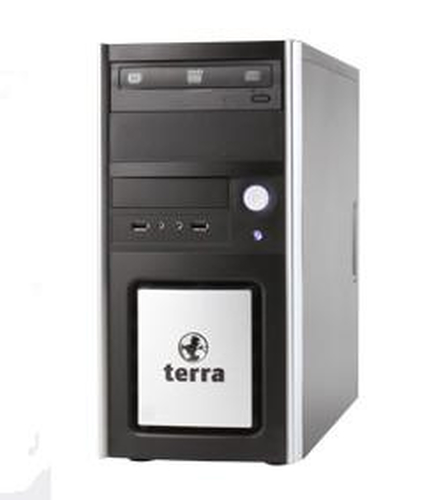

TERRA WORKSTATION 8600 MAXIMUS

Model TERRA WORKSTATION 8600 MAXIMUSPart no. 1000929EAN 4039407020300

130 specifications

ProcessorIntel® Xeon® E5 V2 Family
Memory64 GB
Storage1.24 TB
TypeWorkstation
OSWindows 7 Professional
ColourBlack

See all specifications

Overview

Processor: Intel® Xeon® E5 V2 Family
Memory: 64 GB
Storage: 1.24 TB
Type: Workstation
OS: Windows 7 Professional
Colour: Black

Brand: TERRA
Category: PCs/Workstations
Model: TERRA WORKSTATION 8600 MAXIMUS
Part number: 1000929
EAN / UPC: 4039407020300
Also known as: TERRA WORKSTATION 8600 MAXIMUS Intel® Xeon® E5 V2 Family E5-2620V2 64 GB DDR3-SDRAM 1.24 TB HDD+SSD Windows 7 Professional Tower Black

Specifications

130 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 V2 Family
Processor model	E5-2620V2
Processor cores	6
Processor threads	12
Processor boost frequency	2.6 GHz
Processor frequency	2.1 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	7.2 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-2600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	80 W
Tcase	71 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of QPI links	2
Number of processors installed	2
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	64 GB
Maximum internal memory	256 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	8 x 8 GB
Memory slots	8x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1.24 TB
Optical drive type	DVD±RW
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
Number of SSDs installed	1
SSD capacity	240 GB
SSD interface	SATA III
RAID support	Yes
RAID levels	0, 1, 5, 10

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 (Gen 3.x) slots	7

Power

Specification	Value
Power supply	1200 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	5
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Pre-installed software	Microsoft Windows Essentials
Trial software	Norton Internet Security
Bundled software	Adobe Reader

Processor special features

Specification	Value
CPU configuration (max)	2
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	46 bit
Processor ARK ID	75789
Processor package size	52.5 x 45 mm
Scalability	2S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C

Weight & dimensions

Specification	Value
Width	235 mm
Depth	630 mm
Height	635 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes

Keyboard

Specification	Value
Keyboard layout	QWERTZ
