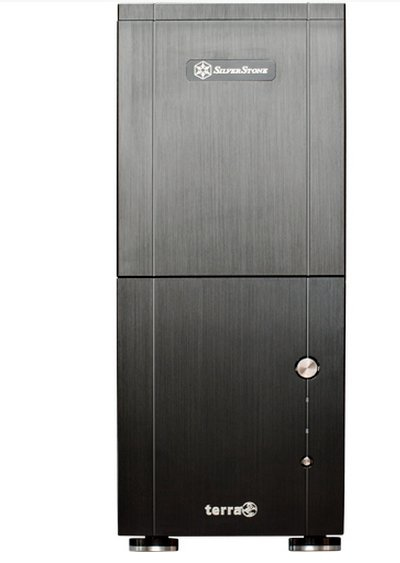

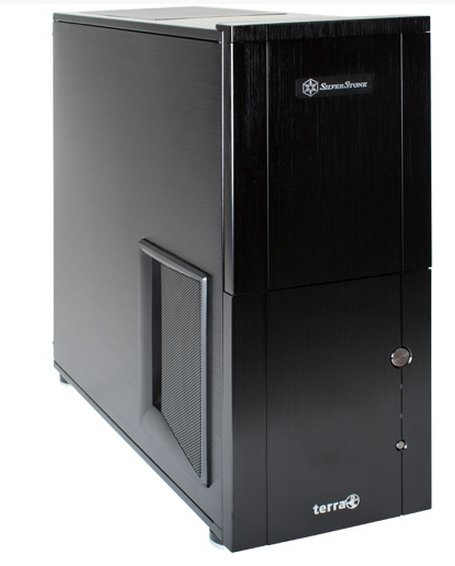

TERRA WORKSTATION 8000 CS6

Model TERRA WORKSTATION 8000 CS6Part no. 1000925EAN 4039407019106

119 specifications

Overview

Brand: TERRA
Category: PCs/Workstations
Model: TERRA WORKSTATION 8000 CS6
Part number: 1000925
EAN / UPC: 4039407019106
Also known as: TERRA WORKSTATION 8000 CS6 Intel® Core™ i7 X-series i7-4820K 16 GB DDR3-SDRAM 2.12 TB HDD+SSD NVIDIA® Quadro® K4000 Windows 7 Professional Tower Black

119 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7 X-series
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4820K
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.7 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	DMI2
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	130 W
Tcase	66.8 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Stepping	S1
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
ECC supported by processor	No

Specification	Value
Discrete graphics card model	NVIDIA® Quadro® K4000
Discrete graphics card memory	2 GB

Specification	Value
Product type	Workstation

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2
DC-in jack	Yes

Specification	Value
Power supply	650 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Pre-installed software	Microsoft Windows Essentials 2012
Trial software	Norton Internet Security
Bundled software	Adobe Reader

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Enhanced Halt State	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Processor ARK ID	77781
Processor code	SR1AU
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AES, AVX, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
