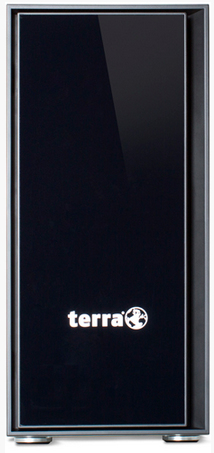

TERRA WORKSTATION 7700 MAXIMUS
Model TERRA WORKSTATION 7700 MAXIMUSPart no. 1000930EAN 4039407020317
138 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage1.18 TB
- GraphicsNVIDIA® Quadro® K600
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 1.18 TB
- Graphics
- NVIDIA® Quadro® K600
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- TERRA WORKSTATION 7700 MAXIMUS
- Part number
- 1000930
- EAN / UPC
- 4039407020317
- Also known as
- TERRA WORKSTATION 7700 MAXIMUS Intel® Xeon® E5 Family E5-2609 8 GB DDR3-SDRAM 1.18 TB HDD+SSD NVIDIA® Quadro® K600 Windows 7 Professional Midi Tower Black
Specifications
138 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2609 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.5 GHz |
| Processor frequency | 2.4 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.4 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 |
| Processor codename | Sandy Bridge EP |
| Thermal Design Power (TDP) | 80 W |
| Tcase | 70 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 2 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 24 |
| Stepping | M1 |
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x DIMM |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.18 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| Number of SSDs installed | 1 |
| SSD capacity | 180 GB |
| SSD interface | SATA III |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® Quadro® K600 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C602 |
| Motherboard form factor | ATX |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 3 |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Pre-installed software | Microsoft Windows Essentials 2012 |
| Trial software | Norton Internet Security, Microsoft Office |
| Bundled software | Adobe Reader |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Secure Key | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 46 bit |
| Processor ARK ID | 64588 |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 21 mm |
| Depth | 50.5 mm |
| Height | 41.5 mm |
| Weight | 13.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 18.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, SO9001 PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0, EN60950, EN55022, EN55024, EN61000-3-2/3, 89/336/EEC |
