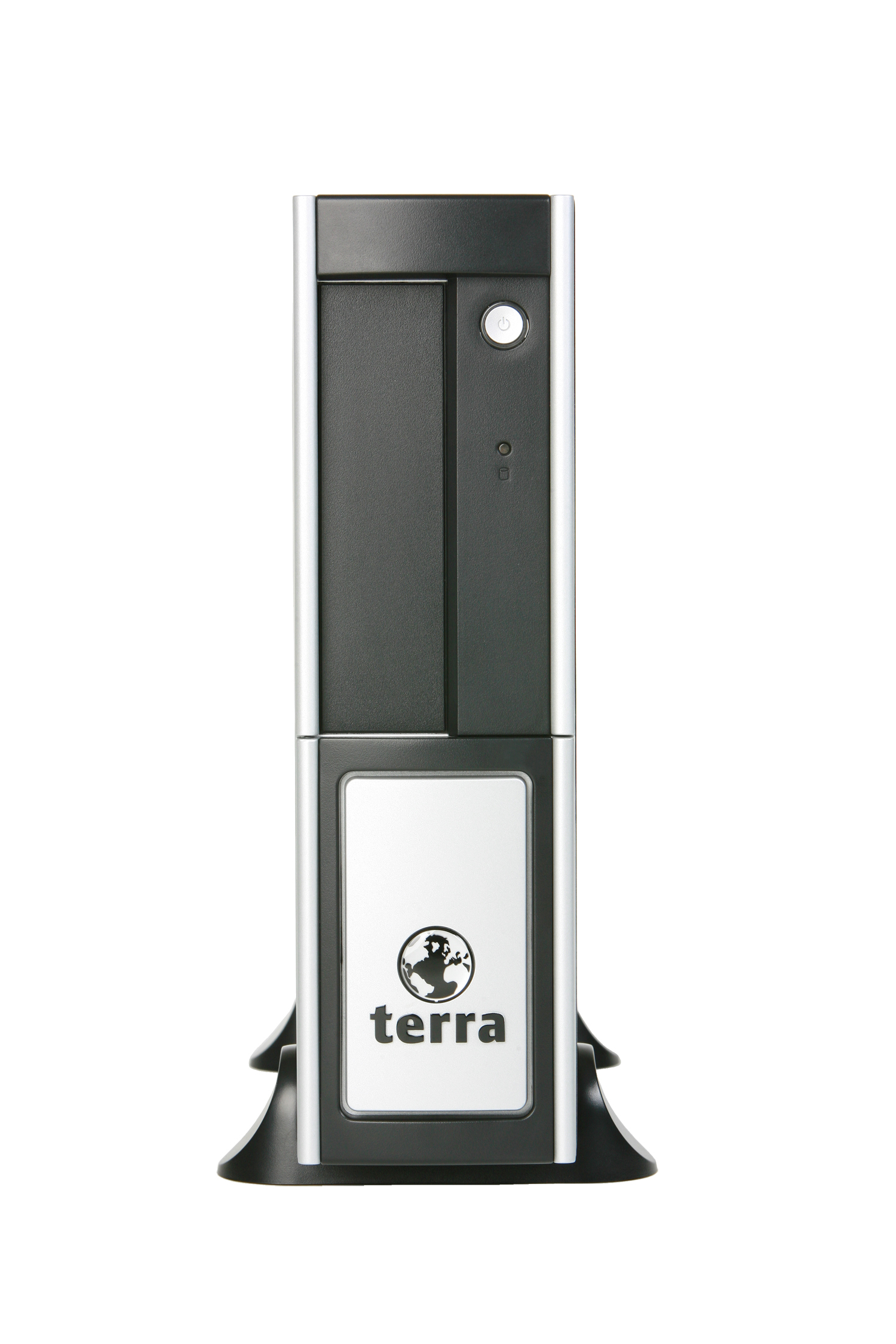

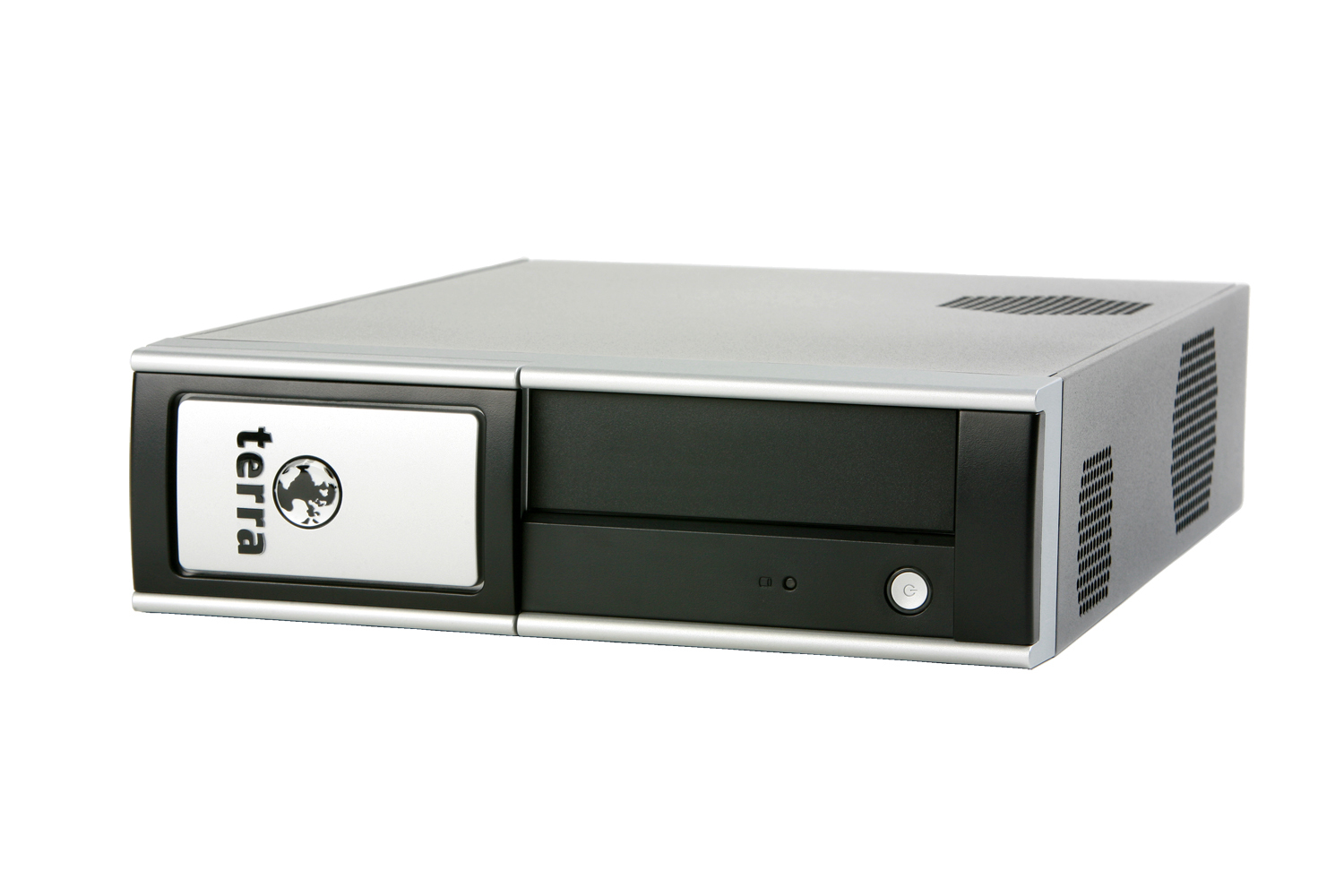

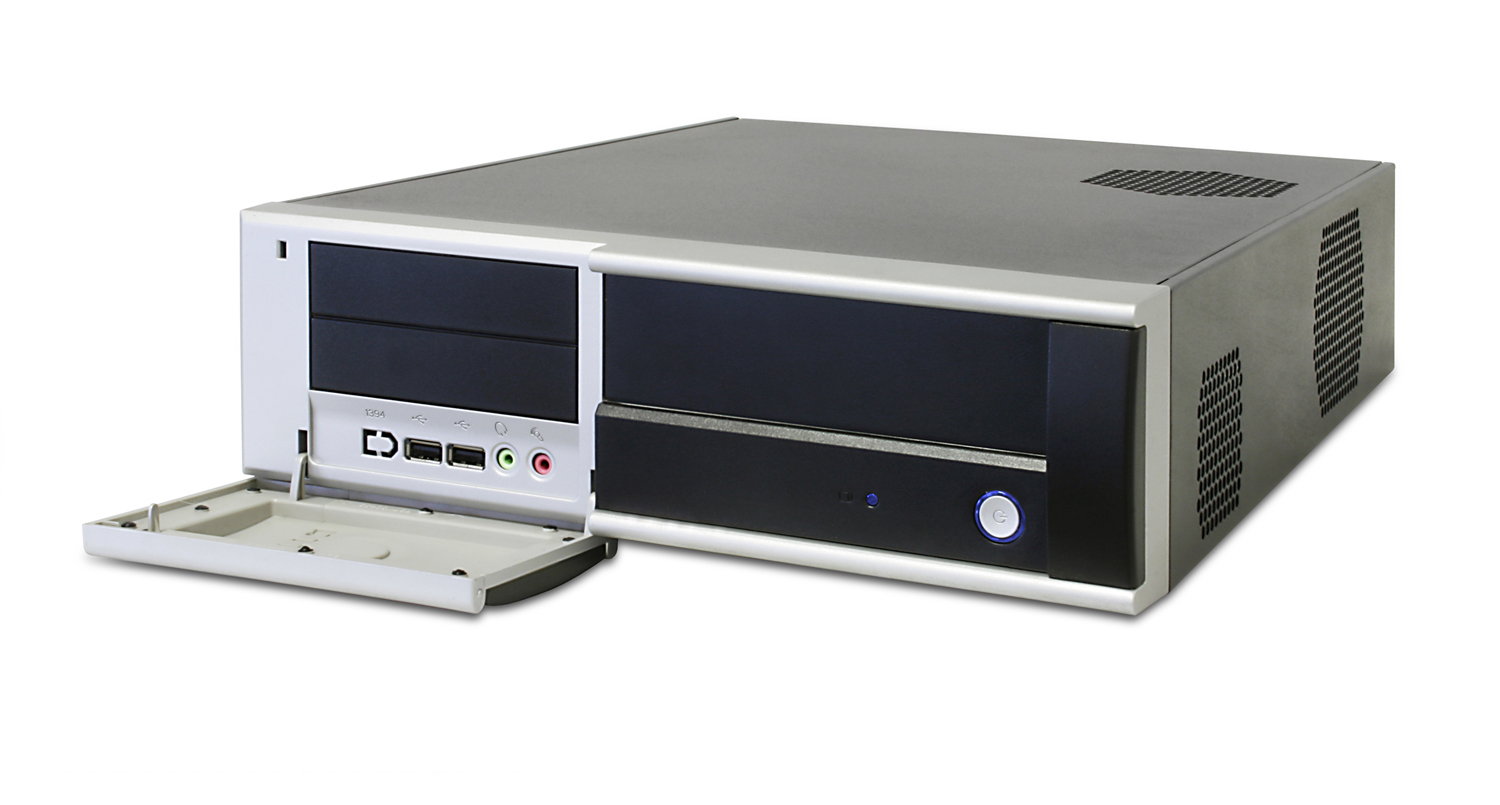

TERRA Workstation 6100
Model TERRA Workstation 6100Part no. 1000919EAN 4039407040216
136 specifications
- ProcessorIntel® Core™ i5
- Memory4 GB
- Storage500 GB
- TypeWorkstation
- OSWindows 7 Professional
- Weight9.5 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 4 GB
- Storage
- 500 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Weight
- 9.5 kg
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- TERRA Workstation 6100
- Part numbers
- 1000919, FR1000949, CH1000949, 1000962, NL1000913, FR1000913
- EAN / UPC
- 4039407040216, 4039407015399, 4039407027200
- Also known as
- TERRA Workstation 6100 Intel® Core™ i5 i5-650 4 GB DDR3-SDRAM Windows 7 Professional SFF Black, Silver
Specifications
136 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 |
| Processor model | i5-650 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.46 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 2.5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-600 Desktop Series |
| Processor codename | Clarkdale |
| Thermal Design Power (TDP) | 73 W |
| Tcase | 72.6 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1156 (Socket H) |
| Number of Processing Die Transistors | 382 M |
| Processing Die size | 81 mm² |
| CPU multiplier (bus/core ratio) | 24 |
| Stepping | C2 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3 1066/1333 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1333 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 733 MHz |
| Maximum graphics card memory | 1.024 GB |
| Graphics card | Quadro 600 |
| Graphics card family | NVIDIA |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® P55 Express |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
| DVI-I ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply type | Forton FSP TFX-300SAV |
| Power supply | 300 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black, Silver |
| External drive bays | 1 x 5.25", 2 x 3.5" |
| Internal drive bays | 1 x 3.5" |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Trial software | Kaspersky Internet Security |
| Bundled software | Adobe Reader |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 43546 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD VIA VT1708S |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 10 - 75% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 326 mm |
| Depth | 433 mm |
| Height | 95 mm |
| Weight | 9.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EnergyStar, ISO 9001 |
Keyboard
| Specification | Value |
|---|---|
| Keyboard number of keys | 105 |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Asus |
