TERRA PC-MINI 6000V2 Silent

Model PC-MINI 6000V2 SilentPart no. CH1009912

140 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage128 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 128 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: TERRA
Category: PCs/Workstations
Model: PC-MINI 6000V2 Silent
Part number: CH1009912
Also known as: TERRA PC-MINI 6000V2 Silent Intel® Core™ i5 i5-4590T 8 GB DDR3-SDRAM 128 GB SSD Windows 8.1 Pro Mini Tower Mini PC Black

Specifications

140 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4590T
Processor cores	4
Processor threads	4
Processor boost frequency	3 GHz
Processor frequency	2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor codename	Haswell
Thermal Design Power (TDP)	35 W
Tcase	66.35 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	128 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel® H81

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

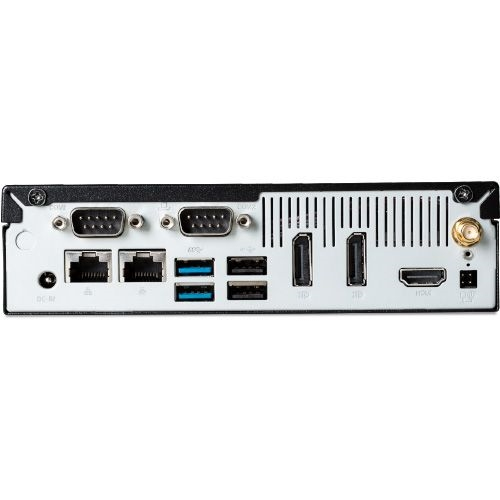

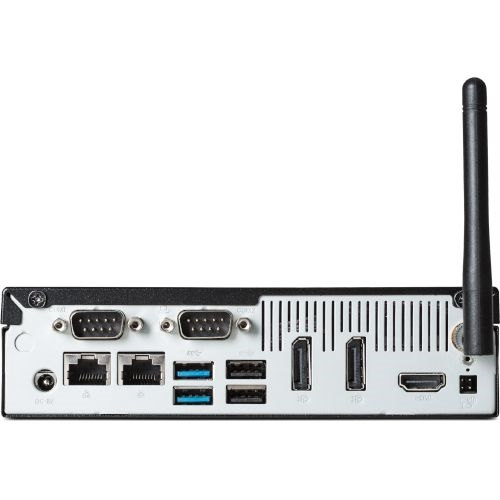

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	2

Power

Specification	Value
Power supply	90 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	1.6 W
Power consumption (typical)	21 W

Design

Specification	Value
Chassis type	Mini Tower
Panel mounting interface	75 x 75,100 x 100 mm
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	78928
Processor code	SR1S6
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1.6 kg

Packaging data

Specification	Value
Package weight	2.3 kg

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes

Certificates

Specification	Value
Certification	CE, PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0, EnergyStar, EN60950, EN55022, EN55024, EN61000-3-2 / 3, 89/336 / ECC
