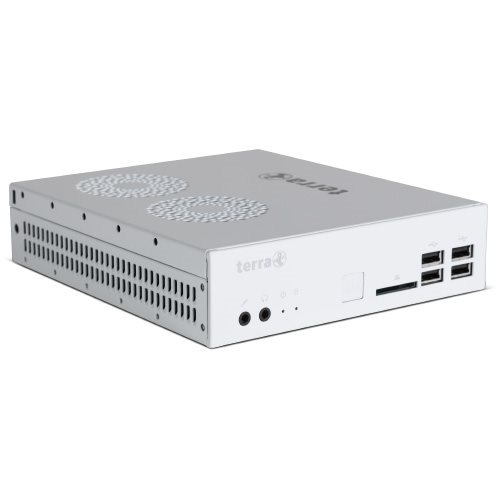

TERRA PC-Mini 5000V2wh

Model PC-Mini 5000V2whPart no. 1009590EAN 4039407041800

132 specifications

ProcessorIntel® Core™ i3
Memory8 GB
Storage240 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 8 GB
Storage: 240 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: TERRA
Category: PCs/Workstations
Model: PC-Mini 5000V2wh
Part number: 1009590
EAN / UPC: 4039407041800
Also known as: TERRA PC-Mini 5000V2wh Intel® Core™ i3 i3-4170 8 GB DDR3-SDRAM 240 GB SSD Windows 10 Pro Mini Tower Mini PC Aluminium

Specifications

132 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4170
Processor cores	2
Processor threads	4
Processor frequency	3.7 GHz
Processor cache	3 MB
Processor cache type	L3
Bus type	DMI2
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	54 W
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.5 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	240 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	2
Number of SSDs installed	1
SSD capacity	240 GB
SSD interface	SATA III
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	41
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	Mini PC
Market positioning	Business
Motherboard chipset	Intel® H81

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

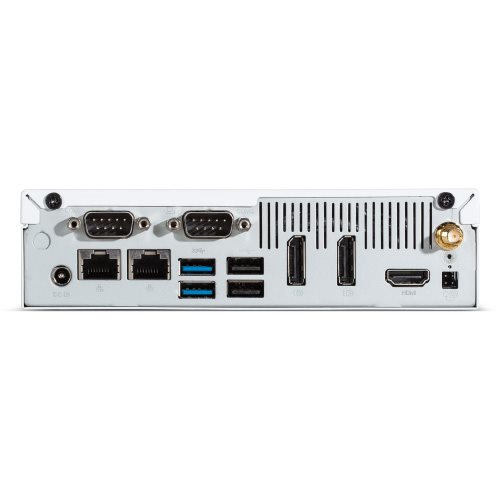

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Serial ports quantity	2

Power

Specification	Value
Power supply	90 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	1.6 W

Design

Specification	Value
Chassis type	Mini Tower
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Aluminium

Software

Specification	Value
Operating system installed	Windows 10 Pro
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77490
Processor code	SR1PL
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	900 g

Packaging content

Specification	Value
AC adapter included	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CE, PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0, EnergyStar, EN60950, EN55022, EN55024, EN61000-3-2 / 3, 89/336 / ECC
