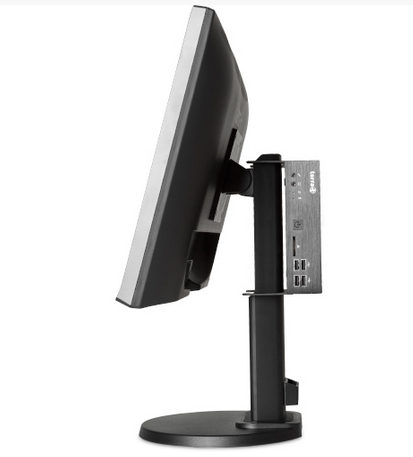

TERRA PC-MINI 5000V2

Model TERRA PC-MINI 5000V2Part no. 1009450

140 specifications

Overview

Brand: TERRA
Category: PCs/Workstations
Model: TERRA PC-MINI 5000V2
Part number: 1009450
Also known as: TERRA PC-MINI 5000V2 Intel® Core™ i3 i3-4170 4 GB DDR3-SDRAM 120 GB SSD Windows 7 Professional Mini PC Black

140 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4170
Processor cores	2
Processor threads	4
Processor frequency	3.7 GHz
Processor cache	3 MB
Processor cache type	L3
Bus type	DMI2
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-4100 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	54 W
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes
Memory voltage supported by processor	1.5 V

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	41
On-board graphics card OpenGL version	4.3

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H81

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DC-in jack	Yes
Serial ports quantity	2

Specification	Value
Power supply	90 W
Power supply input voltage	100/240 V

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77490
Processor code	SR1PL
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Conflict-Free processor	Yes
