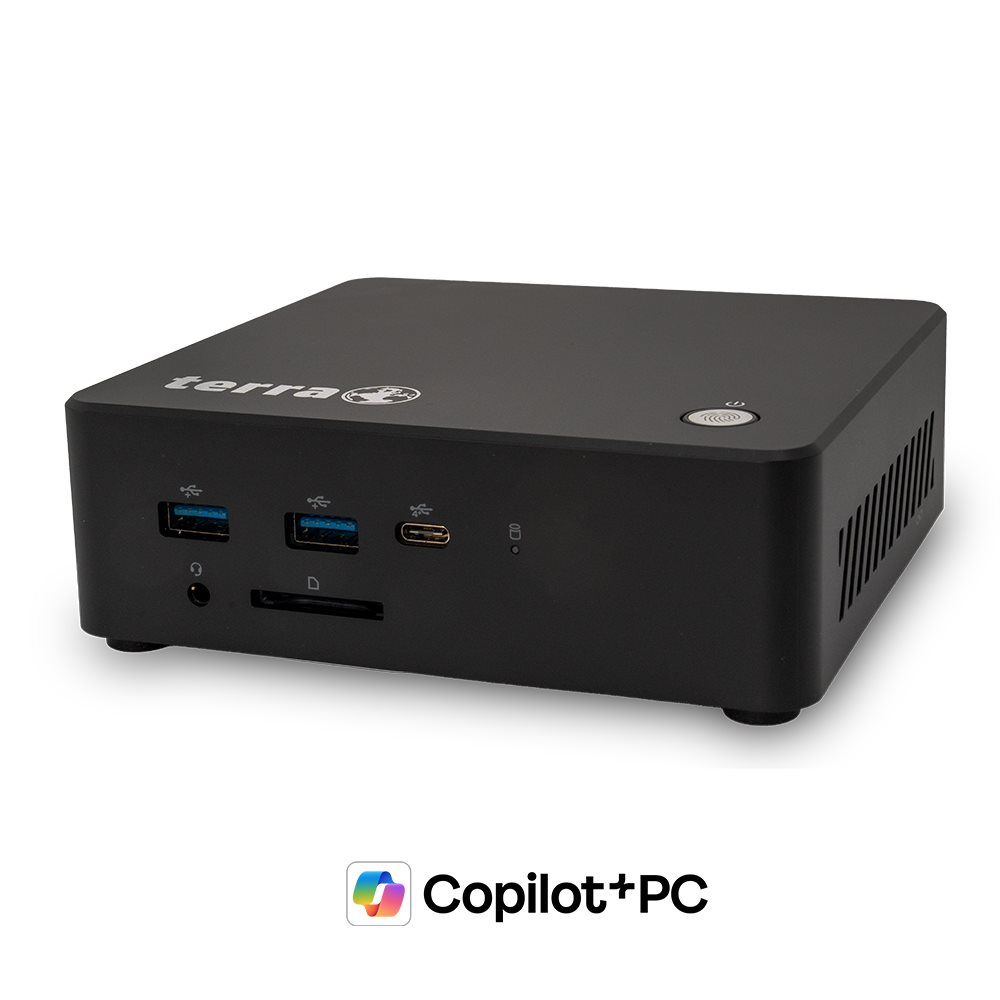

PC MICRO 7000A
Model PC MICRO 7000APart no. 1000184EAN 4039407090785
100 specifications
- ProcessorAMD Ryzen™ AI 7
- Memory16 GB
- Storage500 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ AI 7
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- PC MICRO 7000A
- Part number
- 1000184
- EAN / UPC
- 4039407090785
- Also known as
- TERRA PC MICRO 7000A AMD Ryzen™ AI 7 350 16 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Micro PC Black
Specifications
100 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ AI 7 |
| Processor model | 350 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 2 GHz |
| L2 cache | 8 MB |
| L3 cache | 16 MB |
| Processor cache type | L2 & L3 |
| Number of processors installed | 1 |
| Processor socket | FP8 |
| Maximum turbo power | 54 W |
| Processor base power | 28 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 66 TOPs |
| NPU performance up to | 50 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives supported | 2 |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| RAID support | No |
| Storage options | 2x M.2 2280 PCIe Gen4x4 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 860M |
| On-board graphics card cores | 8 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
| Resolution description | HDMI 4096x2160 @ 60Hz (4K), Display Port 3840x2160 @ 60Hz (4K) |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Medical |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Realtek RTL8111H, Dragon RTL8125BG |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (off) | 0.26 W |
| Power consumption (standby) | 0.82 W |
| Power consumption (typical) | 5 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro PC |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 11 (64-Bit) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 140 mm |
| Height | 48.3 mm |
| Weight | 650 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| VESA mount included | Yes |
| AC adapter included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
