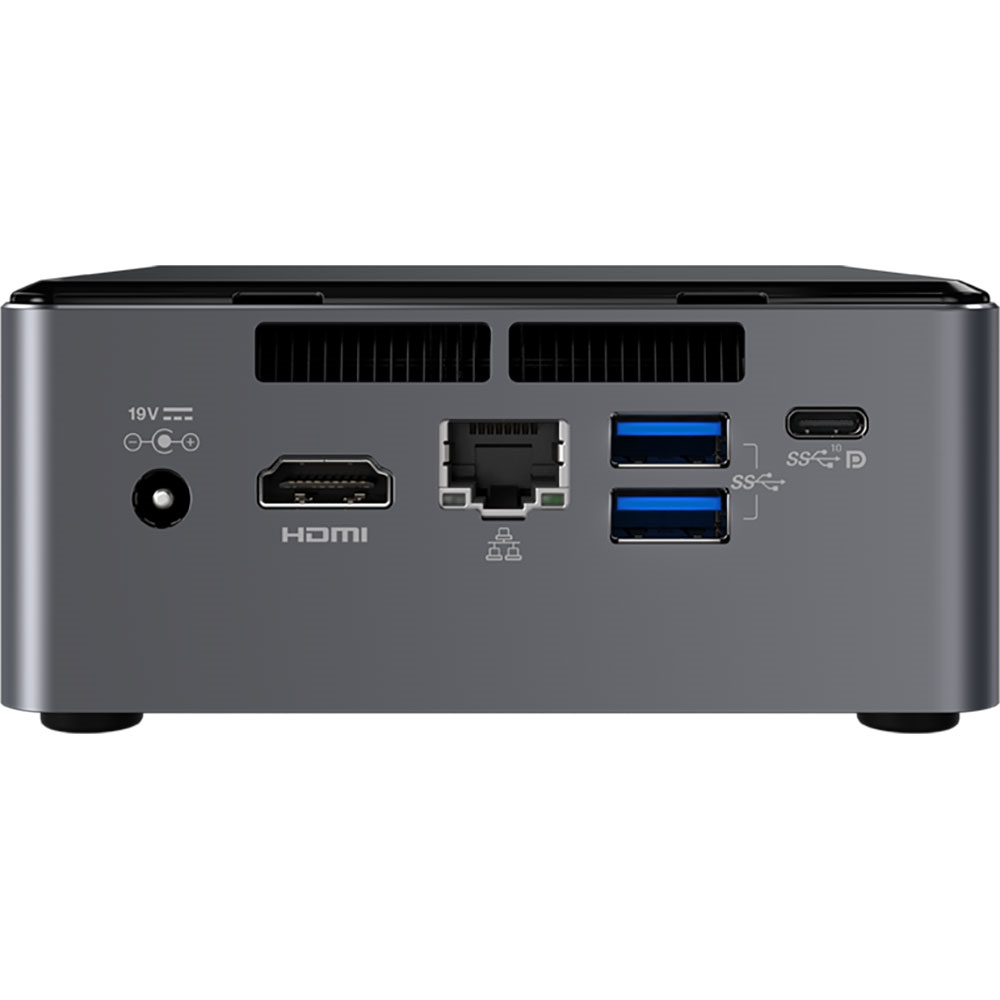

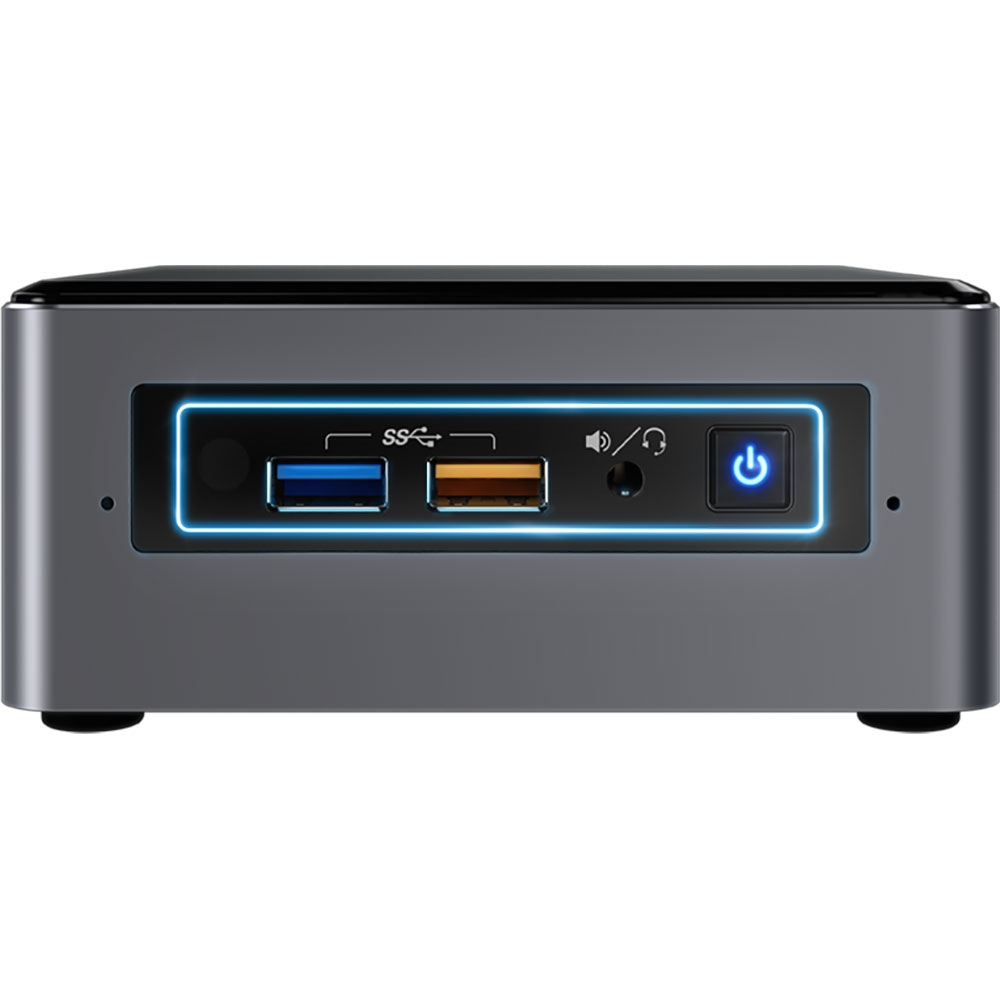

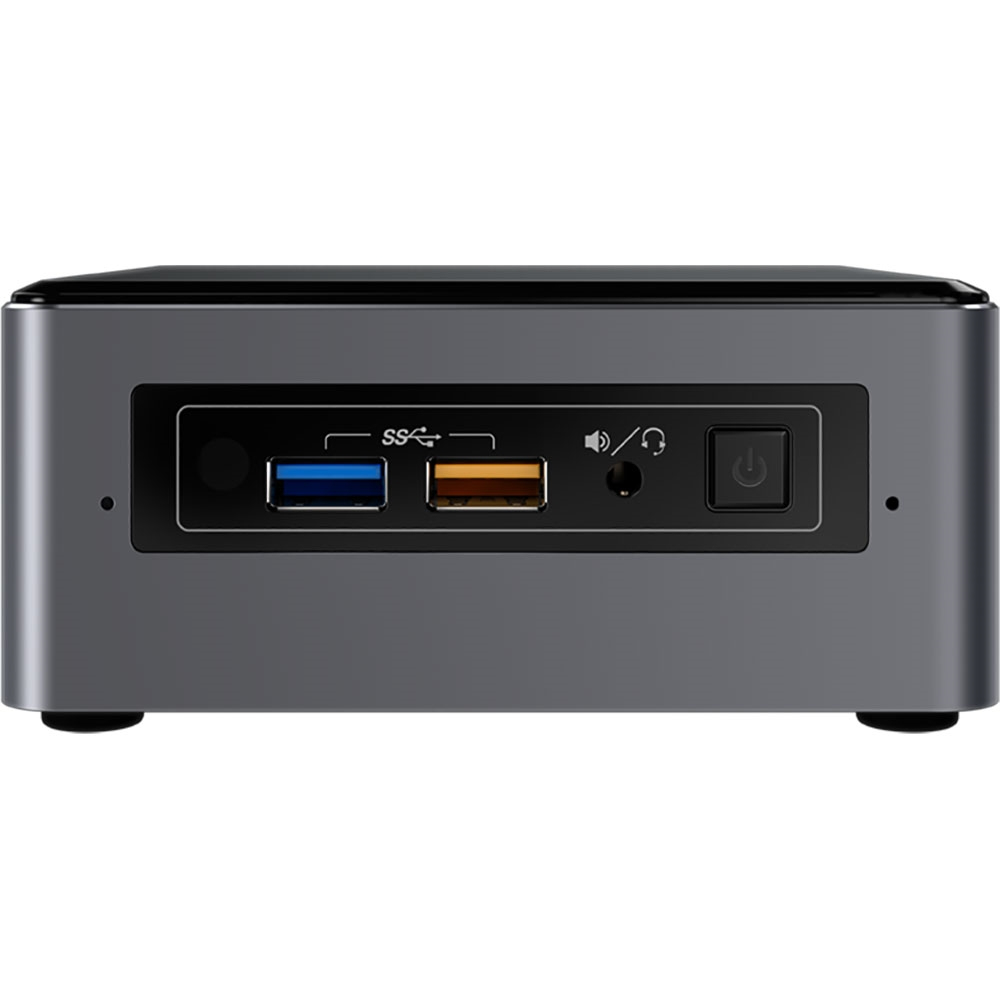

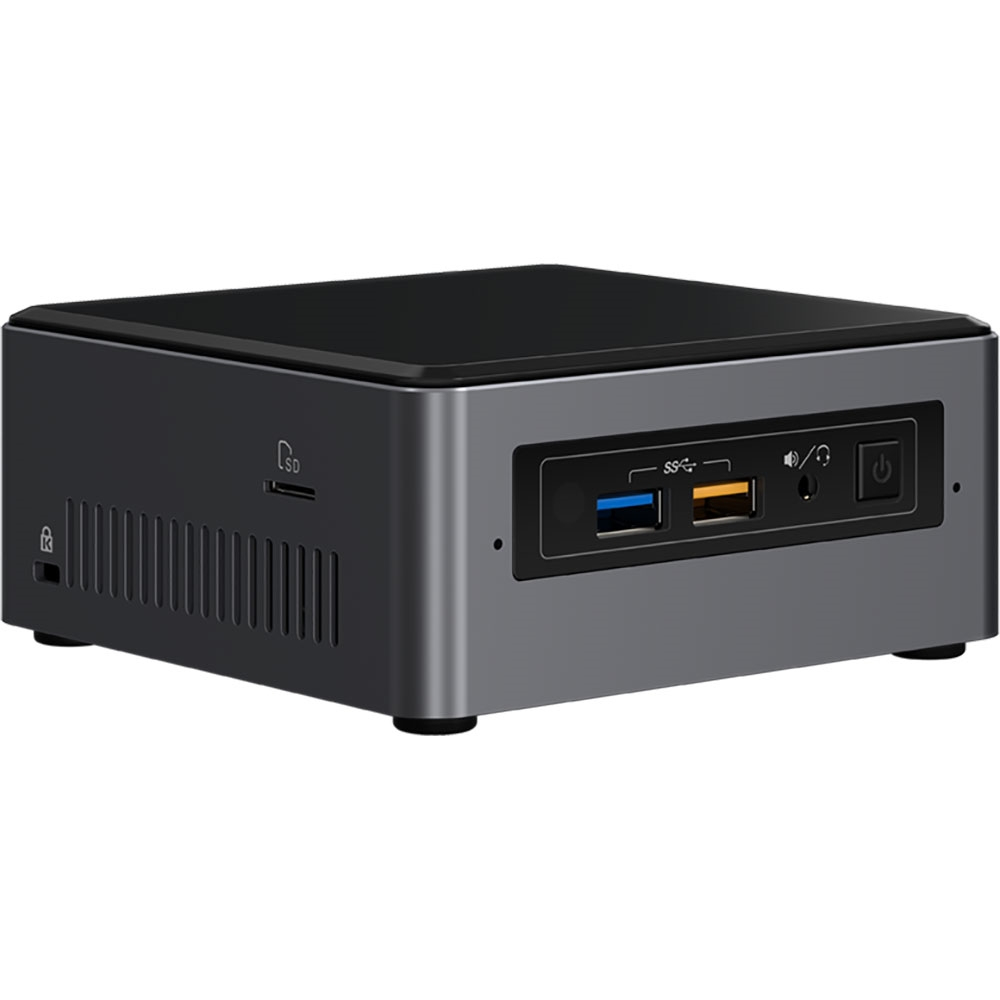

PC-Micro 7000 Silent Greenline

Model PC-Micro 7000 Silent GreenlinePart no. 1009830EAN 4039407069293

125 specifications

Overview

Brand: TERRA
Category: PCs/Workstations
Model: PC-Micro 7000 Silent Greenline
Part numbers: 1009830, 1009572, 1009644, 1009806, 1009835
EAN / UPC: 4039407069293, 4039407040803, 4039407047383, 4039407066148 +1 more
Also known as: TERRA PC-Micro 7000 Silent Greenline Intel® Core™ i7 i7-7567U 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Mini PC Black

125 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7567U
Processor cores	2
Processor threads	4
Processor boost frequency	4 GHz
Processor frequency	3.5 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
System bus rate	4 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Thermal Design Power (TDP)	28 W
Configurable TDP-down	23 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-RS-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Iris™ Plus Graphics 650
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5927
On-board graphics card OpenGL version	4.4

Specification	Value
Product type	Mini PC

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Windows 10 Pro

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Processor ARK ID	97541
Processor package size	42 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
