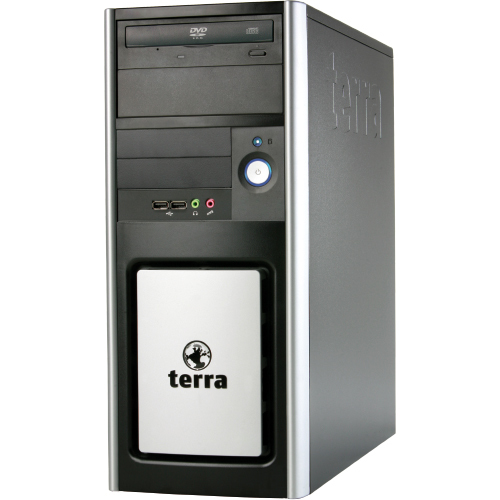

TERRA PC-BUSINESS 7100 SILENT+ GREENLINE

Model TERRA PC-BUSINESS 7100 SILENT+ GREENLINEPart no. 1009380EAN 4039407023912

182 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage180 GB
GraphicsNVIDIA® GeForce® GT 630
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 180 GB
Graphics: NVIDIA® GeForce® GT 630
Type: PC
OS: Windows 7 Professional

Brand: TERRA
Category: PCs/Workstations
Model: TERRA PC-BUSINESS 7100 SILENT+ GREENLINE
Part numbers: 1009380, FR1009380, NL1009380, CH1009380
EAN / UPC: 4039407023912
Also known as: TERRA PC-BUSINESS 7100 SILENT+ GREENLINE Intel® Core™ i7 i7-4770 8 GB DDR3-SDRAM 180 GB SSD NVIDIA® GeForce® GT 630 Windows 7 Professional Midi Tower Black

Specifications

182 specifications in 23 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4770
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	84 W
Tcase	72.72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.5 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	180 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of SSDs installed	1
SSD capacity	180 GB
SSD interface	SATA
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 630
Discrete graphics card memory	1 GB
Number of discrete graphics cards	1
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0x412
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Z87
Motherboard form factor	micro ATX
Compatible processor series	Intel® Celeron®, Intel® Pentium®

Optical drive

Specification	Value
Optical drives quantity	1
LightScribe	No

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	1
HDMI version	1.4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	6
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
eSATA ports quantity	0
S/PDIF out port	No
SmartCard slot	No
TV-out	No

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x16 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI slots	2

Power

Specification	Value
Power supply	400 W
Power supply input voltage	100/240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	1.5 W
Power consumption (typical)	38 W

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Number of 5.25" bays	2
Liquid cooling system	No
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Pre-installed software	Microsoft Windows Essentials 2012
Trial software	Norton Internet Security
Bundled software	Adobe Reader

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75122
Processor code	SR149
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
