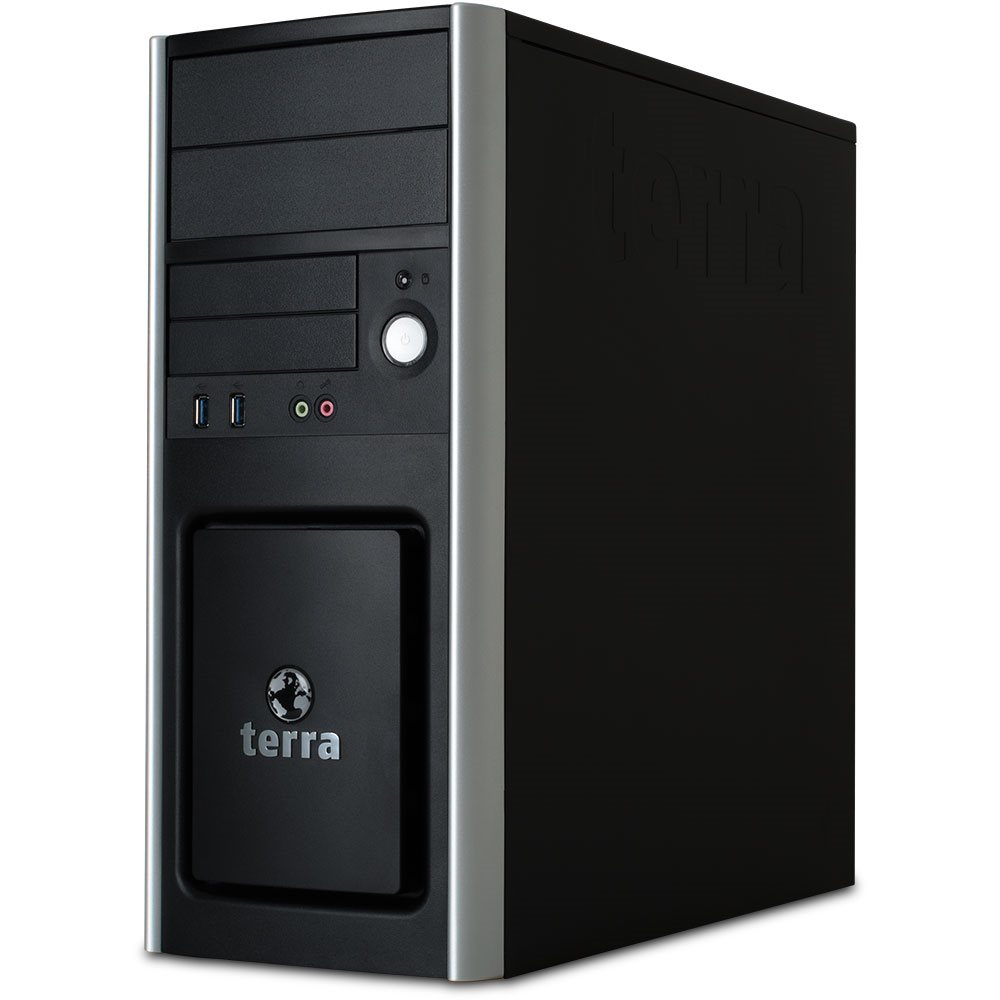

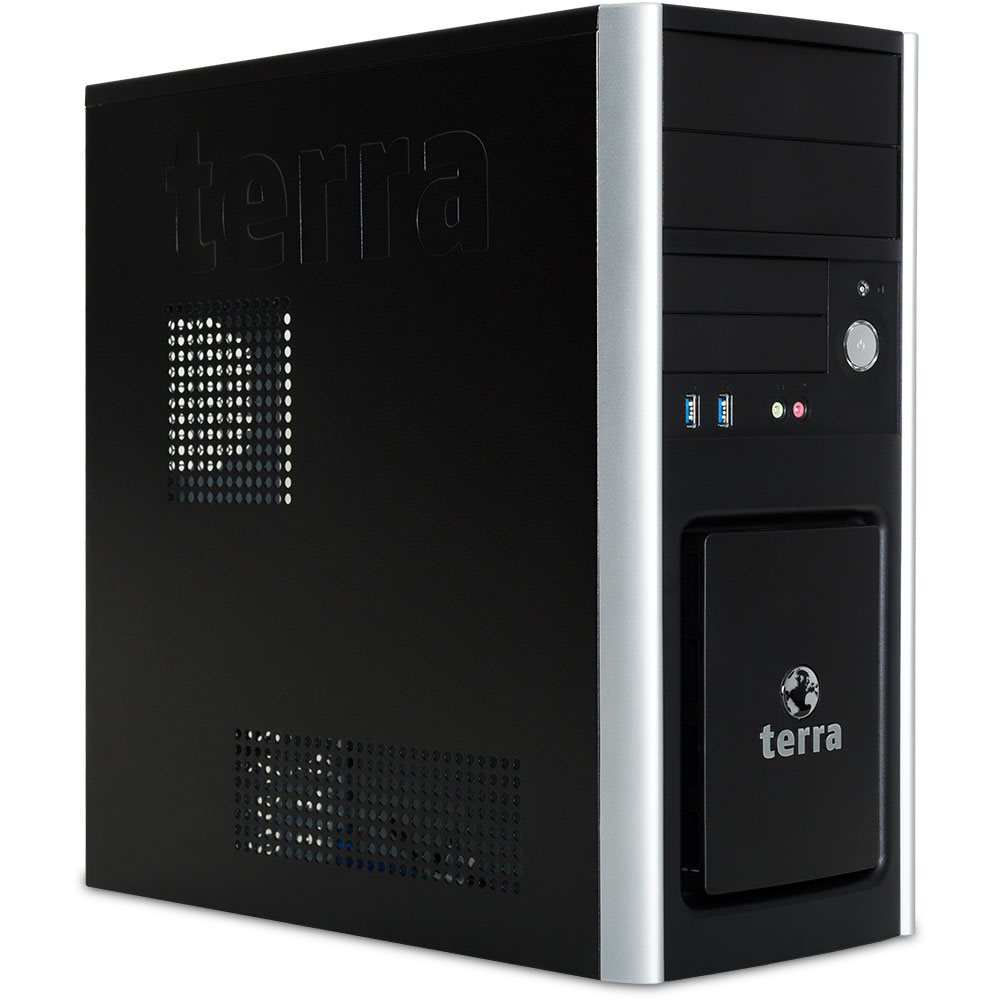

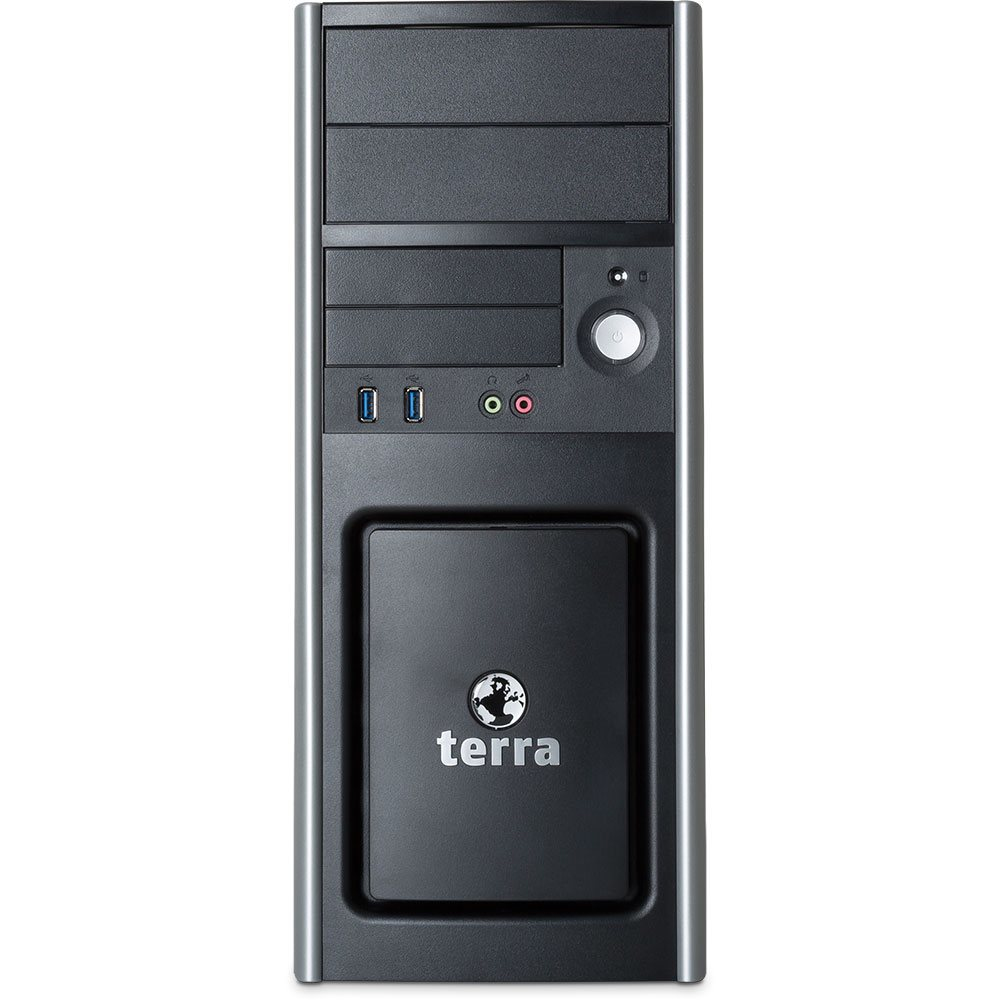

TERRA PC-Business 7000 Silent+ Greenline vPro

Model PC-Business 7000 Silent+ Greenline vProPart no. 1009596EAN 4039407042494

131 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage250 GB
GraphicsNot available
TypePC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 250 GB
Graphics: Not available
Type: PC
OS: Windows 10 Pro

Brand: TERRA
Category: PCs/Workstations
Model: PC-Business 7000 Silent+ Greenline vPro
Part number: 1009596
EAN / UPC: 4039407042494
Also known as: TERRA PC-Business 7000 Silent+ Greenline vPro Intel® Core™ i7 i7-7700 8 GB DDR4-SDRAM 250 GB SSD Windows 10 Pro Midi Tower Black

Specifications

131 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700
Processor cores	4
Processor threads	8
Processor boost frequency	4.2 GHz
Processor frequency	3.6 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of SSDs installed	1
SSD capacity	250 GB
SSD interface	SATA III
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 630
On-board graphics card memory	1 GB
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	PC
Market positioning	Business

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	4

Power

Specification	Value
Power supply	350 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
80 PLUS certification	80 PLUS Bronze

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97128
Processor code	SR338
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 75%

Weight & dimensions

Specification	Value
Width	181 mm
Depth	436 mm
Height	430 mm
Weight	8 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CE, PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
