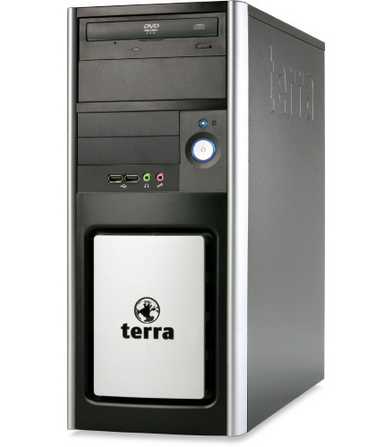

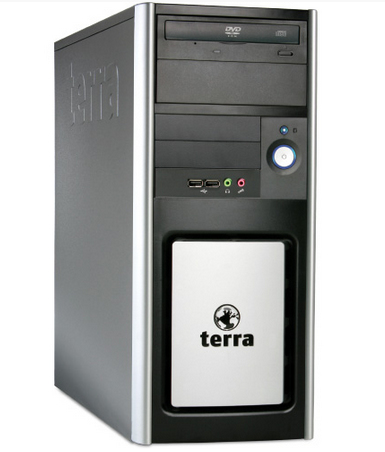

TERRA PC-BUSINESS 6200
Model TERRA PC-BUSINESS 6200Part no. 1009404EAN 4039407025640
162 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage240 GB
- GraphicsAMD Radeon R7 240
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 240 GB
- Graphics
- AMD Radeon R7 240
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- TERRA PC-BUSINESS 6200
- Part numbers
- 1009404, CH1009404
- EAN / UPC
- 4039407025640
- Also known as
- TERRA PC-BUSINESS 6200 Intel® Core™ i5 i5-4690 8 GB DDR3-SDRAM 240 GB SSD AMD Radeon R7 240 Windows 7 Professional Midi Tower Black, Silver
Specifications
162 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4690 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Core i5-4600 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 72.72 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.5 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 240 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of HDDs installed | 0 |
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | AMD Radeon R7 240 |
| Discrete graphics card memory | 1 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 1.024 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x412 |
| On-board graphics card OpenGL version | 4.3 |
| Graphics card DVI-D ports quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
| Graphics card VGA (D-Sub) ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Z97 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Power supply input voltage | 100/240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Pre-installed software | Microsoft Windows Essentials 2012 |
| Trial software | Norton Internet Security, Microsoft Office |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 80810 |
| Processor code | SR1QH |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 181 mm |
| Depth | 430 mm |
| Height | 436 mm |
| Weight | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
