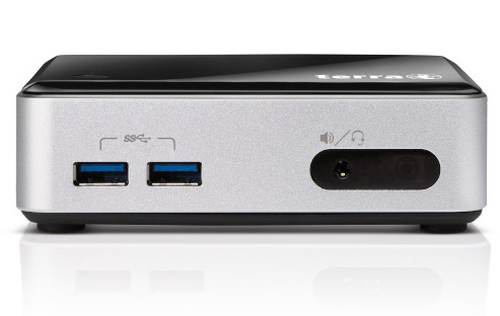

TERRA MicroPC 3000

Model TERRA MicroPC 3000Part no. 1001238EAN 4039407027071

127 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage120 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 120 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: TERRA
Category: PCs/Workstations
Model: TERRA MicroPC 3000
Part number: 1001238
EAN / UPC: 4039407027071
Also known as: TERRA MicroPC 3000 Intel® Celeron® N2820 4 GB DDR3-SDRAM 120 GB SSD Windows 8.1 Mini PC Silver

Specifications

127 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2820
Processor cores	2
Processor threads	2
Processor boost frequency	2.39 GHz
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1066 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	120 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
SSD capacity	120 GB
SSD interface	SATA II

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	756 MHz
On-board graphics card dynamic frequency (max)	756 MHz

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Total number of SATA connectors	2

Power

Specification	Value
Power supply input voltage	100/240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	36 W

Design

Specification	Value
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Silver

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Pre-installed software	Microsoft Windows Essentials 2012
Trial software	Norton Internet Security, Office 365

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Smart Connect Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	79052
Processor code	SR1SG
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	116.6 mm
Depth	112 mm
Height	51.5 mm
Weight	1.3 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
