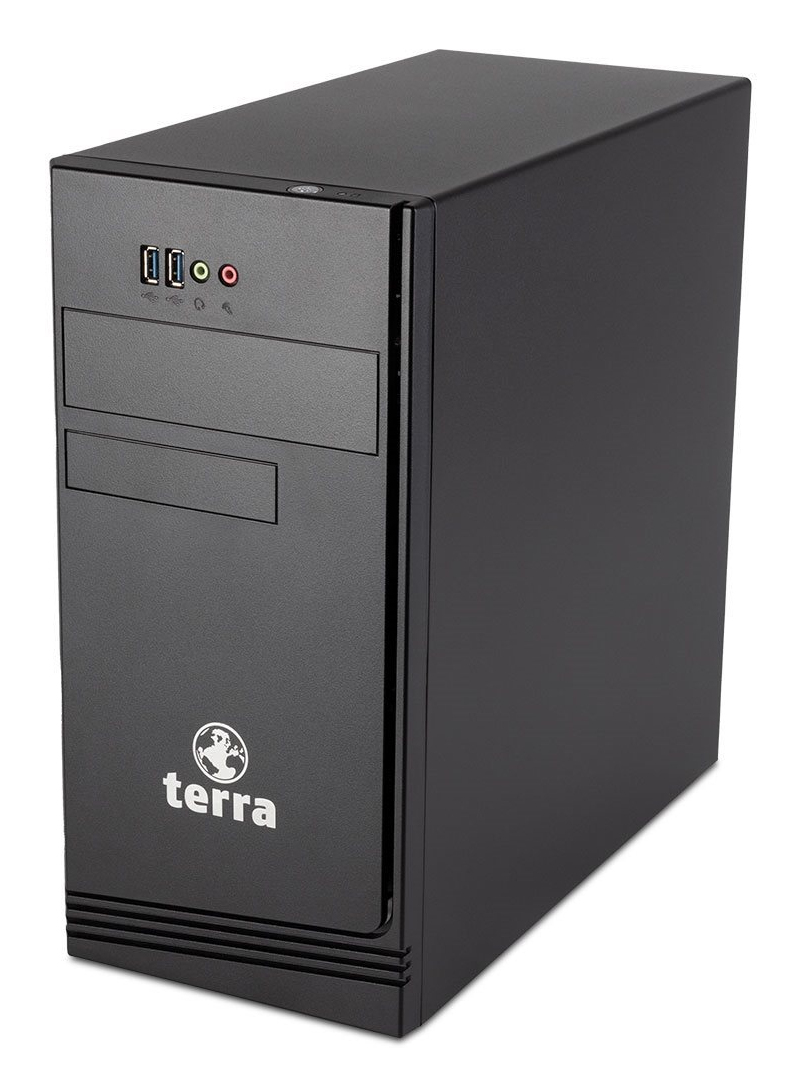

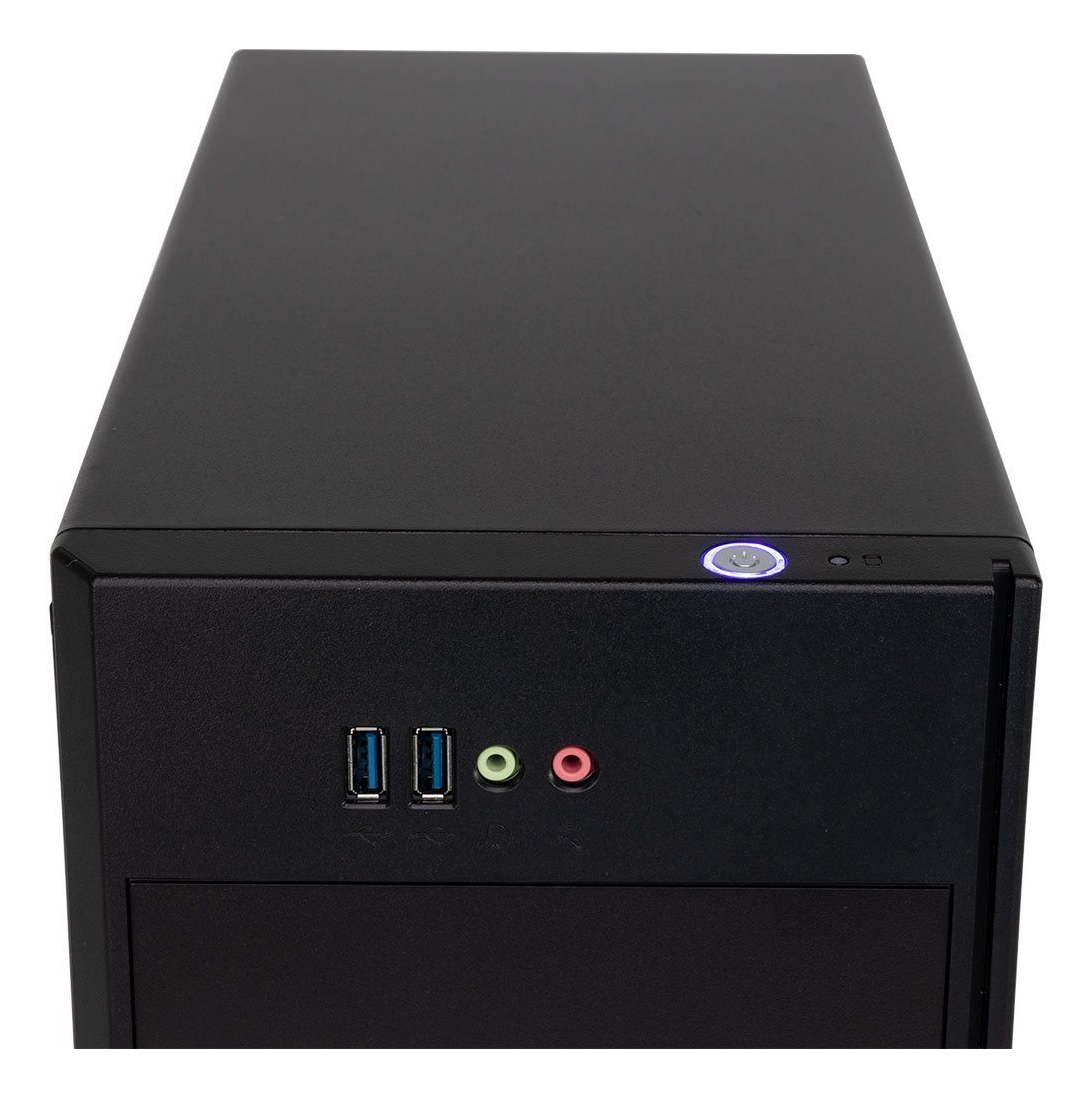

EU1000097 PC/workstation Intel® Core™ i5 i5-12400
8 GB DDR4-SDRAM 500 GB SSD Windows 11 Pro Mini Tower
Model EU1000097EAN 4039407086160
64 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- TypePC
- OSWindows 11 Pro
- Weight7 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Type
- PC
- OS
- Windows 11 Pro
- Weight
- 7 kg
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- EU1000097
- Part number
- EU1000097
- EAN / UPC
- 4039407086160
- Also known as
- TERRA EU1000097 PC/workstation Intel® Core™ i5 i5-12400 8 GB DDR4-SDRAM 500 GB SSD Windows 11 Pro Mini Tower
Specifications
64 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12400 |
| Processor cores | 6 |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | SSD |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| RAID support | No |
| Storage options | 1x M.2 (Key M, PCIe 3.0 x4 mode/ SATA 6Gb/s), 4x SATA 6Gb/s ports |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics 730 |
| Resolution description | HDMI 2.1 max. 4K 60Hz ¦ DP 1.4 max. 4K 60Hz ¦ VGA max. 2048x1536 50Hz, 2048x1280 60 Hz, 1920x1200 60 Hz |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel H610 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 8.0 channels |
| Sound pressure level | 22.7 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel I219V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| Power supply input voltage | 230 V |
| Power supply input frequency | 50 Hz |
| Power consumption (long idle) | 23 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.6 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 10, Windows 11 |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 384 mm |
| Height | 375 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Cables included | AC |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | MSI PRO H610M-G |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
