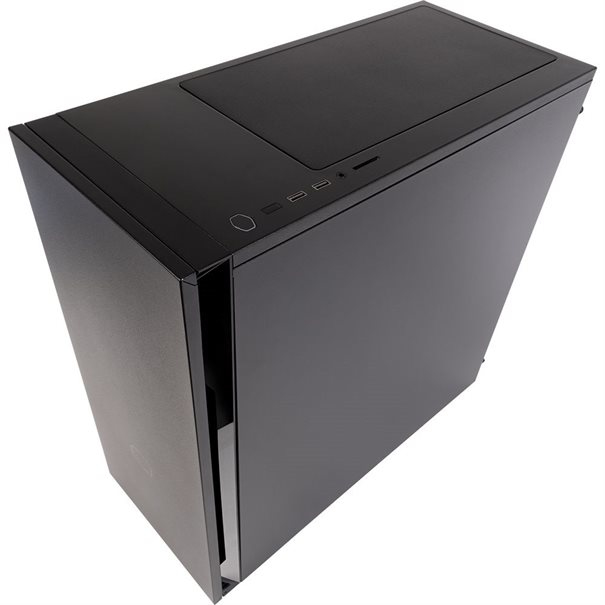

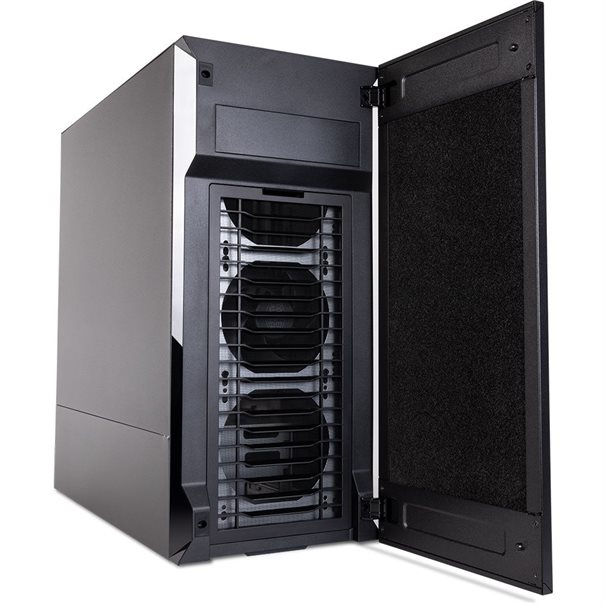

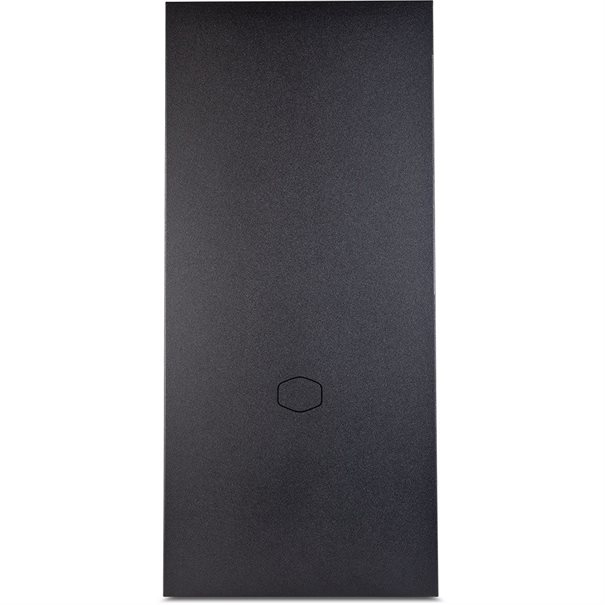

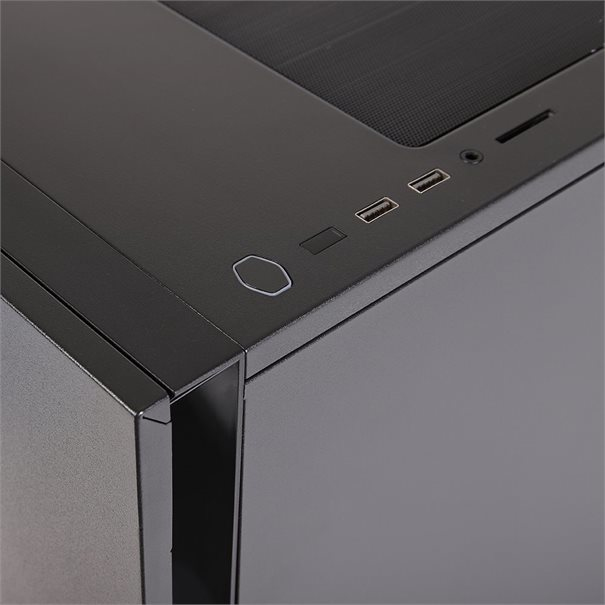

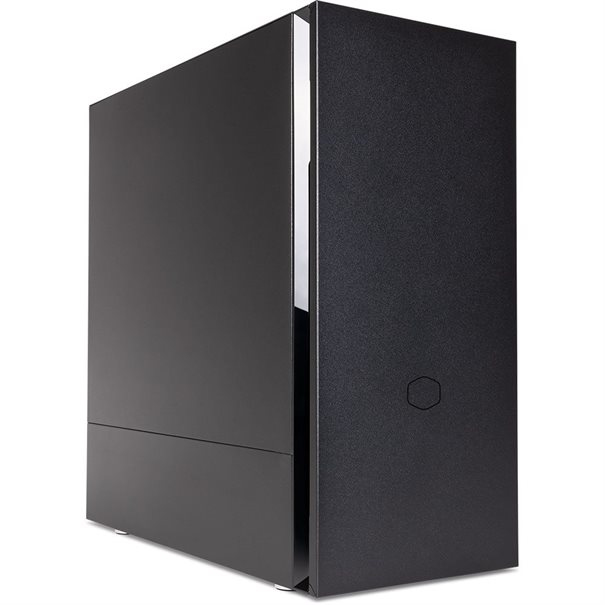

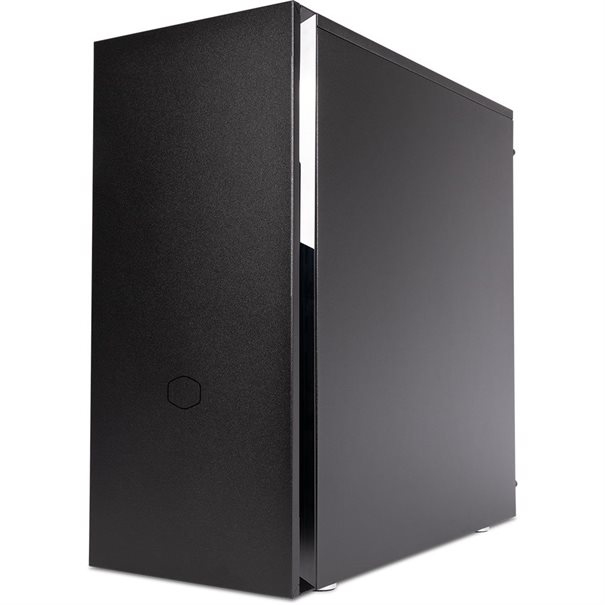

7560 vPro
Model 7560 vProPart no. 1000975EAN 4039407056101
75 specifications
- ProcessorIntel Xeon W
- Memory16 GB
- Storage1.25 TB
- OSWindows 10 Pro for Workstations
- Weight21.5 kg
- ColourBlack
Overview
- Processor
- Intel Xeon W
- Memory
- 16 GB
- Storage
- 1.25 TB
- OS
- Windows 10 Pro for Workstations
- Weight
- 21.5 kg
- Colour
- Black
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 7560 vPro
- Part number
- 1000975
- EAN / UPC
- 4039407056101
- Also known as
- TERRA 7560 vPro Intel Xeon W W-2223 16 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Pro for Workstations Midi Tower Black
Specifications
75 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | W-2223 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8.25 MB |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 120 W |
| Tcase | 64 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Maximum internal memory supported by processor | 1 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.25 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro for Workstations |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 198018 |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 209 mm |
| Depth | 478 mm |
| Height | 470 mm |
| Weight | 21.5 kg |
