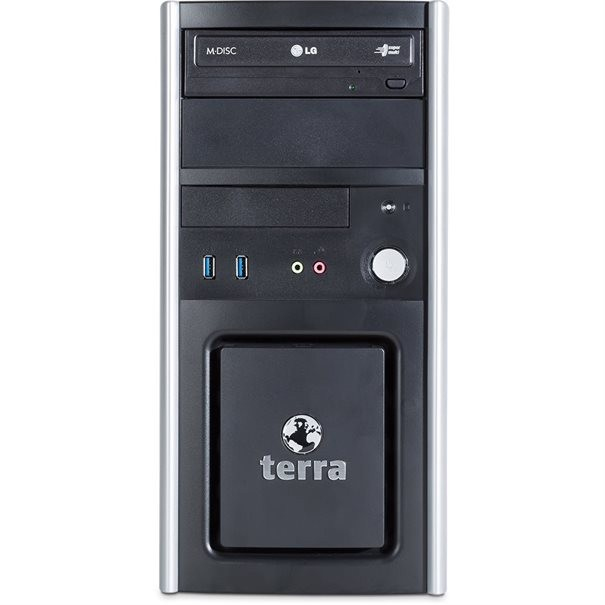

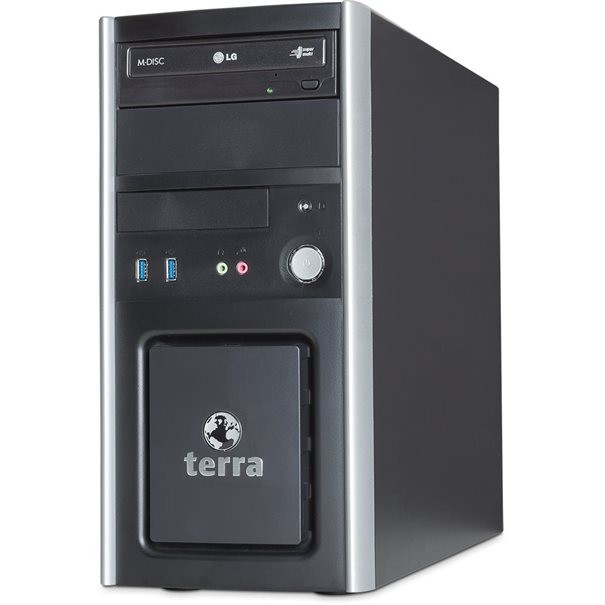

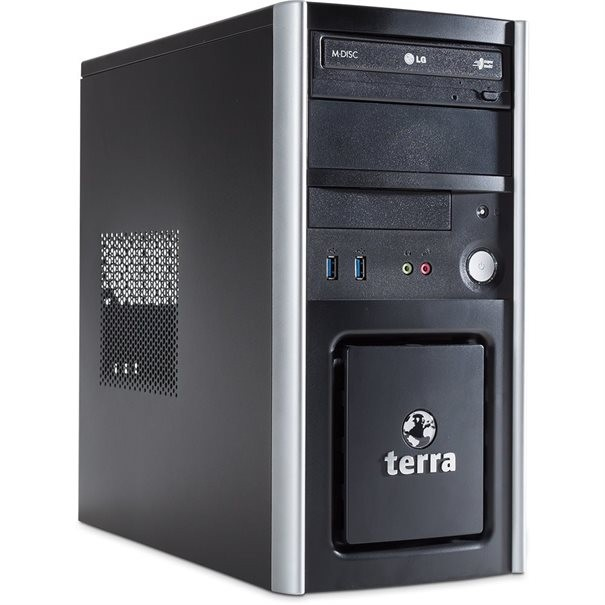

5060MSO Intel® Core™ i5 i5-9400
8 GB DDR4-SDRAM 250 GB SSD Windows 10 Pro Mini Tower PC Black, Silver
Model 5060MSOPart no. 1009730EAN 4039407058570
131 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage250 GB
- TypePC
- OSWindows 10 Pro
- Weight7 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 250 GB
- Type
- PC
- OS
- Windows 10 Pro
- Weight
- 7 kg
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 5060MSO
- Part number
- 1009730
- EAN / UPC
- 4039407058570
- Also known as
- TERRA 5060MSO Intel® Core™ i5 i5-9400 8 GB DDR4-SDRAM 250 GB SSD Windows 10 Pro Mini Tower PC Black, Silver
Specifications
131 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor model | i5-9400 |
| Processor cores | 6 |
| Processor threads | 6 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 5 |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| SSD interface | SATA III |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0X3E98/x92 |
| On-board graphics card OpenGL version | 4.5 |
| Graphics card DVI-I ports quantity | 1 |
| Graphics card DisplayPorts quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel H310 Express |
| Trusted Platform Module (TPM) | Yes |
| Audio output channels | 6.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| Power supply input voltage | 230 V |
| Power supply input frequency | 50 Hz |
| Power consumption (standby) | 0.8 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Pre-installed software | Microsoft Office Home & Business 2019 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 134898 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 390 mm |
| Height | 375 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | SMBios (DMI), EnergyStar, EN60950, EN55022, EN55024, EN61000-3-2 / 3, 89/336 / ECC |
