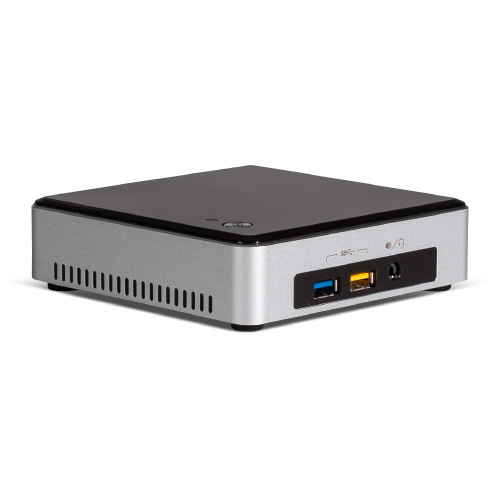

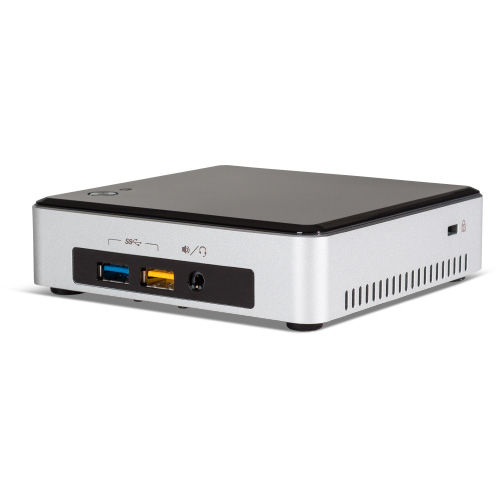

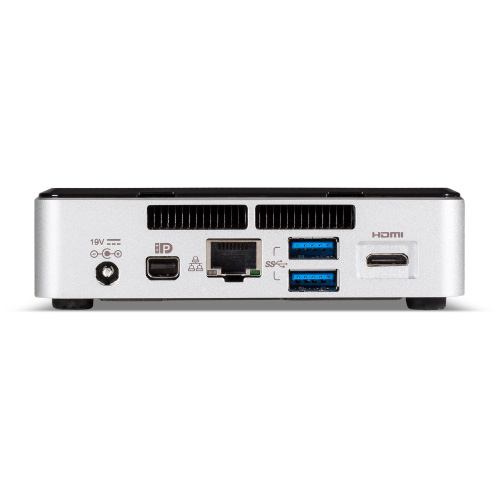

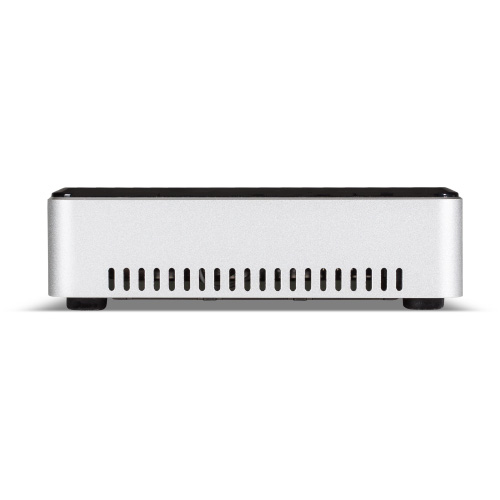

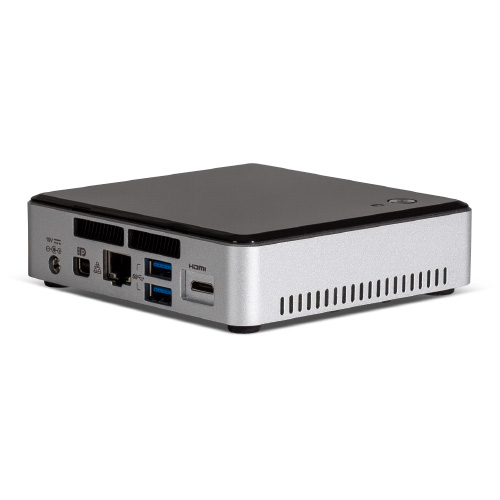

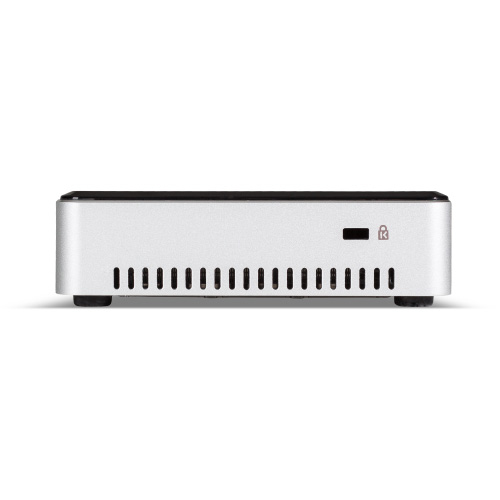

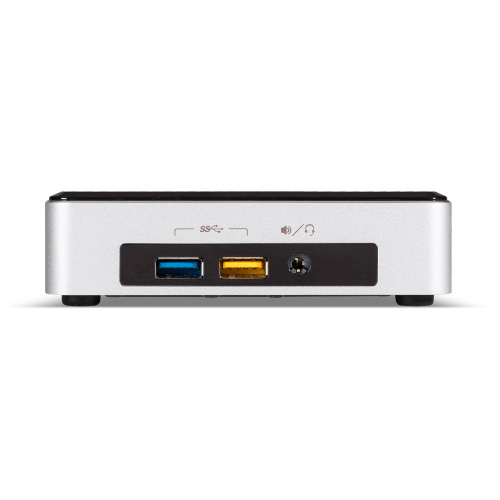

TERRA 5000 SILENT

Model TERRA 5000 SILENTPart no. 1009466EAN 4039407029761

158 specifications

ProcessorIntel® Core™ i3
Memory4 GB
Storage120 GB
SpeedWi-Fi 5 (802.11ac)
TypeMini PC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 120 GB
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC
OS: Windows 7 Professional

Brand: TERRA
Category: PCs/Workstations
Model: TERRA 5000 SILENT
Part number: 1009466
EAN / UPC: 4039407029761
Also known as: TERRA 5000 SILENT Intel® Core™ i3 i3-5010U 4 GB DDR3-SDRAM 120 GB SSD Windows 7 Professional Mini PC Black, Silver

Specifications

158 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	5th gen Intel® Core™ i3
Processor model	i3-5010U
Processor cores	2
Processor threads	4
Processor frequency	2.1 GHz
Processor cache	3 MB
Processor cache type	L3
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Core i3-5000 Mobile series
Processor codename	Broadwell
Thermal Design Power (TDP)	15 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	2x4, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1168
Stepping	F0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	120 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	120 GB
SSD interface	SATA III

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5500
Maximum on-board graphics card memory	16 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card ID	0x1616
On-board graphics card OpenGL version	4.3
Graphics card Open GL support	Yes

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	0
Combo headphone/mic port	Yes
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
Mini HDMI ports quantity	1
Mini DisplayPorts quantity	1
DC-in jack	Yes

Power

Specification	Value
Power supply	65 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	1.1 W
Power consumption (typical)	8.55 W

Design

Specification	Value
Chassis type	Mini PC
Volume	0.6 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Trial software	Adobe Reader, McAfee Intel Internet Security

Display

Specification	Value
Display included	No
Number of displays supported	3

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	84697
Processor code	SR23Z
Processor package size	40 x 24x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C

Weight & dimensions

Specification	Value
Width	115 mm
Depth	111 mm
Height	34.5 mm
Weight	1.8 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
Cables included	AC
VESA mount included	Yes
AC adapter included	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CE, ISO9001, PC2001, SMBios (DMI) 2.3, PCI 2.2,WFM 2.0, EN60950, EN55022,EN55024, EN61000-3-2/3, 89/336/ECC
