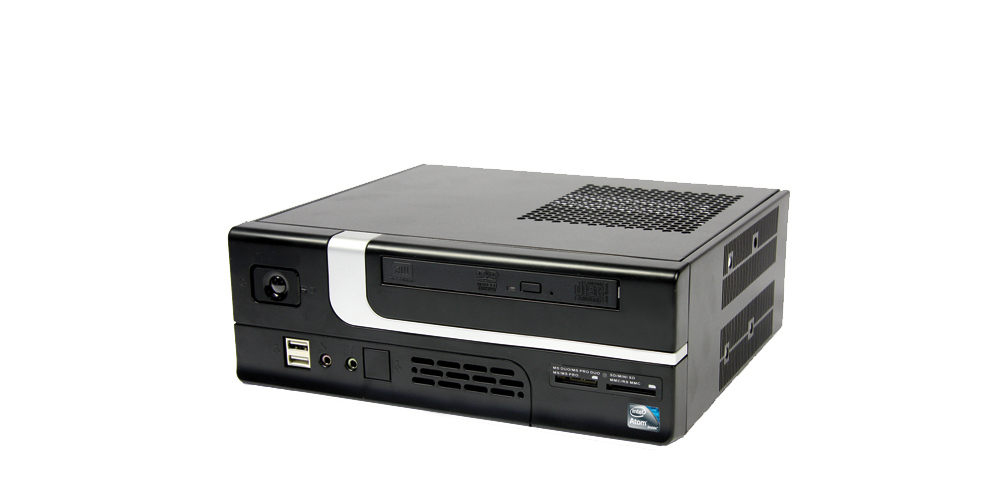

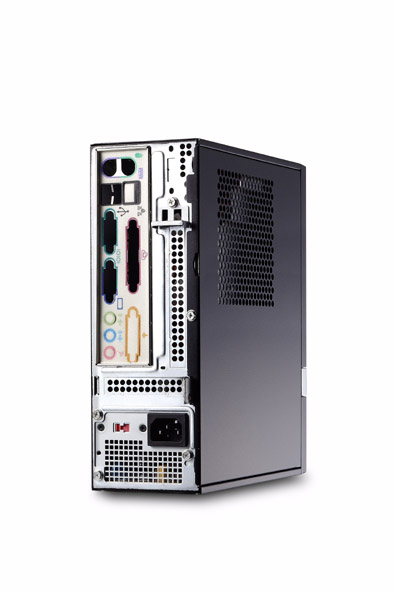

TERRA 5000 Mini-ITX

Model 5000 Mini-ITXPart no. 1009229EAN 4039407016495

122 specifications

ProcessorIntel® Core™ i3
Memory2 GB
Storage320 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 2 GB
Storage: 320 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: TERRA
Category: PCs/Workstations
Model: 5000 Mini-ITX
Part numbers: 1009229, FR1009229, CH1009229, NL1009229
EAN / UPC: 4039407016495
Also known as: TERRA 5000 Mini-ITX Intel® Core™ i3 i3-2100T 2 GB DDR3-SDRAM 320 GB Windows 7 Professional Desktop PC Black

Specifications

122 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2100T
Processor cores	2
Processor threads	4
Processor frequency	2.5 GHz
Processor cache	3 MB
Processor cache type	L2
Bus type	DMI
Processor lithography	32 nm
Processor series	Intel Core i3-2100 Desktop Series
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	35 W
Tcase	65 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	25
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Maximum graphics card memory	1.74 GB
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	1
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Power

Specification	Value
Power supply type	FSP220-60PLA
Power supply	220 W
Power supply input voltage	100 - 240 V

Design

Specification	Value
Chassis type	Desktop
Product colour	Black
External drive bays	1 x 5.25"
Internal drive bays	1 x 2.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53423
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 75%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	254 mm
Depth	219 mm
Height	88 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Features

Specification	Value
Motherboard manufacturer	Asus

Other features

Specification	Value
Motherboard	P8H61-I
