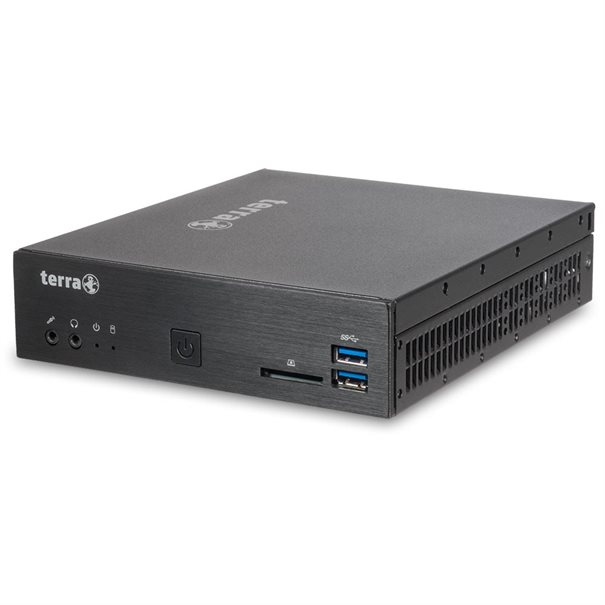

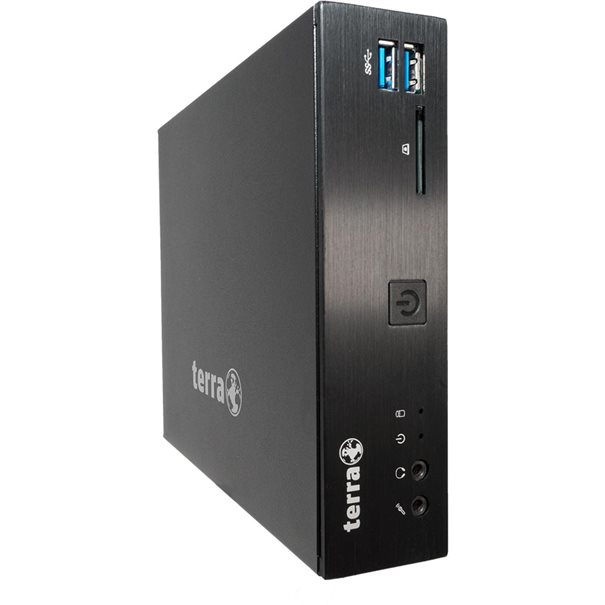

3030 Intel® Celeron® J3355
4 GB DDR3-SDRAM 250 GB SSD Windows 10 Pro Nettop Mini PC Black
Model 3030Part no. 1009650EAN 4039407048304
131 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage250 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 250 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 3030
- Part number
- 1009650
- EAN / UPC
- 4039407048304
- Also known as
- TERRA 3030 Intel® Celeron® J3355 4 GB DDR3-SDRAM 250 GB SSD Windows 10 Pro Nettop Mini PC Black
Specifications
131 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J3355 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.5 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Apollo Lake |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x2+2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1296 |
| Stepping | B1 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives supported | 2 |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 500 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 700 MHz |
| Number of execution units | 12 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

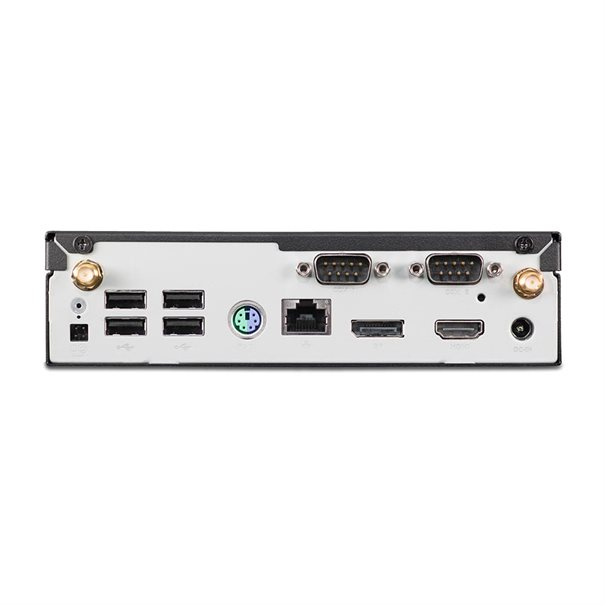

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |

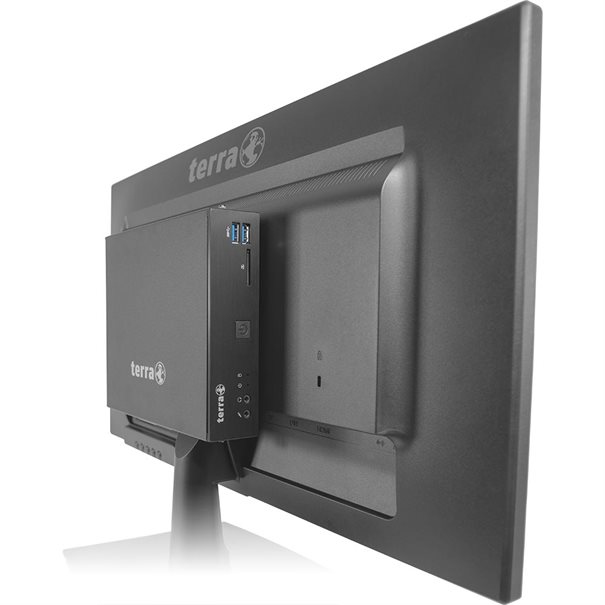

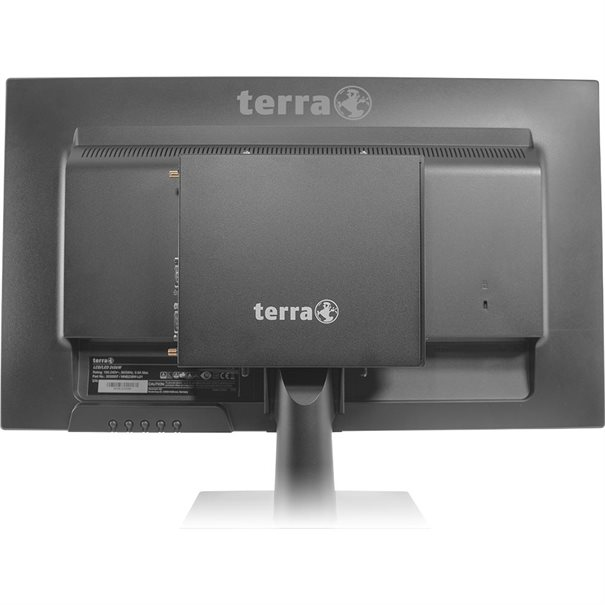

| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Fanless | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 95597 |
| Processor code | SR2Z8 |
| Processor package size | 24 x 31 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 900 g |
