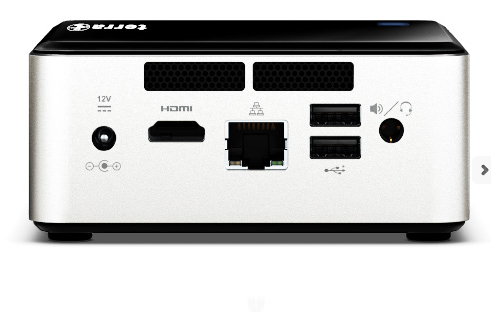

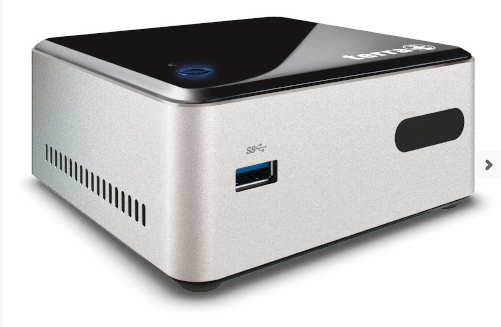

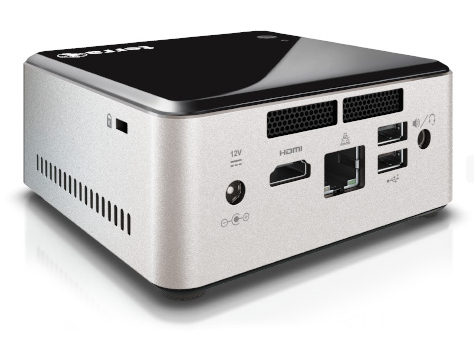

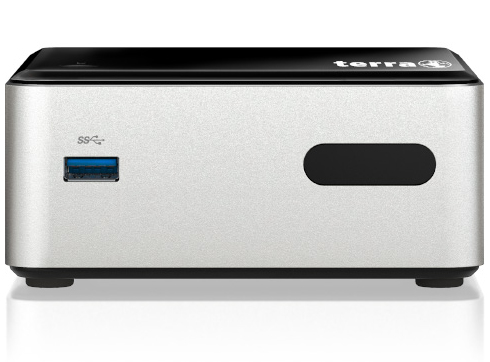

TERRA 3000

Model TERRA 3000Part no. 1001235EAN 4039407030279

130 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage80 GB
SpeedWi-Fi 4 (802.11n)
TypeMini PC
OSWindows 8.1

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 80 GB
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC
OS: Windows 8.1

Brand: TERRA
Category: PCs/Workstations
Model: TERRA 3000
Part numbers: 1001235, 1009477, 1009476
EAN / UPC: 4039407030279, 4039407030323
Also known as: TERRA 3000 Intel® Celeron® N2820 4 GB DDR3-SDRAM 80 GB SSD Windows 8.1 Micro Tower Mini PC Aluminium, Black

Specifications

130 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N2820
Processor cores	2
Processor threads	2
Processor boost frequency	2.39 GHz
Processor frequency	2.13 GHz
Processor cache	1 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor N2000 Series for Mobile
Processor codename	Bay Trail
Thermal Design Power (TDP)	7.5 W
Scenario Design Power (SDP)	4.5 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1066 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	80 GB
SSD interface	SATA II

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	313 MHz
On-board graphics card burst frequency	756 MHz
On-board graphics card dynamic frequency (max)	756 MHz

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Total number of SATA connectors	2

Power

Specification	Value
Power supply	36 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Design

Specification	Value
Chassis type	Micro Tower
Number of 2.5" bays	1
Product colour	Aluminium, Black

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Pre-installed software	Adobe Reader
Trial software	Norton Internet Security (90 Tage Trial-Version), Office 365

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Smart Connect Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	79052
Processor code	SR1SG
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C

Weight & dimensions

Specification	Value
Width	116.6 mm
Depth	112 mm
Height	155 mm
Weight	1.3 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
VESA mount included	Yes
AC adapter included	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0, Energy Star, EN60950, EN55022, EN55024, EN61000-3-2 / 3, 89/336 / ECC
