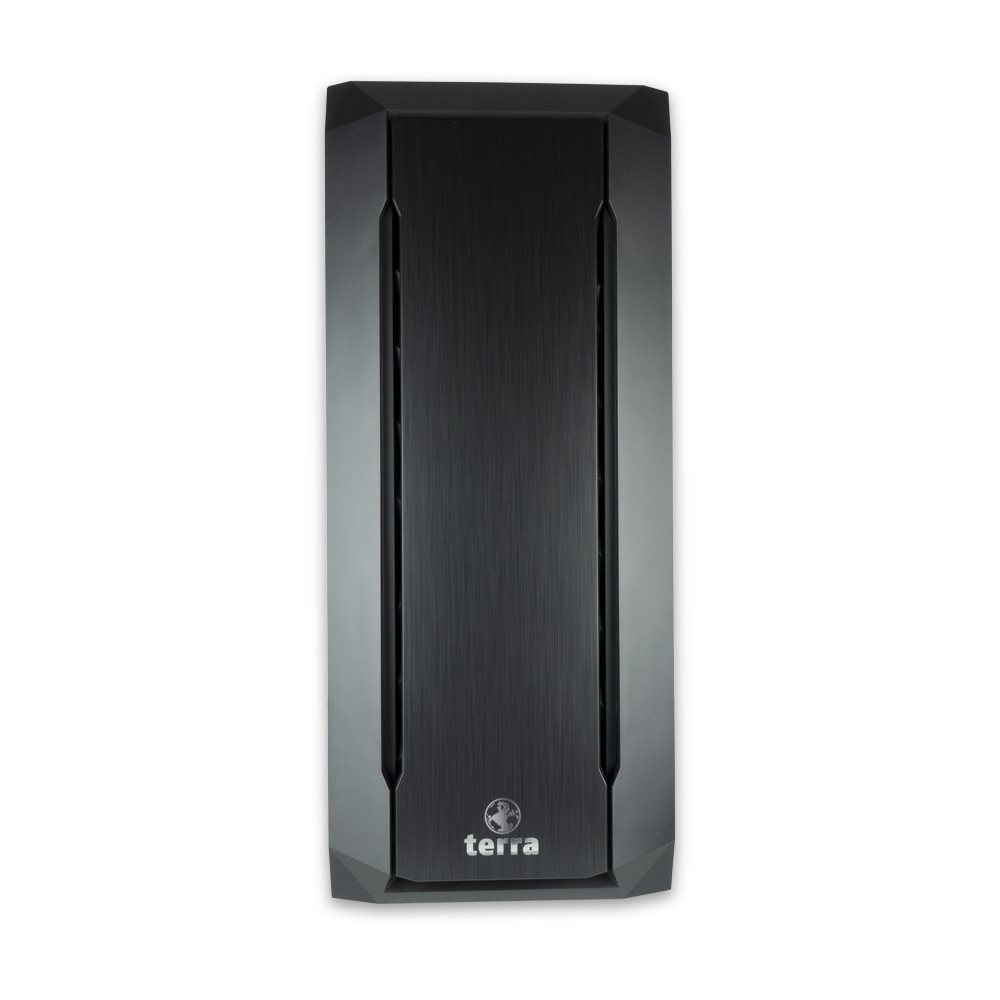

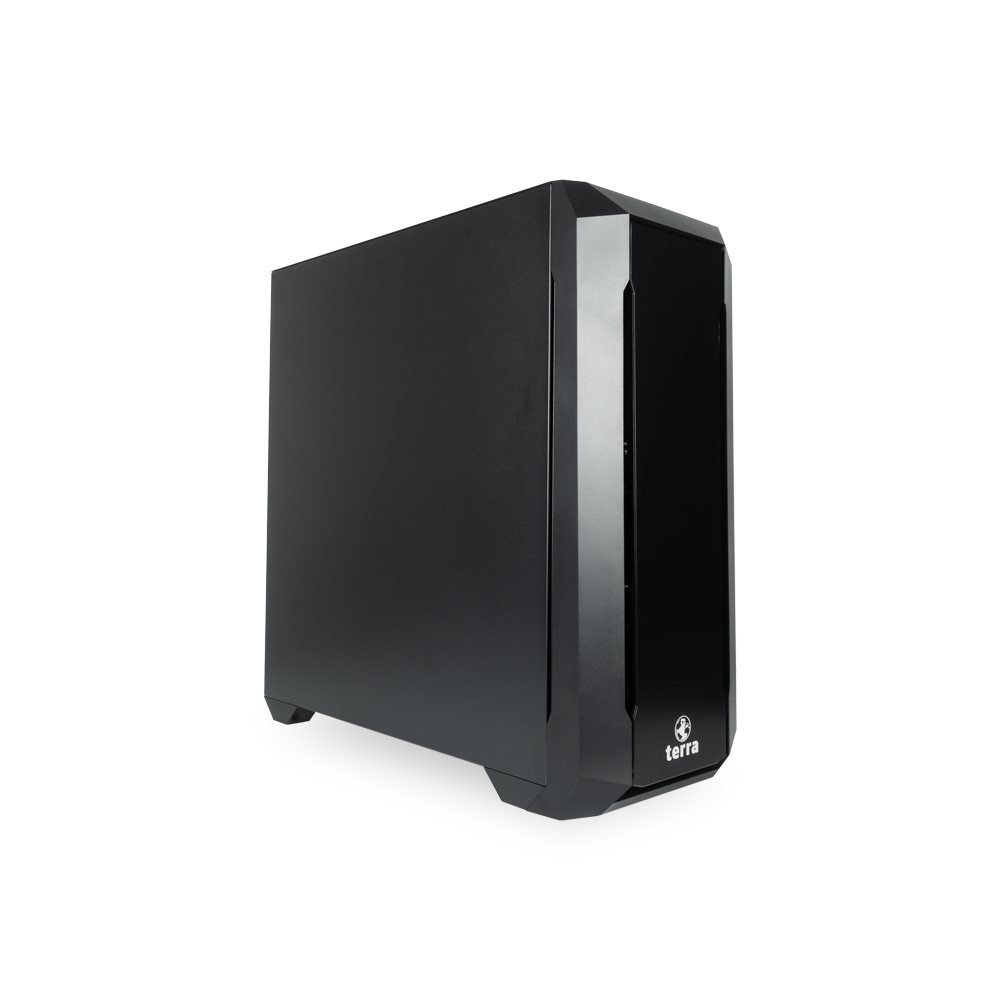

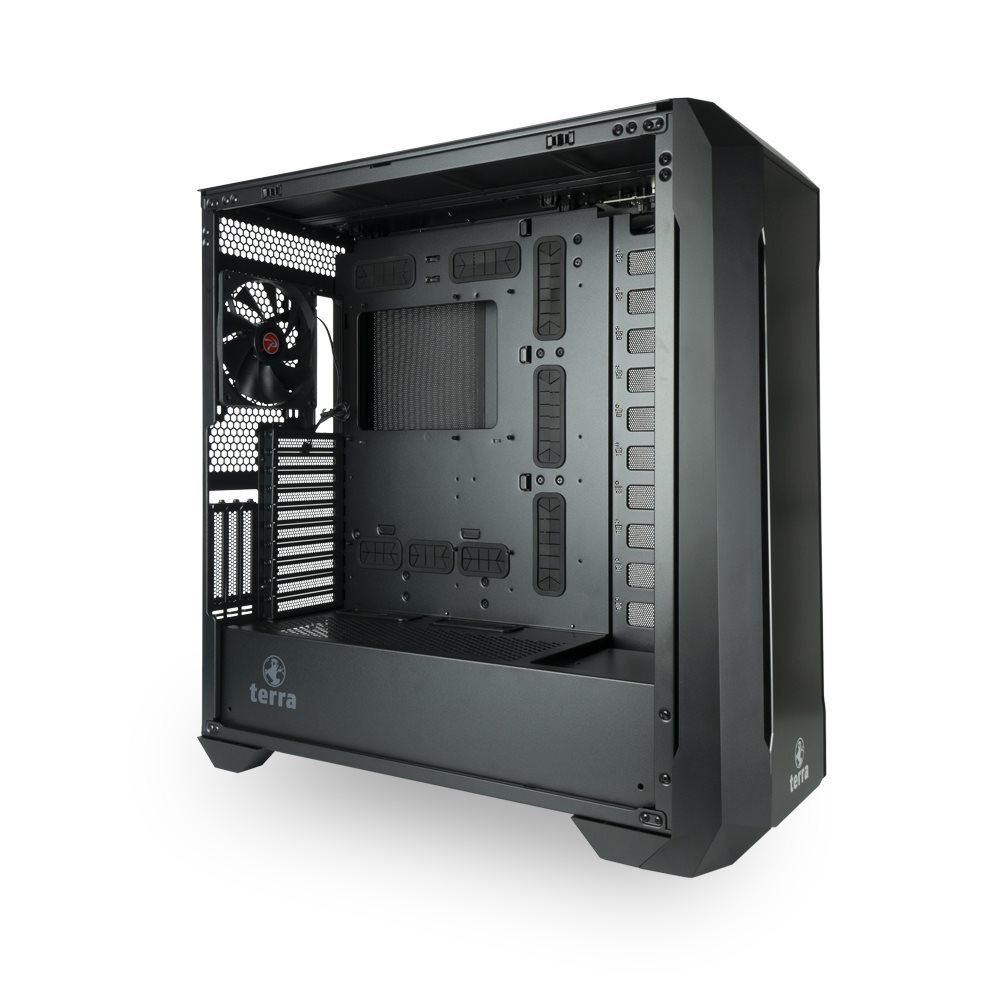

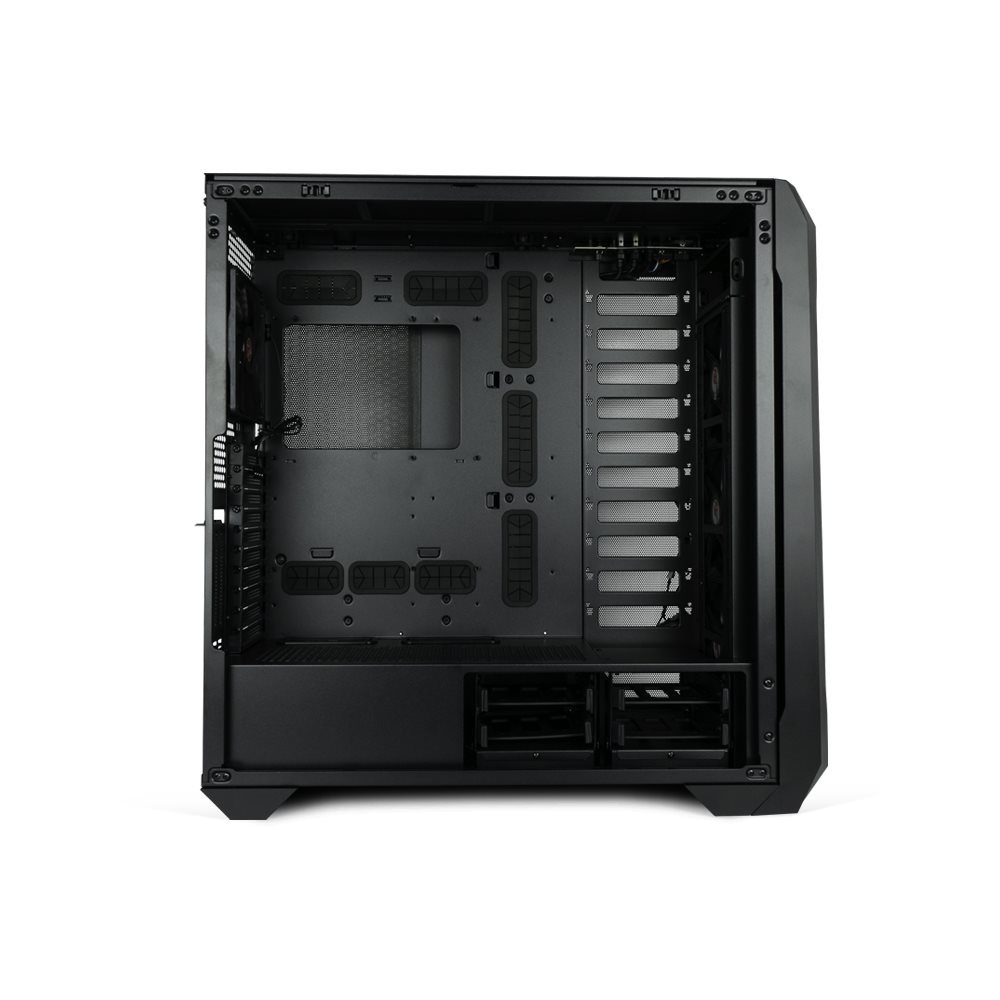

1009944 PC/workstation Intel Core Ultra 9 285
32 GB DDR5-SDRAM 1 TB SSD NVIDIA Quadro T400 Windows 11 Pro Tower Black
Model 1009944EAN 4039407077434
104 specifications
- ProcessorIntel Core Ultra 9
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA Quadro T400
- SpeedWi-Fi 7 (802.11be)
- TypePC
Overview
- Processor
- Intel Core Ultra 9
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA Quadro T400
- Speed
- Wi-Fi 7 (802.11be)
- Type
- PC
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 1009944
- Part number
- 1009944
- EAN / UPC
- 4039407077434
- Also known as
- TERRA 1009944 PC/workstation Intel Core Ultra 9 285 32 GB DDR5-SDRAM 1 TB SSD NVIDIA Quadro T400 Windows 11 Pro Tower Black
Specifications
104 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel® Core™ i9 (14th gen) |
| Processor model | 285 |
| Processor cores | 24 |
| Processor threads | 32 |
| Processor boost frequency | 5.6 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1851 (Socket V1) |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| RAID support | Yes |
| RAID levels | 5, 1, 0, 10 |
| Storage options | 2x M.2 slot (Key M) PCIe/NVMe 4.0 x4, 1x M.2 Slot (PCIe/NVMe 4.0 & SATA), 4x SATA 6Gb/s ports |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA Quadro T400 |
| Discrete graphics card memory | 4 GB |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card Mini DisplayPort ports quantity | 3 |
| Resolution description | Max. 7680 x 4320 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel Z790 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 8.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Mini DisplayPorts quantity | 3 |
| PS/2 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Expansion slots | 1x PCIe 5.0.x16, 2x PCIe x16 (supports x4), 1x PCIe 4.0 x16 (supports x1) |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 5 |
| Product colour | Black |
| Cooling type | liquid |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 10, Windows 11 |
Processor special features
| Specification | Value |
|---|---|
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.6 GHz |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 617 mm |
| Height | 597 mm |
| Weight | 21.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | German |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS PRIME Z890-P WIFI |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
