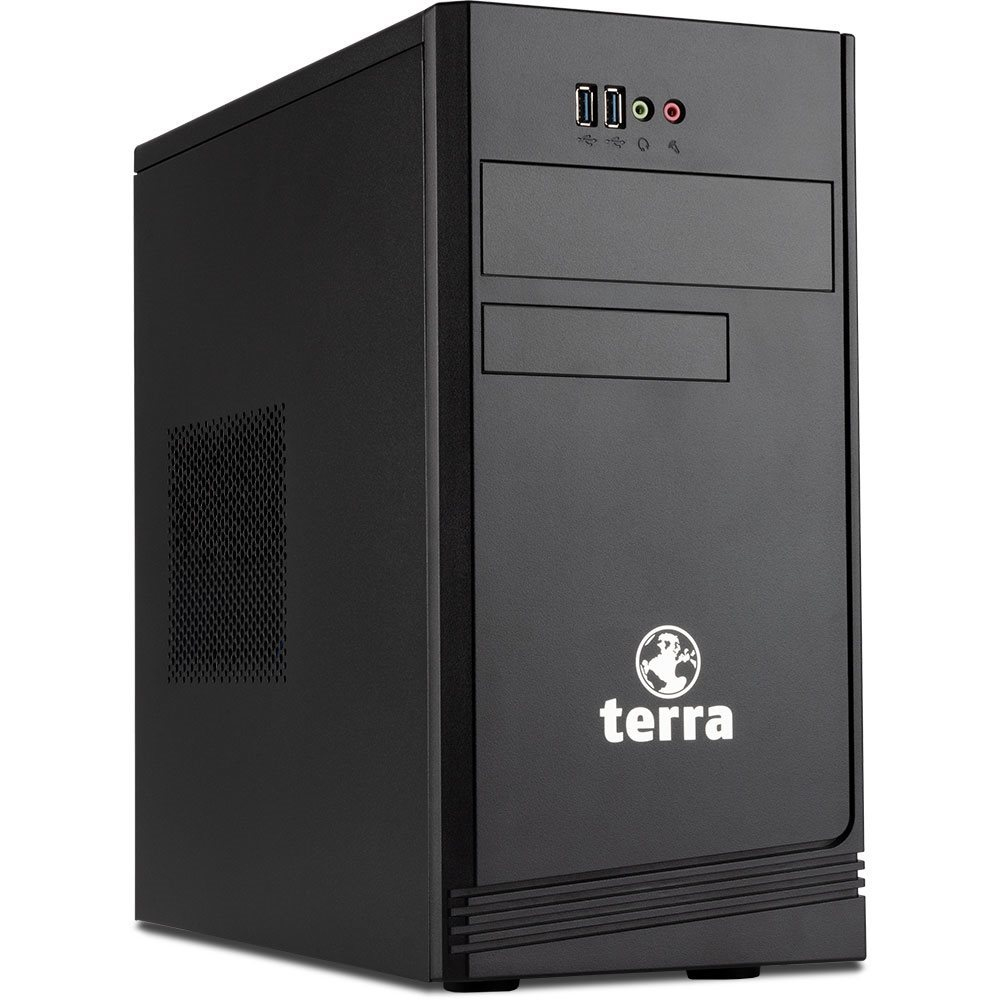

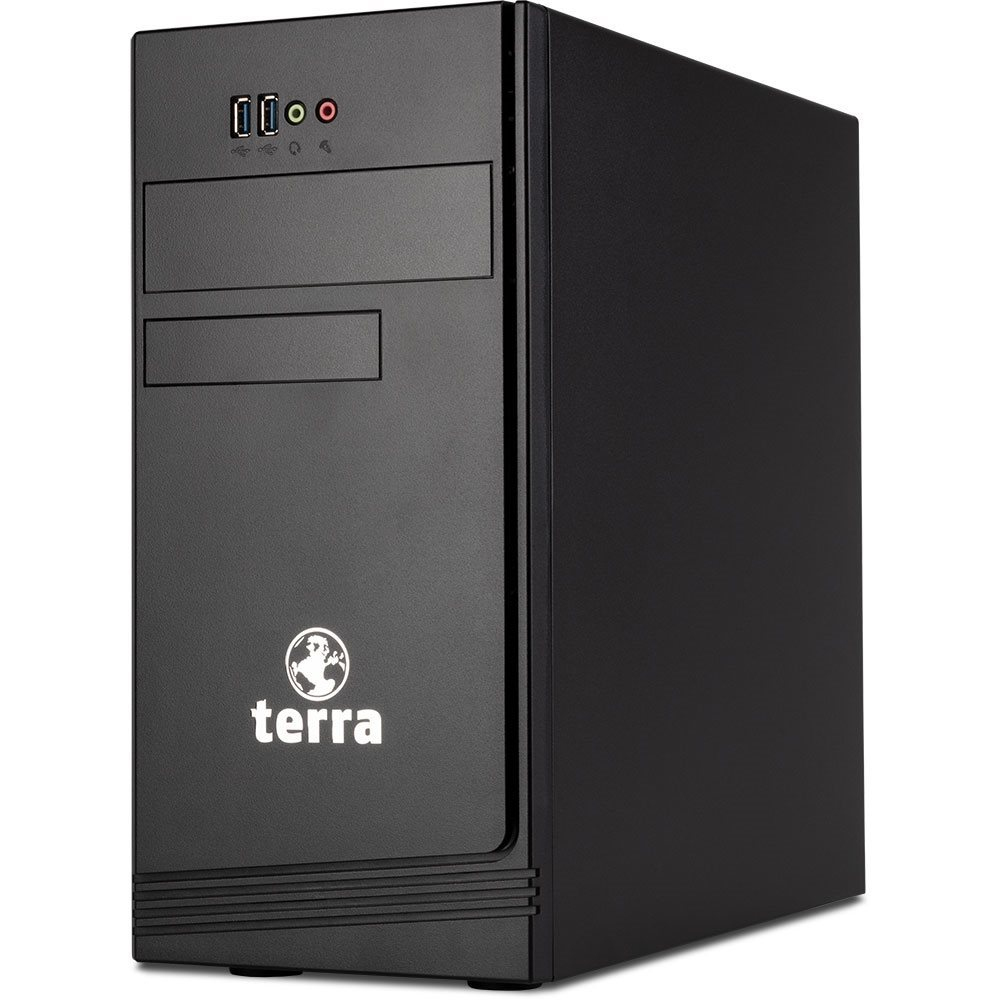

1009940 PC Intel® Core™ i5 i5-12500
8 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Mini Tower Black
Model 1009940EAN 4039407077052
101 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- GraphicsNot available
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 1009940
- Part number
- 1009940
- EAN / UPC
- 4039407077052
- Also known as
- TERRA 1009940 PC Intel® Core™ i5 i5-12500 8 GB DDR5-SDRAM 500 GB SSD Windows 11 Pro Mini Tower Black
Specifications
101 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500 |
| Processor cores | 6 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | No |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| RAID support | Yes |
| RAID levels | 5, 1, 0, 10 |
| Storage options | 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA Raid, no NVMe Raid |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Resolution description | HDMI max. 4096 x 2160 @ 60Hz ¦ DP max. 7680 x 4320 @60Hz ¦ VGA max. 1920x1200 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel B760 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 8.0 channels |
| Sound pressure level | 22.7 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel I219V |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Expansion slots | 1x PCIe 4.0/3.0 x16 slot ¦ 2x PCIe 3.0 x16 slot (@ x1 mode) |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Power supply input voltage | 230 V |
| Power supply input frequency | 50 Hz |
| Power consumption (off) | 0.25 W |
| Power consumption (standby) | 1 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 10, Windows 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 384 mm |
| Height | 375 mm |
| Weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | German |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS PRO B760M-C-CSM ¦ 24-7 ready |
Other features
| Specification | Value |
|---|---|
| Locale | German |
