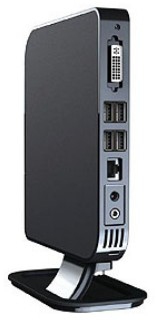

TERRA 1009161 PC Intel Atom® 230

2 GB DDR2-SDRAM 320 GB NVIDIA® ION™ FreeDOS SFF Black

Model 1009161EAN 4039407014293

100 specifications

ProcessorIntel Atom®
Memory2 GB
Storage320 GB
GraphicsNVIDIA® ION™
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Graphics: NVIDIA® ION™
Type: PC
OS: FreeDOS

Brand: TERRA
Category: PCs/Workstations
Model: 1009161
Part number: 1009161
EAN / UPC: 4039407014293
Also known as: TERRA 1009161 PC Intel Atom® 230 2 GB DDR2-SDRAM 320 GB NVIDIA® ION™ FreeDOS SFF Black

Specifications

100 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	230
Processor cores	1
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	533 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom 200 Series
Processor codename	Diamondville
Thermal Design Power (TDP)	4 W
Tcase	85.2 °C
Processor socket	BGA 437
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	12
Stepping	C0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	No
HDD interface	SATA II
HDD speed	5400 RPM
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® ION™
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Motherboard chipset	NVIDIA MCP7A-ION
Audio output channels	2.0 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
DVI port	Yes
DC-in jack	Yes

Power

Specification	Value
Power requirements	100-240V AC 50-60Hz
Power supply	30 W

Design

Specification	Value
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS
Compatible operating systems	Windows XP, Vista, Win7 (32 bit), Linux
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	35635
Processor code	SLB6Z
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	73 mm
Depth	152 mm
Height	205 mm

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Certification	PC2001, EnergyStar, CE, ISO 9001

Other features

Specification	Value
TV tuner integrated	No
