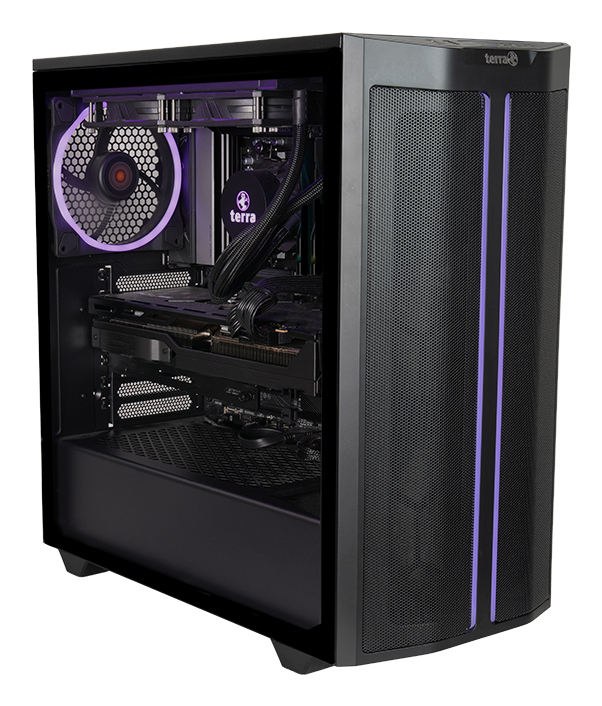

1001385 PC Intel® Core™ i7 i7-13700KF
32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Windows 11 Home Midi Tower Liquid cooling system Black
Model 1001385EAN 4039407084081
112 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 4070
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 4070
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 1001385
- Part number
- 1001385
- EAN / UPC
- 4039407084081
- Also known as
- TERRA 1001385 PC Intel® Core™ i7 i7-13700KF 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Windows 11 Home Midi Tower Liquid cooling system Black
Specifications
112 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700KF |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 3.4 GHz |
| Efficient-core base frequency | 2.5 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Maximum turbo power | 253 W |
| Processor base power | 125 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 6000 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| RAID support | Yes |
| RAID levels | 5, 1, 0, 10 |
| Storage options | 2x M.2_1 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)¦ 2x M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4070 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6X |
| Number of discrete graphics cards | 1 |
| Graphics card Open GL support | Yes |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
| Resolution description | Max. 7680 x 4320 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel Z790 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 8.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 2 |
| HDMI version | 2.1a |
| S/PDIF out port | Yes |
| Number of front audio ports | 1 |
| Number of rear audio ports | 5 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Expansion slots | 1x PCIe 5.0/4.0/3.0 x16, 1x PCIe 4.0 x16 slot (supports x4 mode), 1x PCIe 4.0 x4 slot ¦ 2x PCIe 3.0 x1 |
Power
| Specification | Value |
|---|---|
| Power supply | 850 W |
| Power supply input voltage | 200 - 240 V |
| Power supply input frequency | 50 Hz |
| Power consumption (off) | 0.25 W |
| Power consumption (standby) | 1.9 W |
| 80 PLUS certification | 80 PLUS |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Number of 2.5" bays | 5 |
| Liquid cooling system | Yes |
| Product colour | Black |
| Cooling type | liquid |
| Viewing window | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Compatible operating systems | Windows 10, Windows 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 450 mm |
| Height | 463 mm |
| Weight | 11.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
| Keyboard backlit | Yes |
| Keyboard backlit colour | Various |
| Keyboard layout | QWERTZ |
| Keyboard language | German |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS TUF GAMING Z790-PLUS WIFI |
Other features
| Specification | Value |
|---|---|
| Locale | German |
