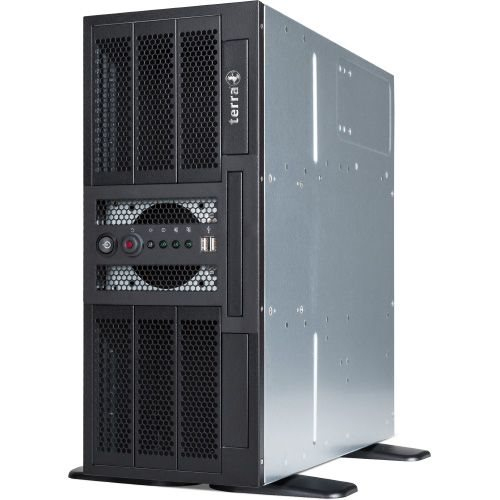

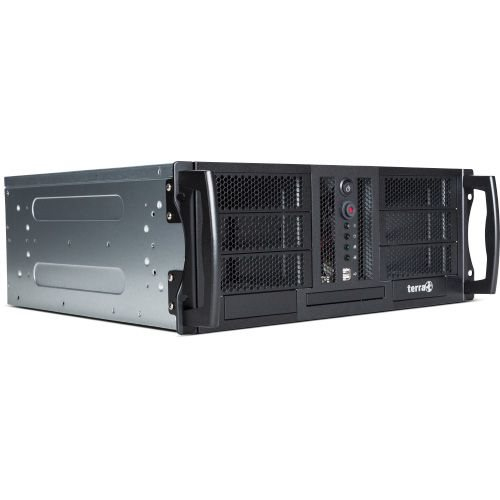

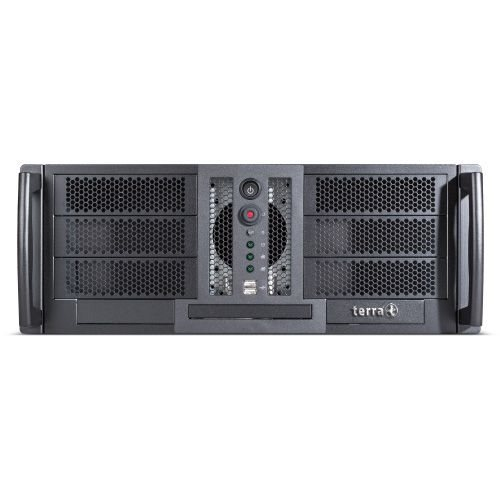

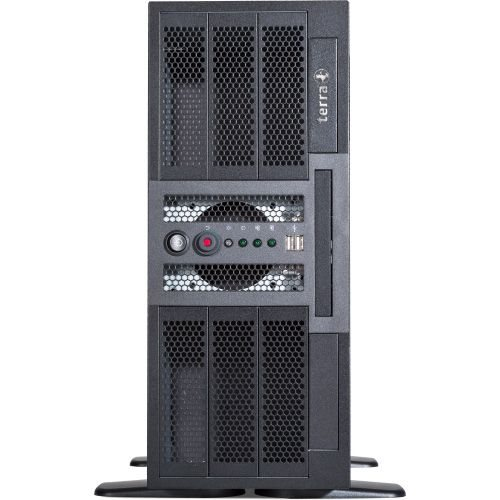

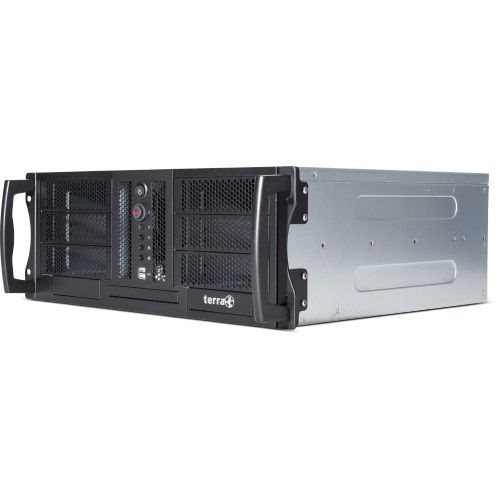

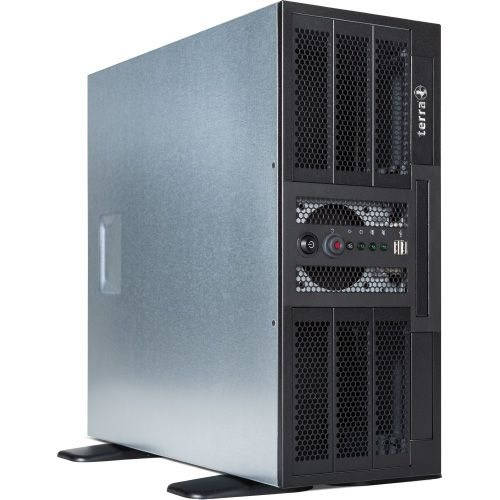

1000989 PC/workstation Intel® Core™ i7 i7-14700
16 GB DDR5-SDRAM 480 GB SSD Windows 11 Pro Rack-mounted chassis Black
Model 1000989EAN 4039407079308
92 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage480 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 480 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 1000989
- Part number
- 1000989
- EAN / UPC
- 4039407079308
- Also known as
- TERRA 1000989 PC/workstation Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 480 GB SSD Windows 11 Pro Rack-mounted chassis Black
Specifications
92 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Maximum turbo power | 154 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives supported | 7 |
| Total SSDs capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
| RAID support | Yes |
| RAID levels | 5, 1, 0, 10 |
| Storage options | 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10¦ • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Resolution description | Display Port 1.2 bis 4096x2160 @ 60Hz |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Industry |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 6.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel® I219-LM, Intel I225-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 3 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 6 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Expansion slots | 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x8 @ x4 Gen4 "open slot", 1x PCIe x8 @ x4 Gen3, 2x PCIe x1 Gen3, 1x PCI 32Bit (via PCI to PCIe Bridge) |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Placement supported | Horizontal |
| Number of 5.25" bays | 6 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 10, Windows 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 445 mm |
| Height | 176 mm |
| Weight | 15.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Cables included | AC |
| Manual | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Kontron K3851-R ¦ 24-7 ready ¦ Made in Germany |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
