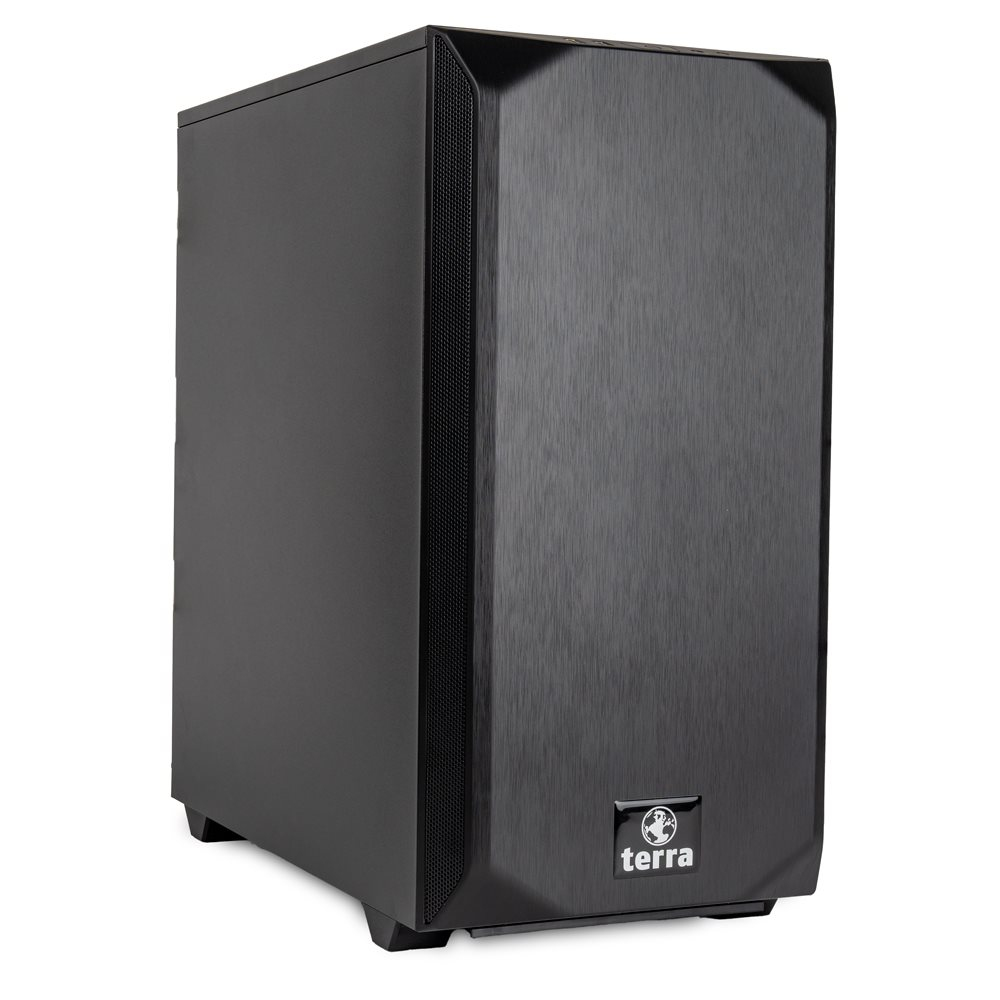

1000911 workstation AMD Ryzen™ 5
7600X 32 GB DDR5-SDRAM 1 TB SSD NVIDIA® Quadro® P2000 Windows 11 Pro Tower Black
Model 1000911EAN 4039407082087
87 specifications
- ProcessorAMD Ryzen™ 5
- Memory32 GB
- Storage1 TB
- GraphicsNVIDIA® Quadro® P2000
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- AMD Ryzen™ 5
- Memory
- 32 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® Quadro® P2000
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- TERRA
- Category
- PCs/Workstations
- Model
- 1000911
- Part number
- 1000911
- EAN / UPC
- 4039407082087
- Also known as
- TERRA 1000911 workstation AMD Ryzen™ 5 7600X 32 GB DDR5-SDRAM 1 TB SSD NVIDIA® Quadro® P2000 Windows 11 Pro Tower Black
Specifications
87 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor model | 7600X |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 5.3 GHz |
| Processor frequency | 4.7 GHz |
| Processor cache | 32 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
| Processor socket | Socket AM5 |
| Processor base power | 105 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 8 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 5, 1, 0, 10 |
| Storage options | 4x SATA-3 (6 Gb/s) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P2000 |
| Discrete graphics card memory | 12 GB |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
| Resolution description | Digital Max Auflösung: 5120x2880 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Business |
| Motherboard chipset | AMD TRX50 |
| Audio output channels | 6.0 channels |
| Sound pressure level | 25.9 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel I226-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Expansion slots | 1x PCIe x16 4.0 (PCIEX16) ¦ 1x PCIe 4.0 x16 (PCIEX4) ¦ 1x PCIe 3.0 x16 (PCIEX2) |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (standby) | 2 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 4 |
| Number of 2.5" bays | 5 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 10, Windows 11 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 450 mm |
| Height | 463 mm |
| Weight | 22.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Cables included | AC |
| Manual | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Gigabyte X670 Aorus Elite AX |
Other features
| Specification | Value |
|---|---|
| Locale | International repository |
