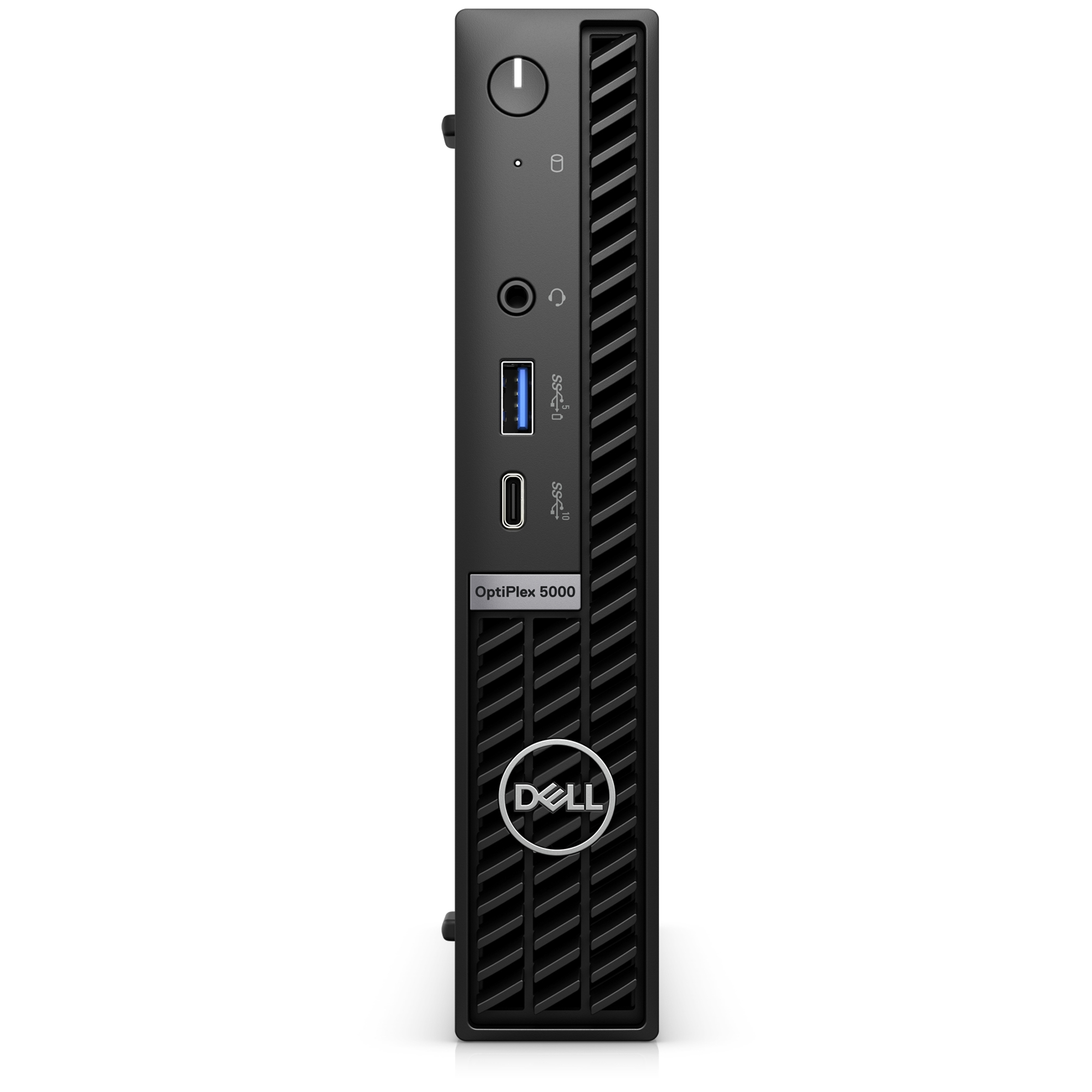

Dell OptiPlex 5000
Model Dell OptiPlex 5000Part no. D-5000-MU-T001EAN 5711603072879
67 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 11 Pro
- Brand
- T1A
- Category
- PCs/Workstations
- Model
- Dell OptiPlex 5000
- Part numbers
- D-5000-MU-T001, D-GX5000-MU-T101, D-GX5000-MU-T102, D-5000-MU-T102
- EAN / UPC
- 5711603072879, 5711603088054, 5711603088160, 5711603089402
- Also known as
- T1A Dell OptiPlex 5000 Intel® Core™ i7 i7-12700T 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black
Specifications
67 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700T |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 3 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Maximum turbo power | 99 W |
| Processor base power | 35 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| PowerShare | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | MFF |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Refurbished | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Non-operating shock | 105 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
